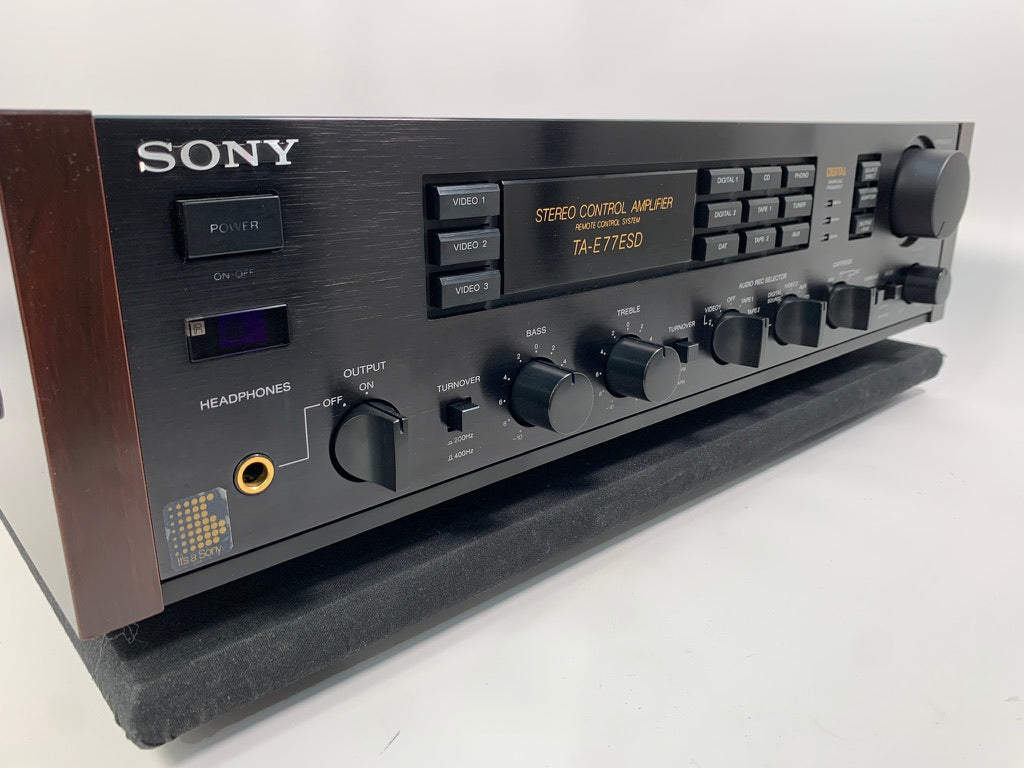

SONY TA-E77ESD PREAMPLIFIER W/REMOTE CONTROL

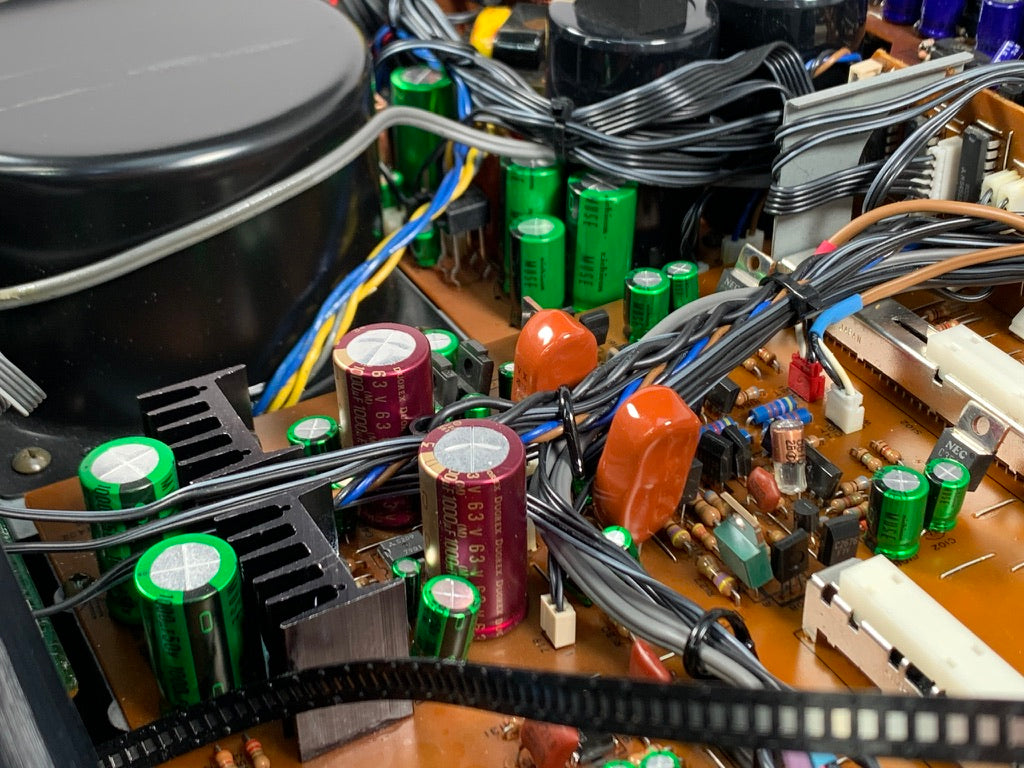

From Sony's ES line, we have the TA-E77ESD Preamplifier. This was Sony's top of the line preamp when it was released. The build quality of the unit is quite impressive, using only premium components. It has not only the ability to play a multitude of sources, but it also has a great phono preamp section. On our bench, we cleaned all switches and potentiometers, and fully tested the unit, where it performed flawlessly. A sweet sounding preamp, we loved having it on our bench and in our listening room. Comes with a Sony RM-U203 remote control for your convenience. The remote control is in good physical condition, and perfect working condition.

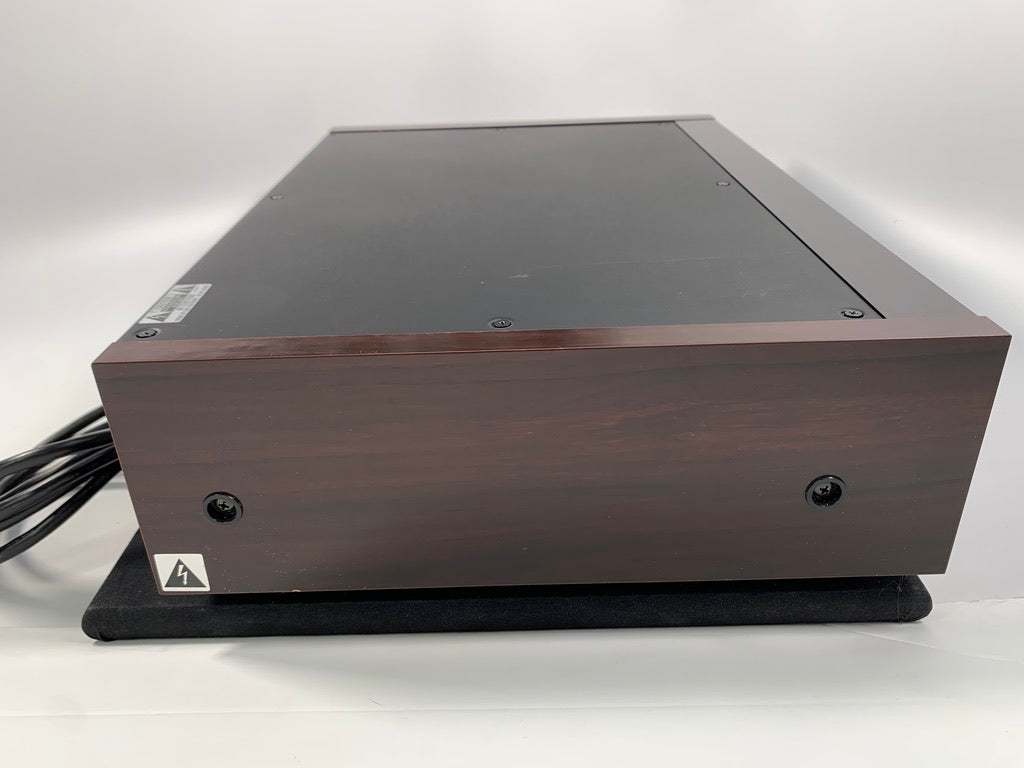

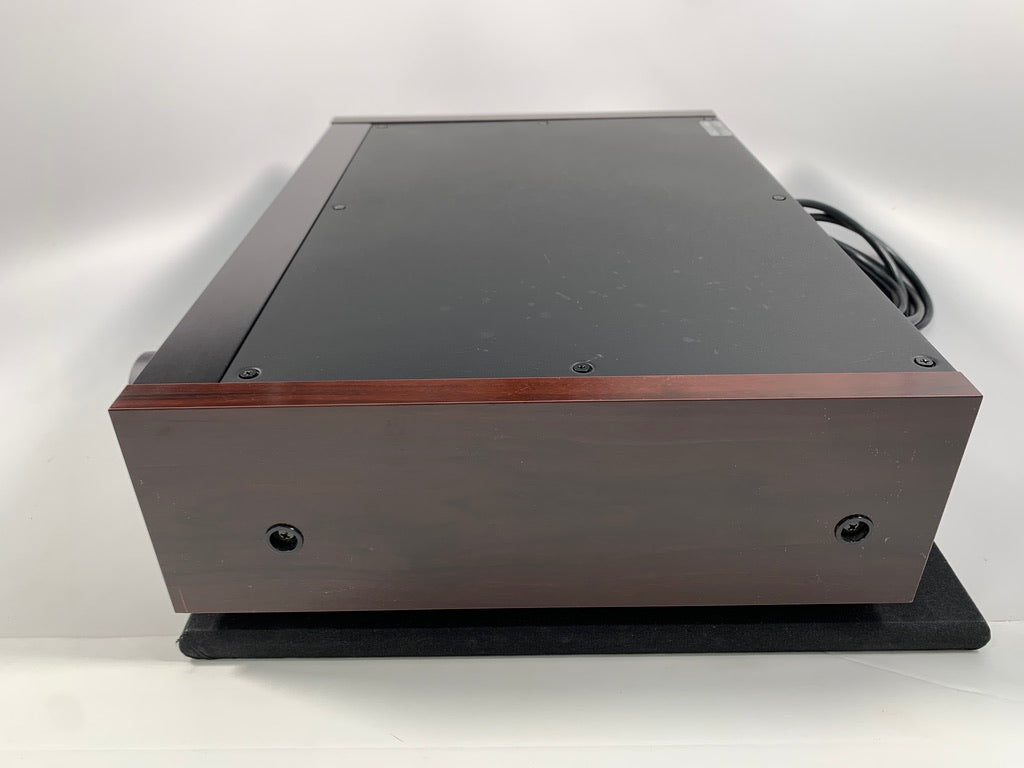

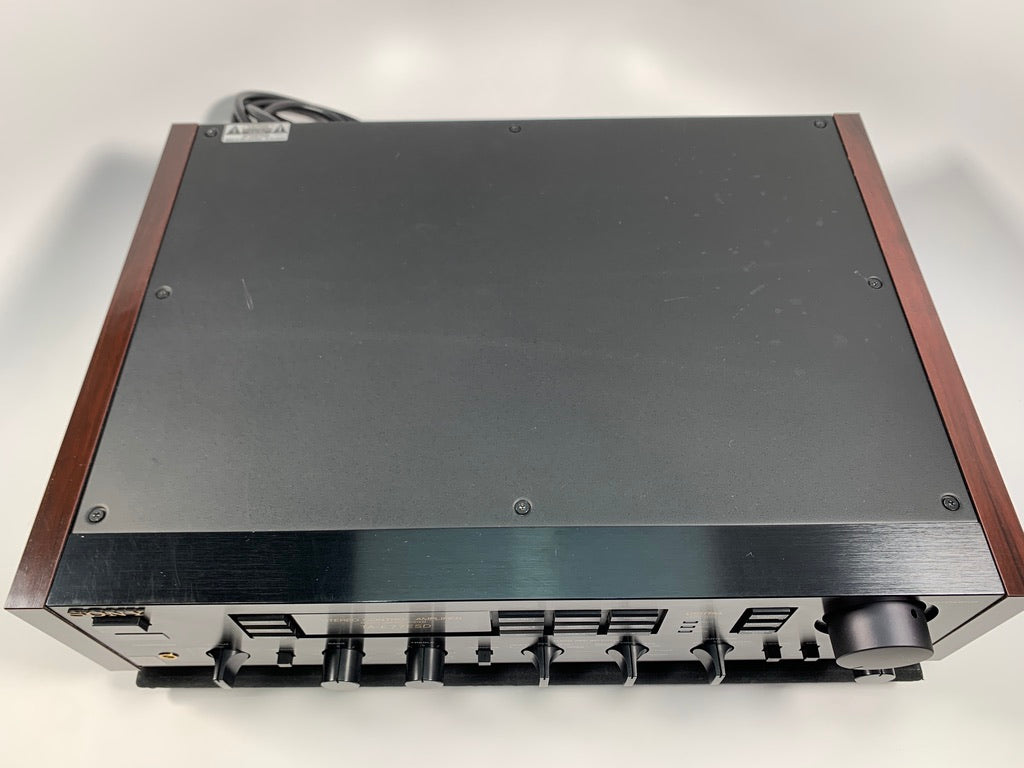

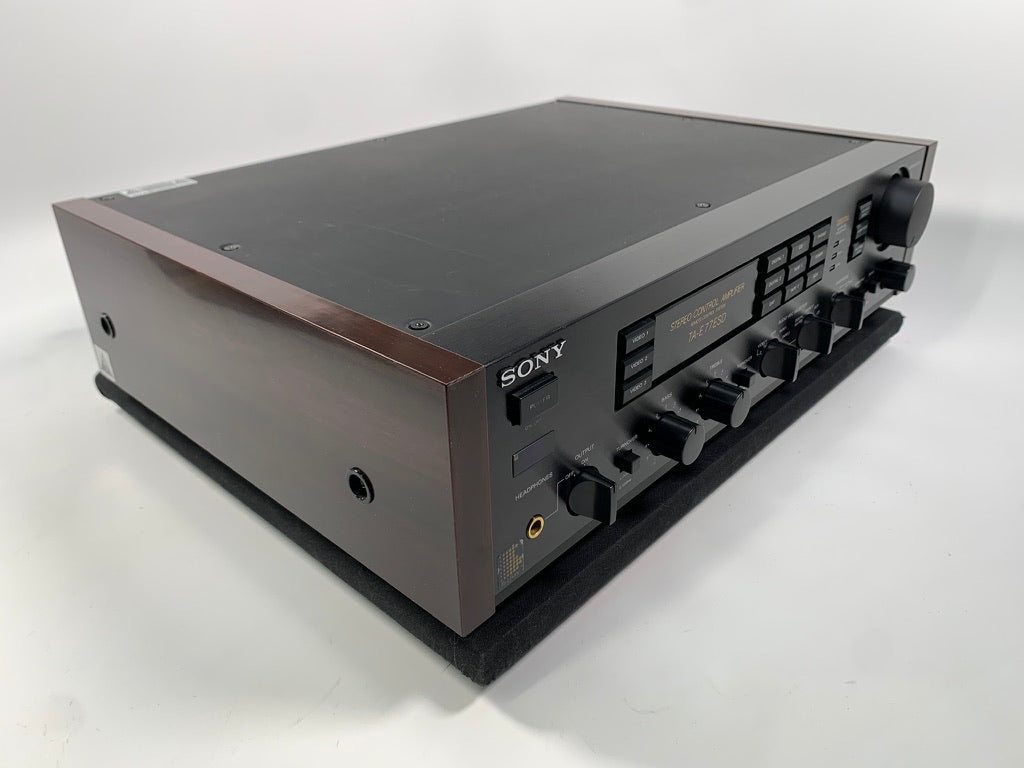

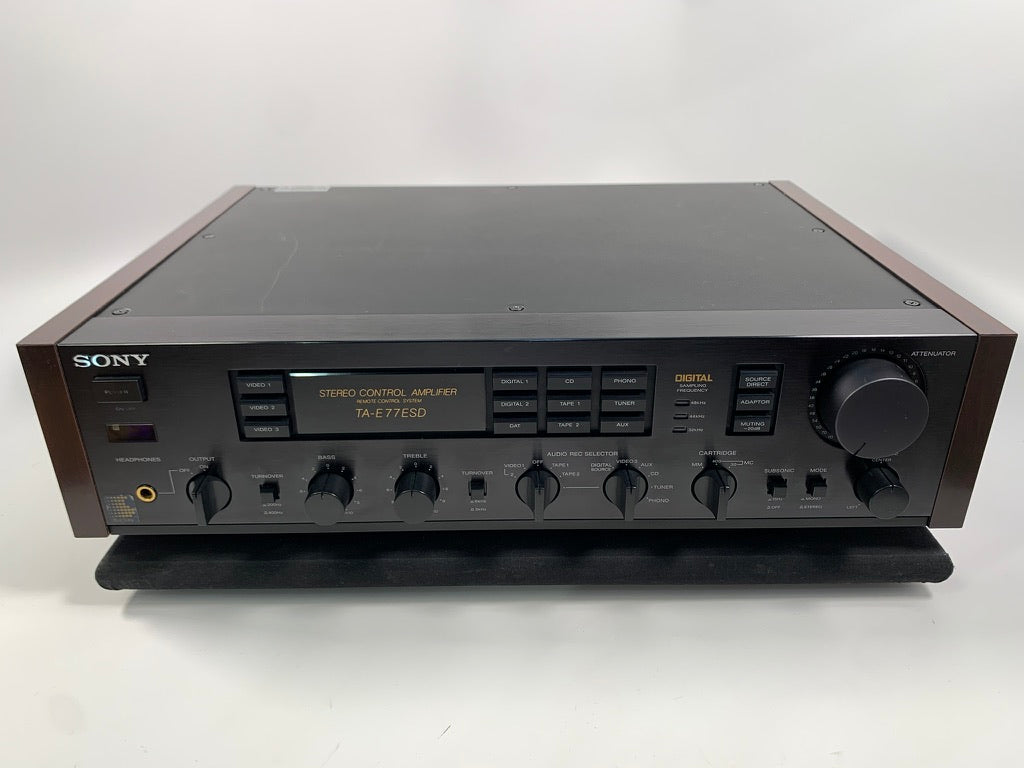

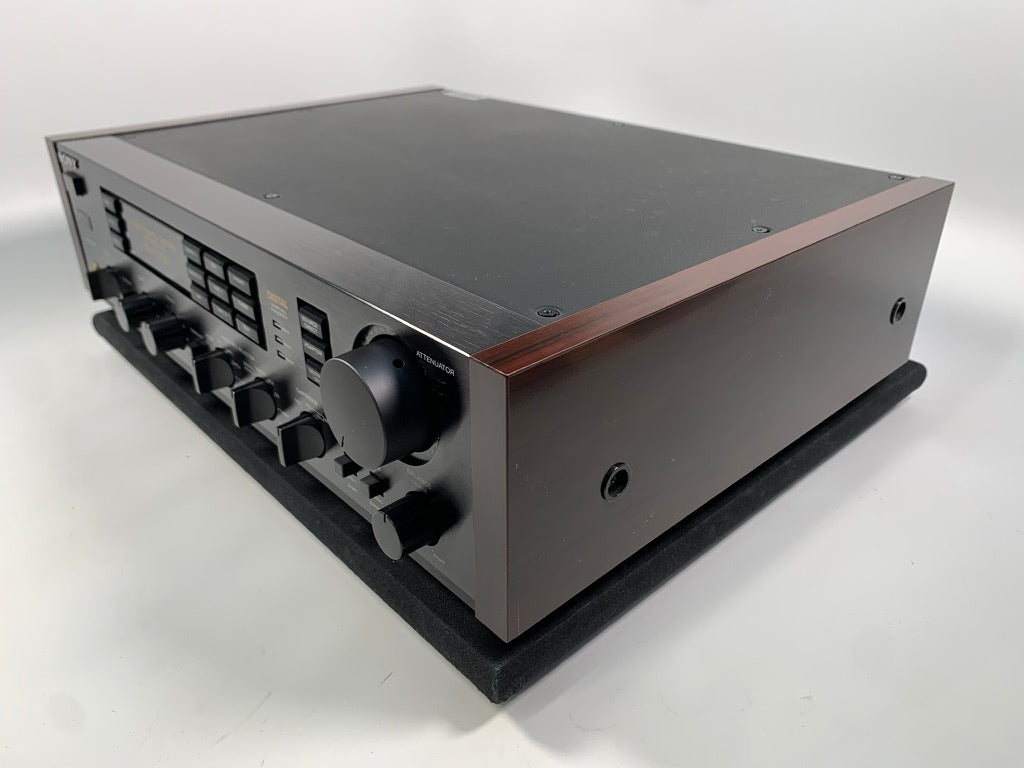

The condition of the unit is very good, with some scuffs and light scratches on the top of the unit. There are some light blemishes on the wood side panels. The faceplate is in very good condition, the only notable sign of wear is on the power button, as some of the writing has rubbed off.
The preamp comes with the original owner's manual and the Sony RM-U203 remote control. We include free shipping to the lower 48 in the United States. The preamp will be packed with great care so it will arrive to the new owner safely. We use heavy duty boxes and and combination of instapak and or polystyrene foam, strapping, and water activated tape.
TA-E77ESD Specs:
Type : Low noise FET high gain NFB type equalizer amplifier
passive type direct tone controls
Dual d/a converters with 4fs digital filter
Digital inputs : 3x digital coaxial
Analogue inputs : 2x Tape
1x CD
1x Tuner
1x Aux
1x Phono
+ Adaptor IN
Digital output : 1x digital coaxial
Analogue outputs : 2x tape
1x DAT (analog)
Audio/Video IN : 1x Adaptor OUT
Audio/Video OUT : 2x Pre-OUT
3x A+V (composite)
2x S-Video
2x A+V (composite)
2x S-Video
Digital frequency response : 5Hz...20Khz (±0,5dB at 44.1Khz)
Digital THD : < 0,004%@1Khz (44.1Khz)
Analogue frequency response : 3Hz...300Khz (lines)
3Hz...300Khz (-3dB, adaptor In)
RIAA ±0,2dB (MM)
Inputs sensitivity : 150mV / 50kOhm (lines)
0,17mV / 1kOhm (MC 40 Ohm)
2,5mV / 50kOhm (MM)
Maximum input : 9mV (MC)
150mV (MM)
S/N ratio : 105dB (lines)
83db (MC, 0,5mV input)
95dB (MM, 5mV input)
Residual noise : < 10mV (IHF-A)
Outputs : 150mV / 1kOhm (Rec/Video/DAT/Adaptor OUT) [?]
0,45mV (headphones)
1,5V / 45 Ohm nominal (pre OUTs)
Bass control : +3,5 / -4dB @200Hz
+7 / -6dB @400Hz
Treble control : +7 / -7,5dB @3Khz
+3,5 / -3,5dB @5Khz
Subsonic filter : 6dB/octave below 15Hz
PC : 30W
Dimensions : 47 x 13 x 37cm
Weight : 13kg.
