Rotel RMB-1075 5 Channel Amplifier Black Version
For sale, we have a fine example of the Rotel RMB-1075 Five Channel Amplifier. Rated at 120 Watts per channel at 8 Ohms, the amplifier is in perfect working order. Physically, the unit is in excellent condition, with only minor blemishes. There are no dents or deep scratches, as the amp was well cared for.
On our bench, we opened the amp where it passed our visual inspection. Capacitors looked good with no bulging or signs of leakage. Resistors showed no signs of cracking or overheating, and the transistors showed no signs of damage. We then tested the amp using our Sencore PA81 amplifier analyzer. We ran a 1k sine wave into the amp, and on our scope each channel showed a clean wave. The amp easily tested clean at 120 watts per channel. With the amp testing as it should, we then ran the unit in our house system for about a week testing all five channels. It's a great sounding, amp. We have had quite a few Rotel amps come through our shop, and we love this era of production.

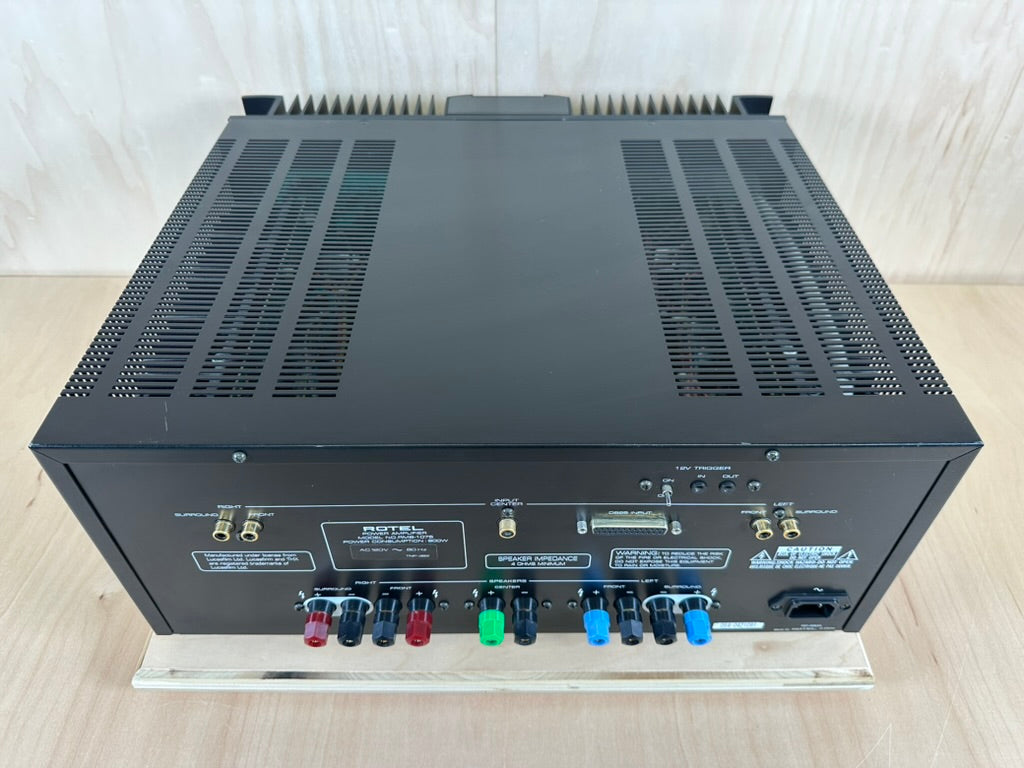

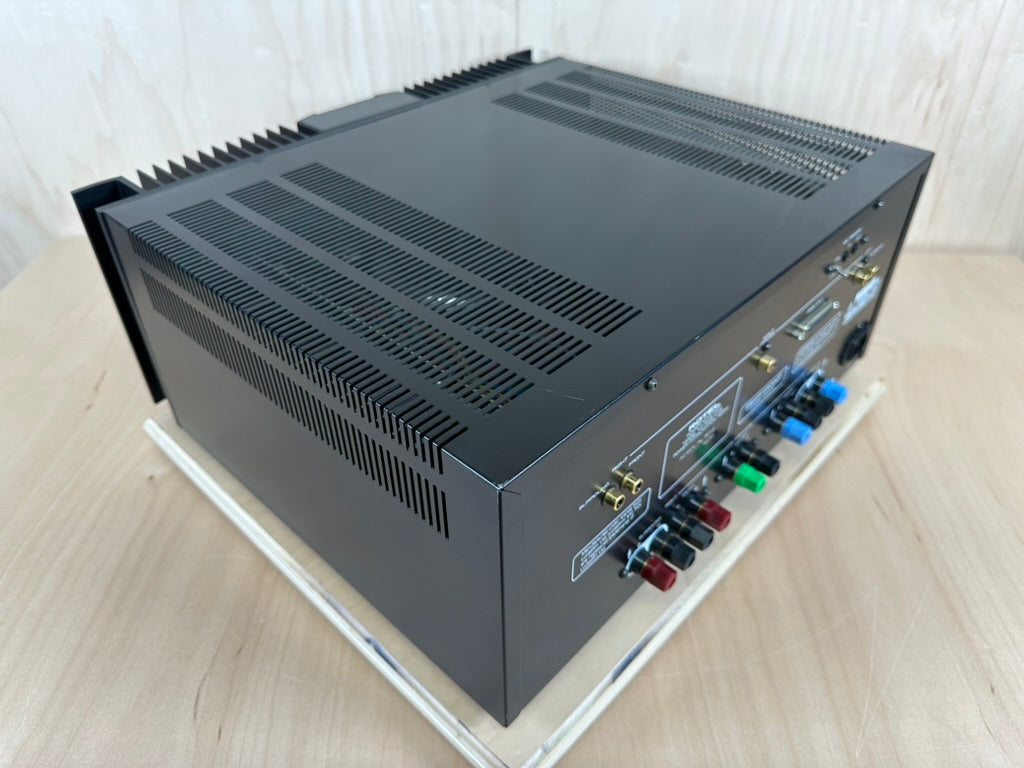

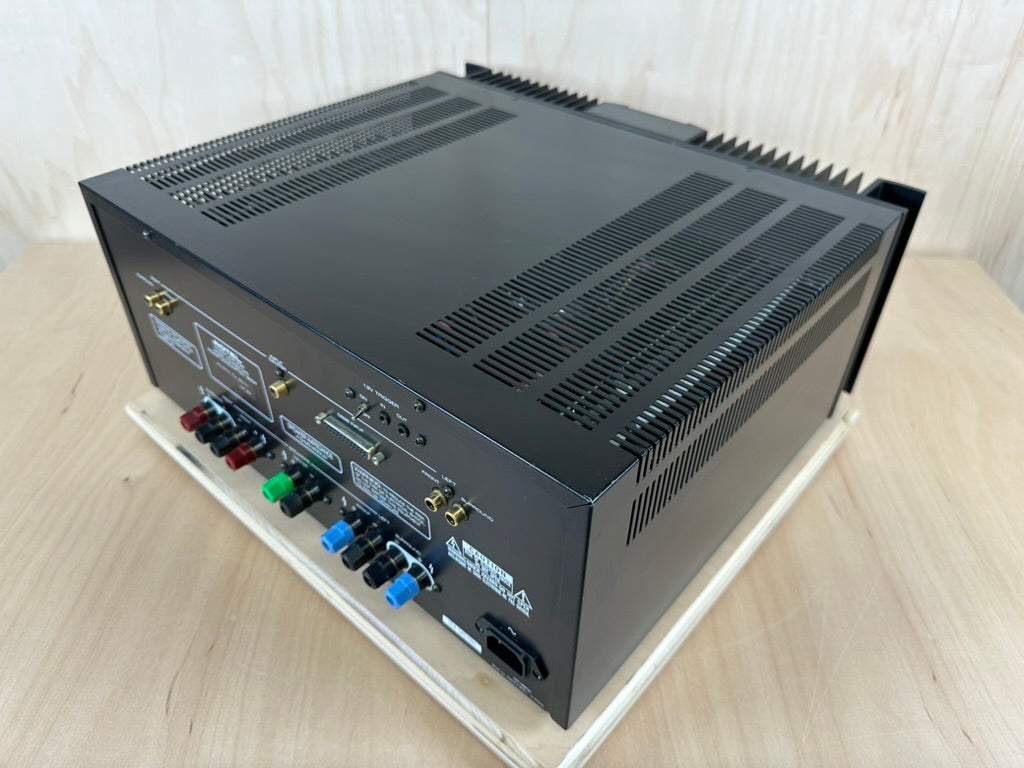

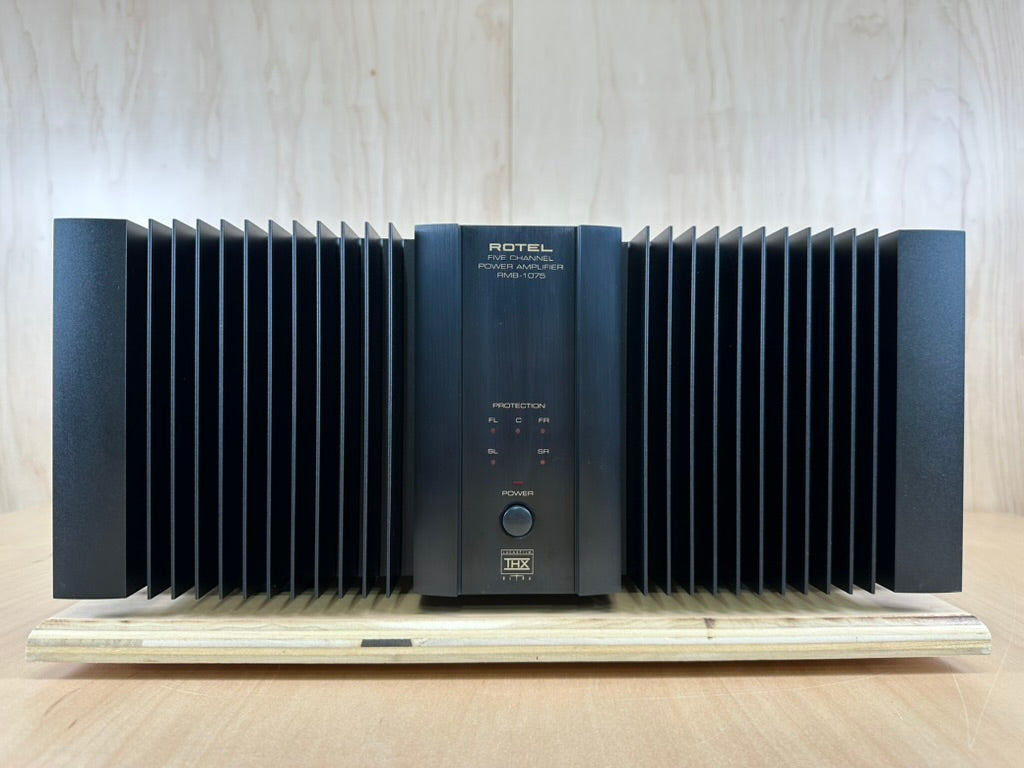

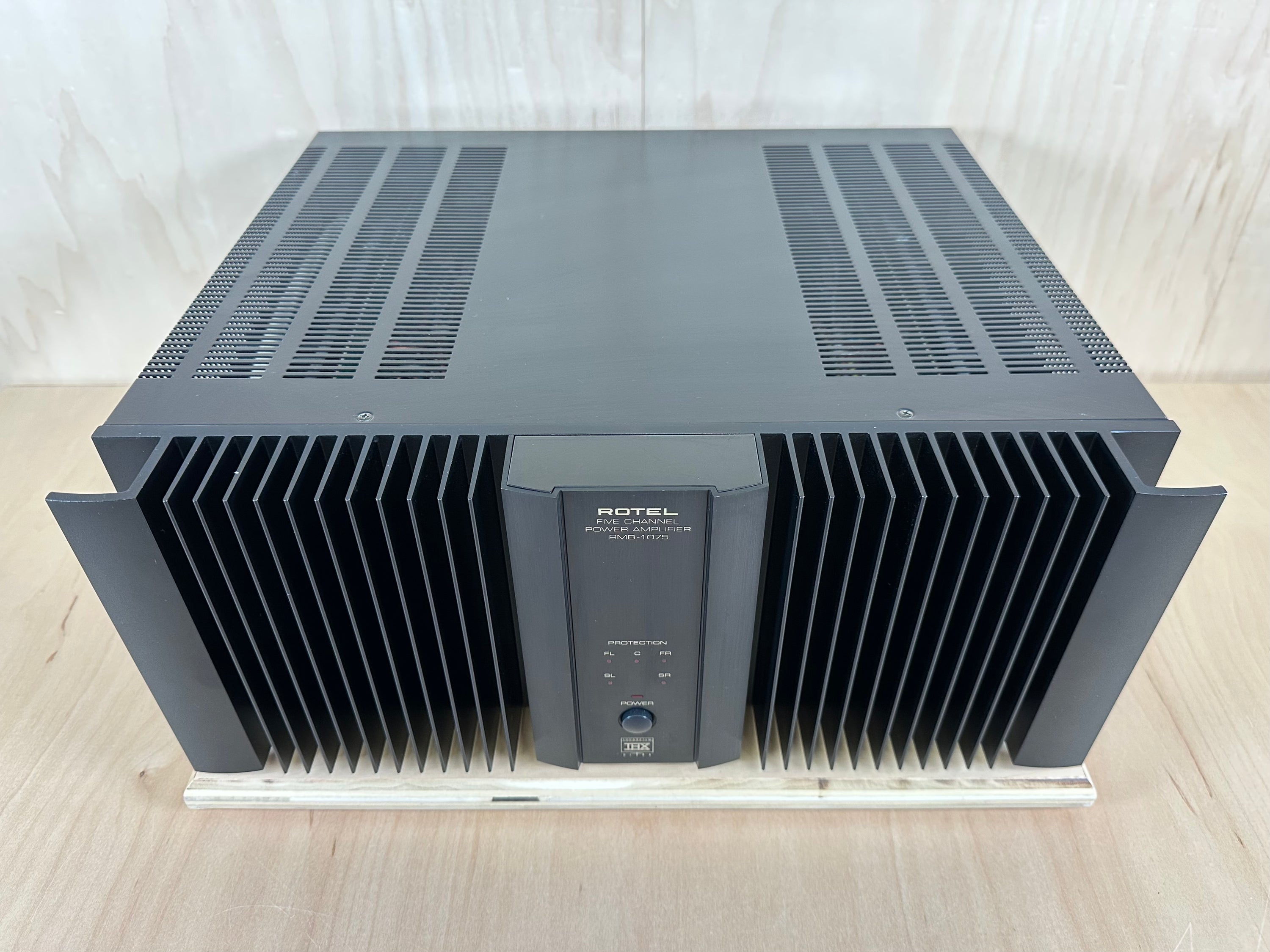

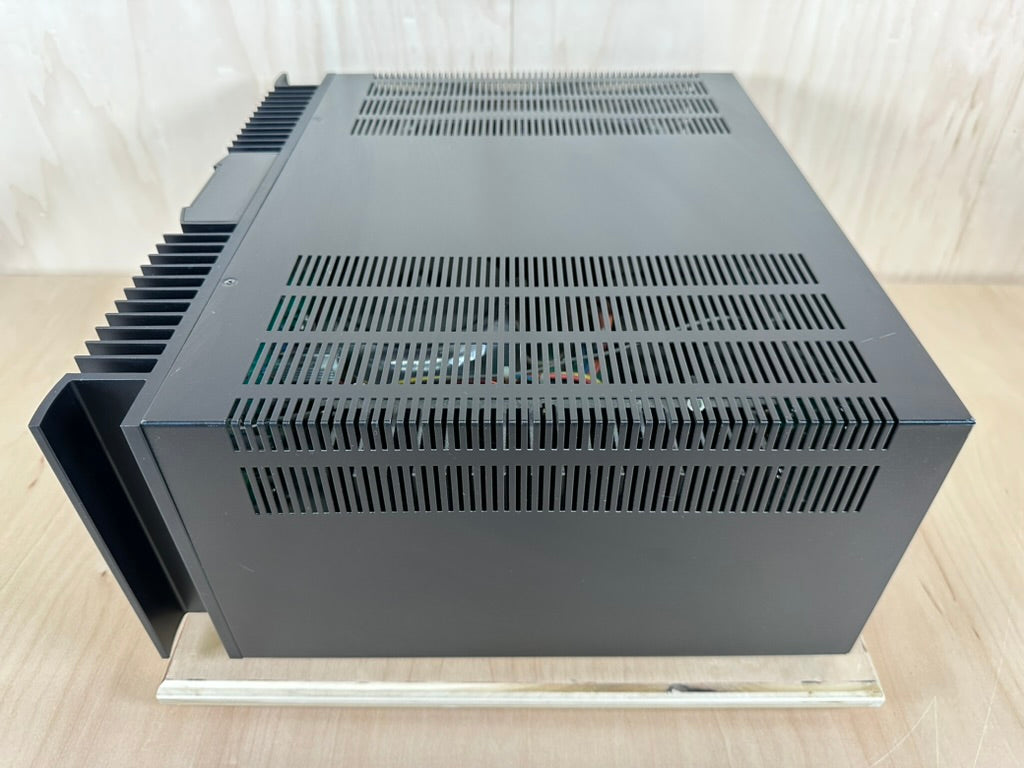

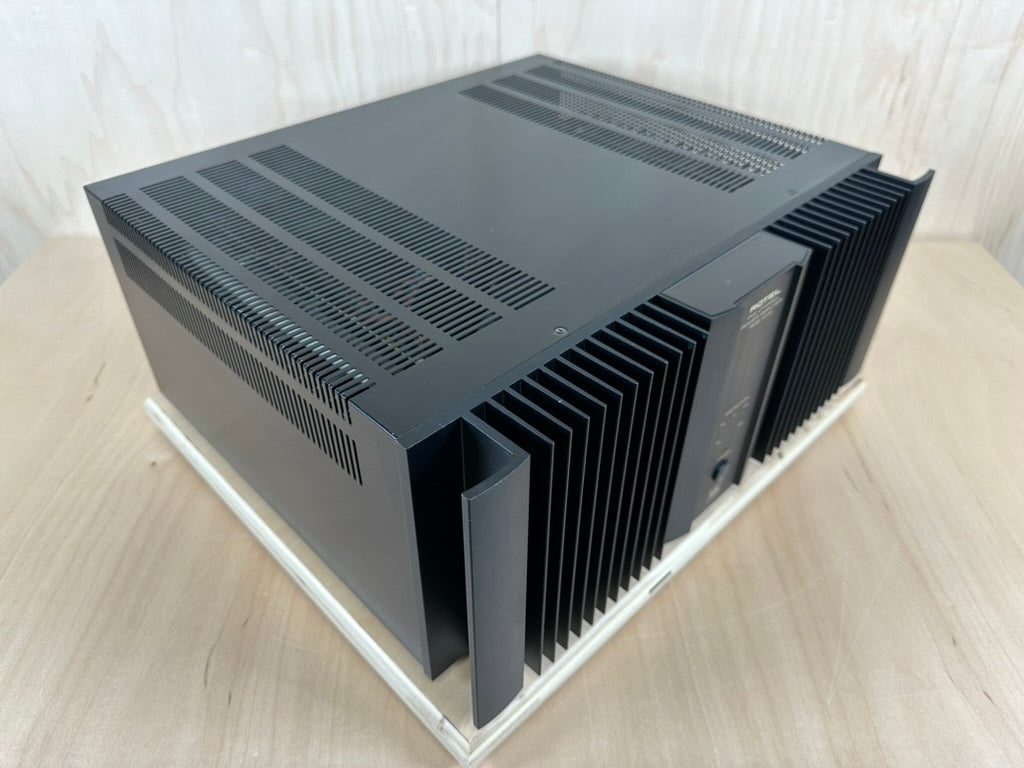

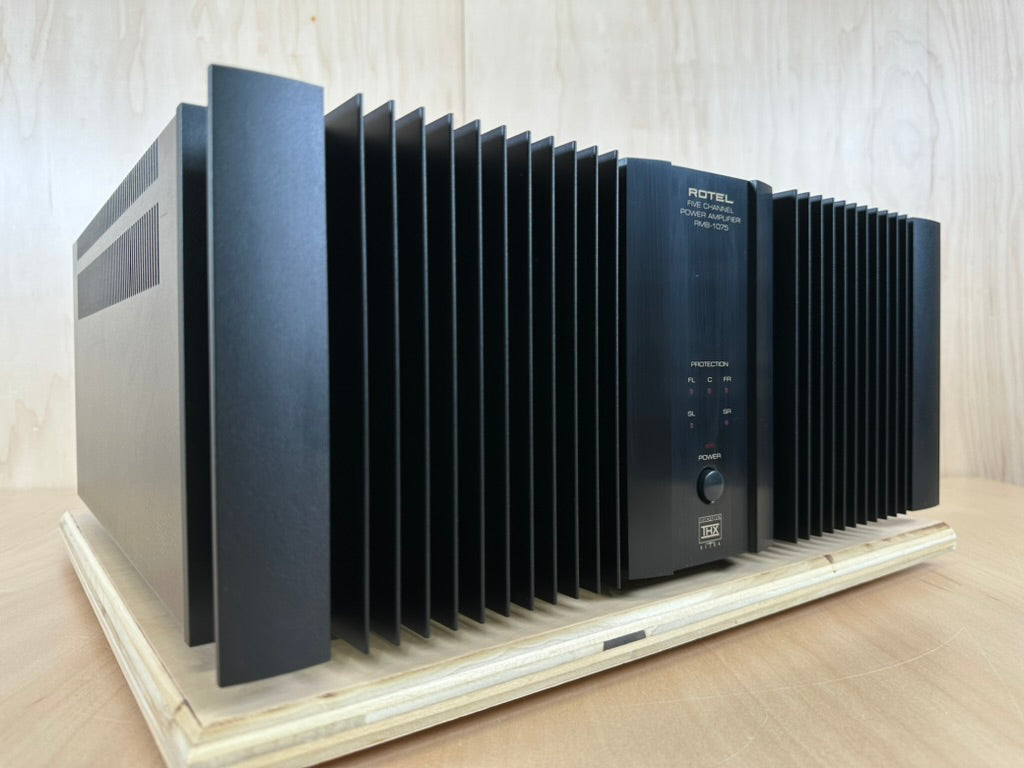

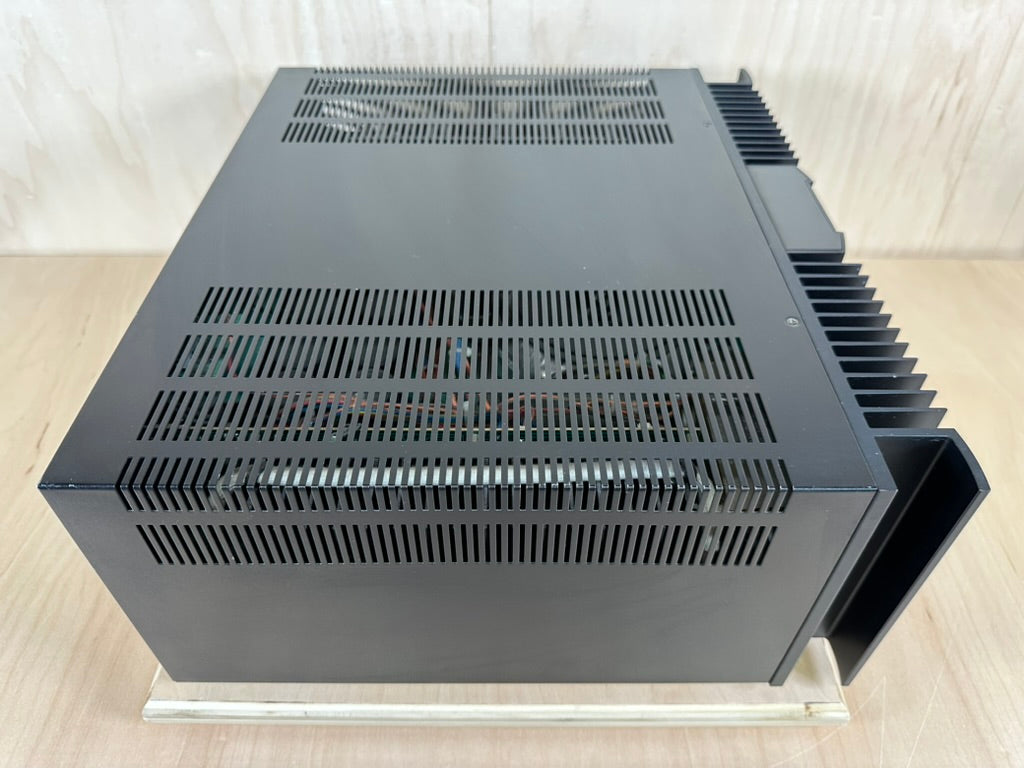

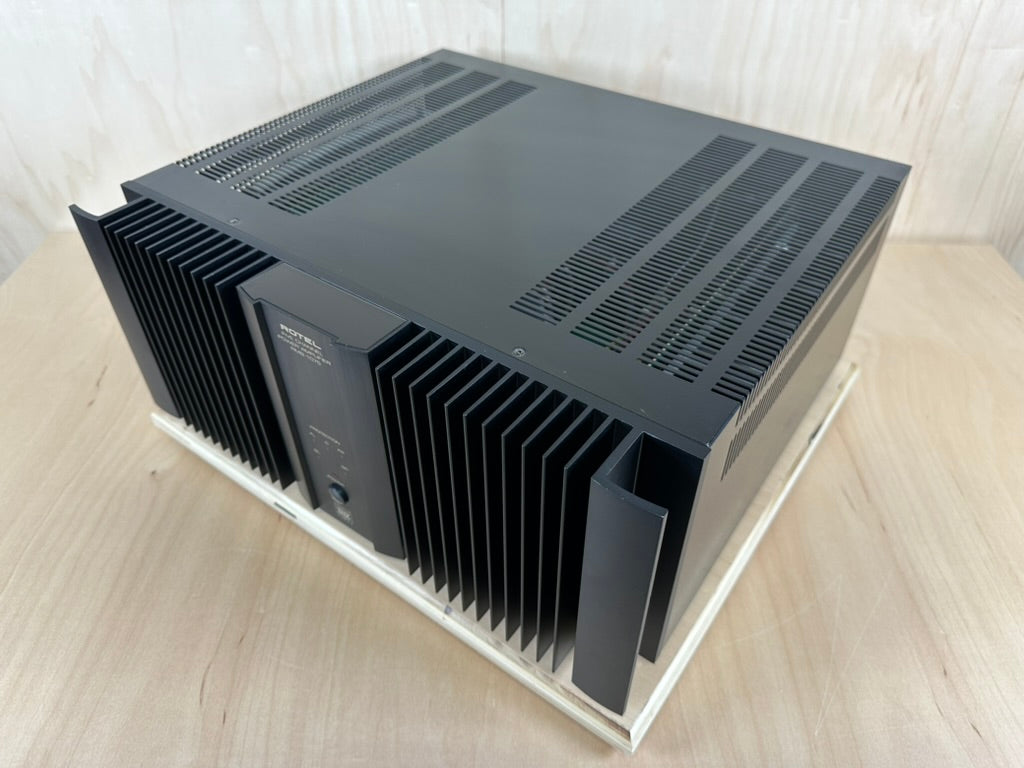

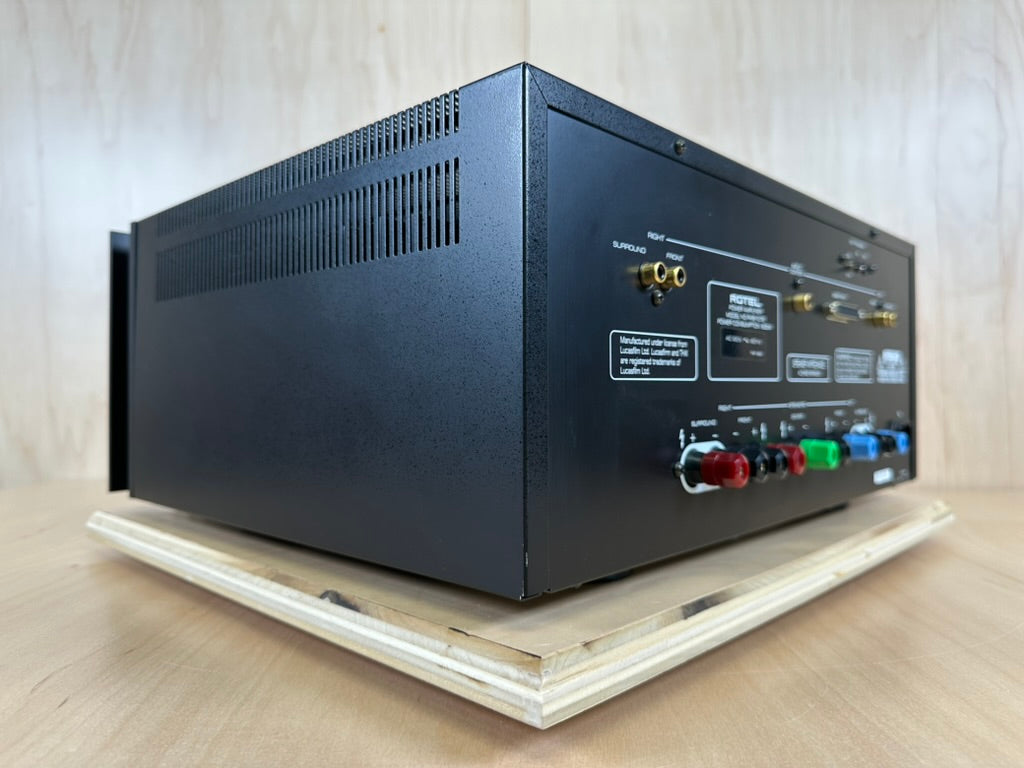

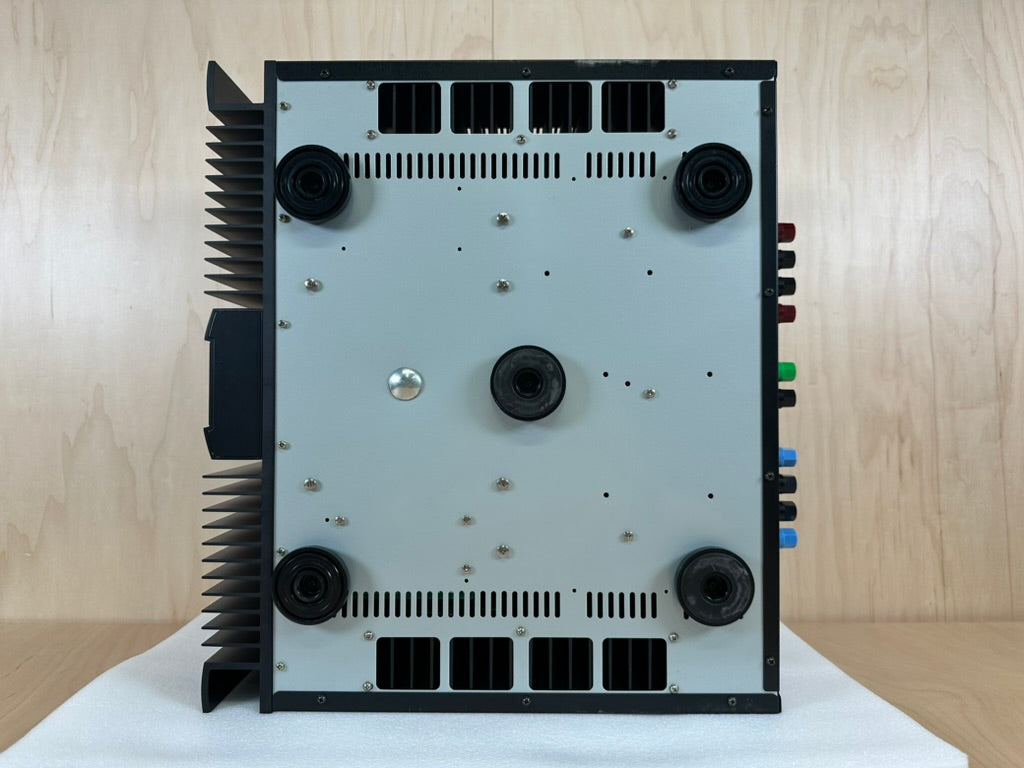

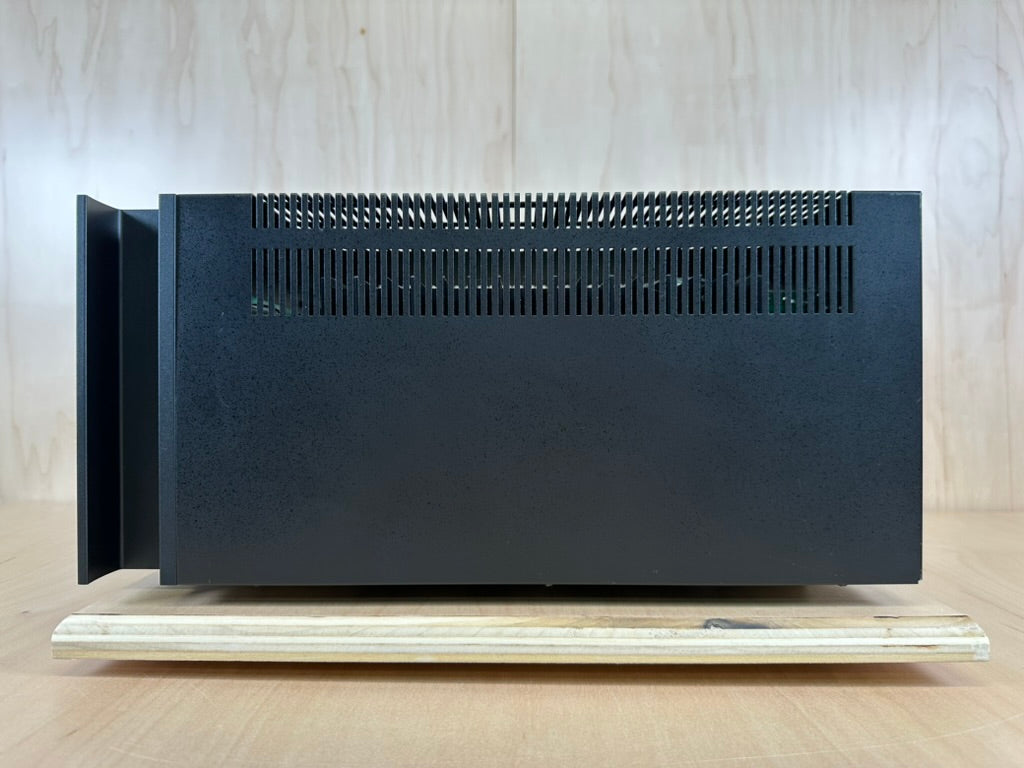

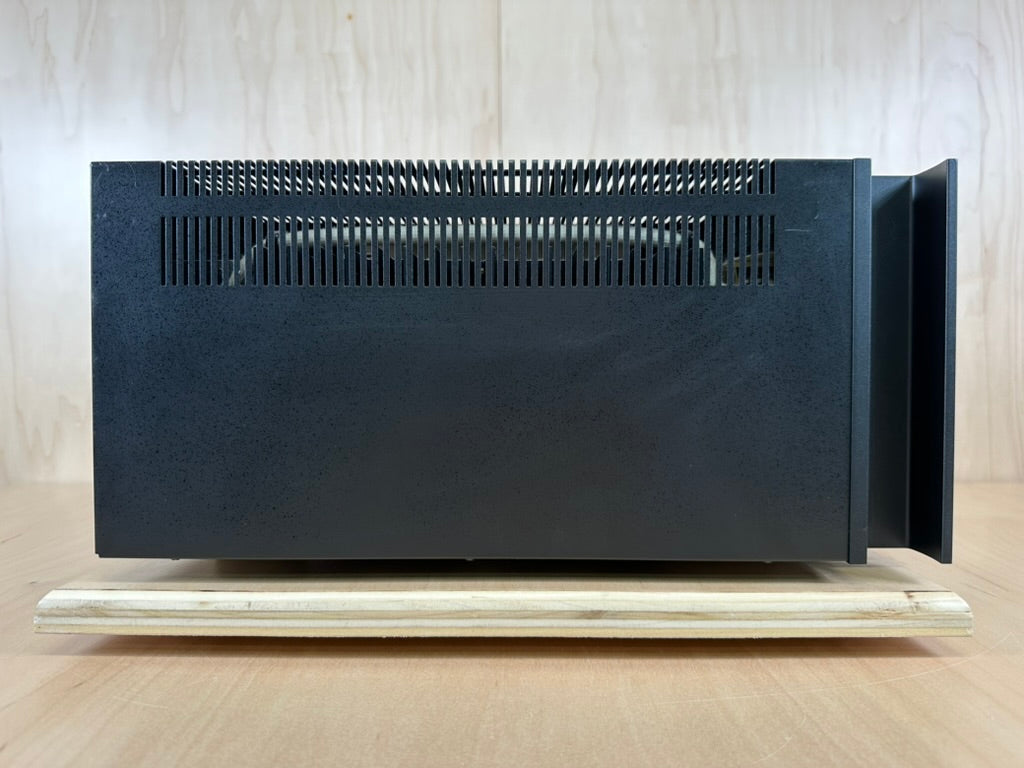

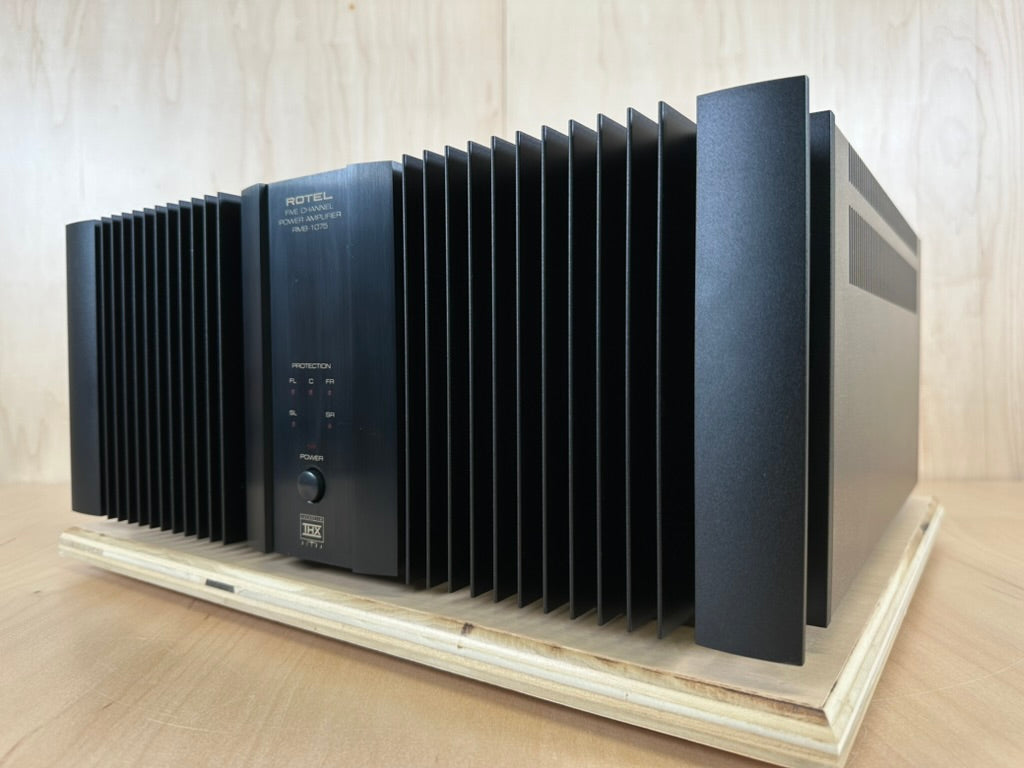

See pictures for further details on the physical condition of the RMB-1075
We don't have the original box for this unit, but we take packaging and shipping seriously. We spare no expense and use heavy duty boxes, several inches of polyethylene foam on all sides of the unit, and use water activated, fiber reinforced tape on all seams.
From Rotel:
"This multi-channel power amplifier delivers 120 watts (all channels driven), thanks to a power supply composed of a generous 1,500 VA toroidal transformer and eight 10,000 µf British-made Slit Foil capacitors. 20 output devices, each of which is rated for 130 watts and 15 amperes of current capability, make full use of the supply's potential.
The RMB-1075 's generous headroom and state of the art signal-to-noise measurements ensure unsullied reproduction of the most dynamic as well as the most delicate sonic nuances.

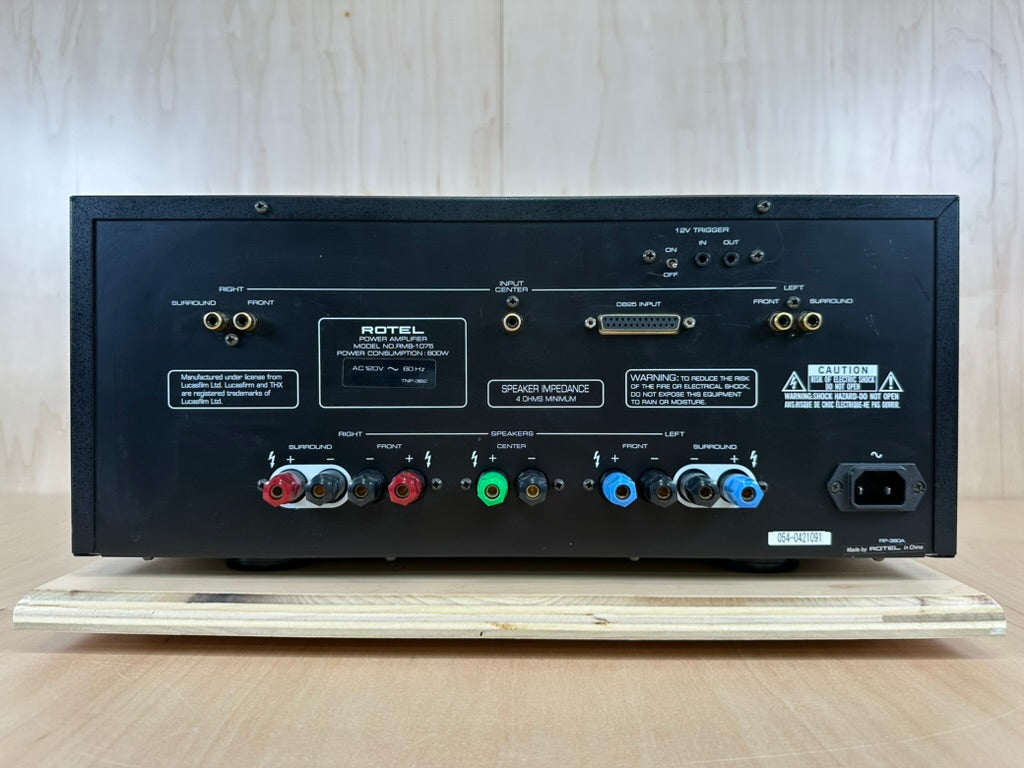

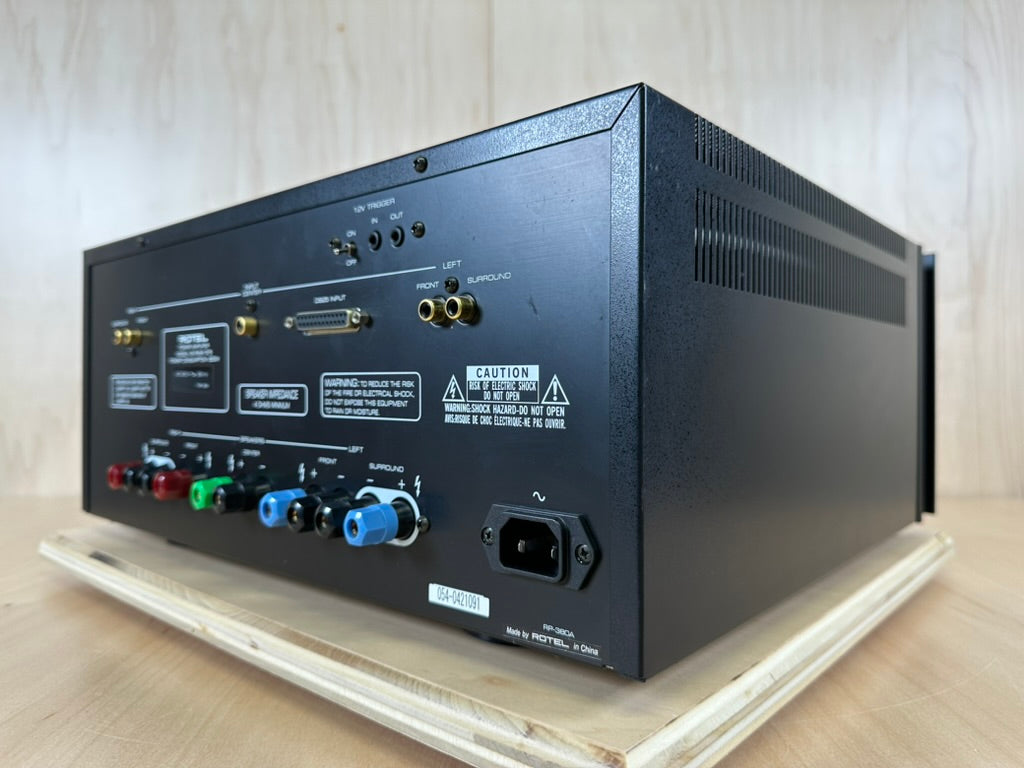

Complete with gold plated RCA and DB-25 input connectors, the RMB-1075 is ideally suited for either home theater applications or bi-amped systems optimized for music reproduction. Separate 12 volt "trigger " input and output jacks make this amplifier well suited for fully integrated systems with total remote control capability."
We don't have the original box for this unit, but we take packaging and shipping seriously. We spare no expense and use heavy duty boxes, several inches of polyethylene foam on all sides of the unit, and use water activated, fiber reinforced tape on all seams.
Specifications
Continuous Power Output (20-20 kHz, < 0.03%) 120 watts/ch into 8 ohms
Dotal Harmonic Distortion (20Hz-20kHz, 8 ohms) < 0.03%
Intermodulation Distortion (60 Hz : 7 kHz, 4:1) < 0.03%
Frequency Response (+0.5 dB, -3 dB) 15Hz-100kHz
Damping Factor (20-20,000 Hz, 8 ohms) 180
Speaker Impedance 4 ohms minimum
Signal to Noise Ratio (IHF A network) 116 dB
Input Impedance/Sensitivity 33 k Ohms/1.0 volt
Power Requirements 115 Volts, 60 Hz (U.S. version)
230 Volts, 50 Hz (European version)
Power Consumption 800 Watts
Dimensions (W x H x D) 430 x 188 x 396 mm
1615/16 x 77/16 x 155/8 in
Weight (net) 18 kg, 39.7 lb.
