MYTEK Manhattan II DAC - Preamplifier - Headphone amp w/New LED Display

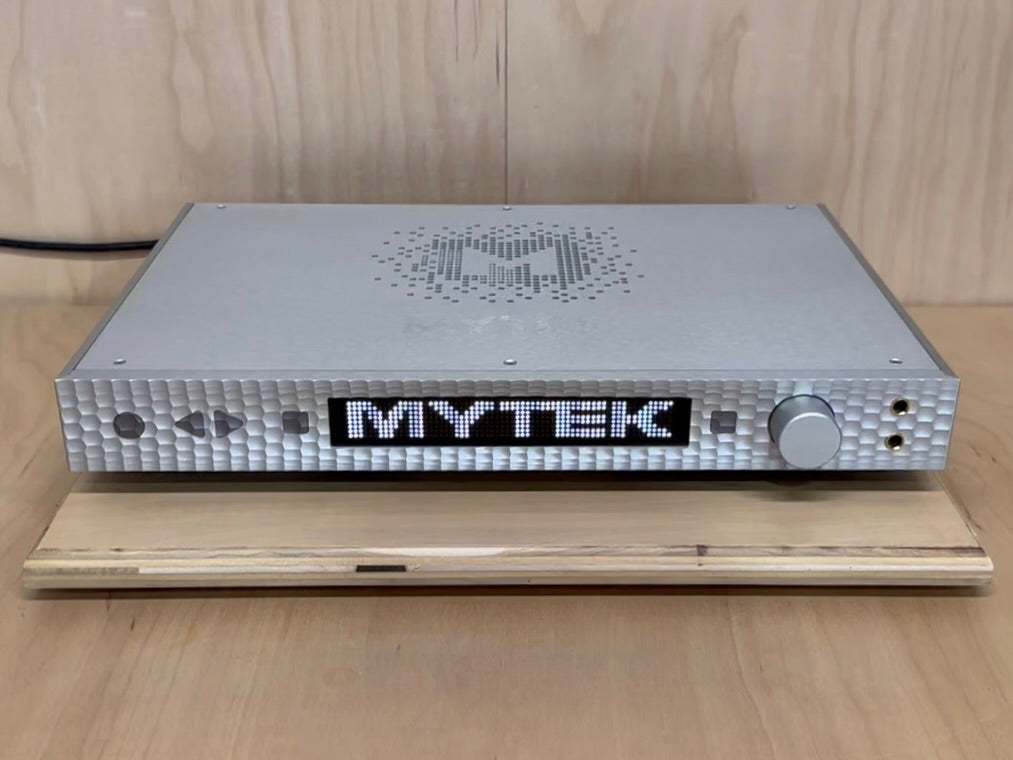

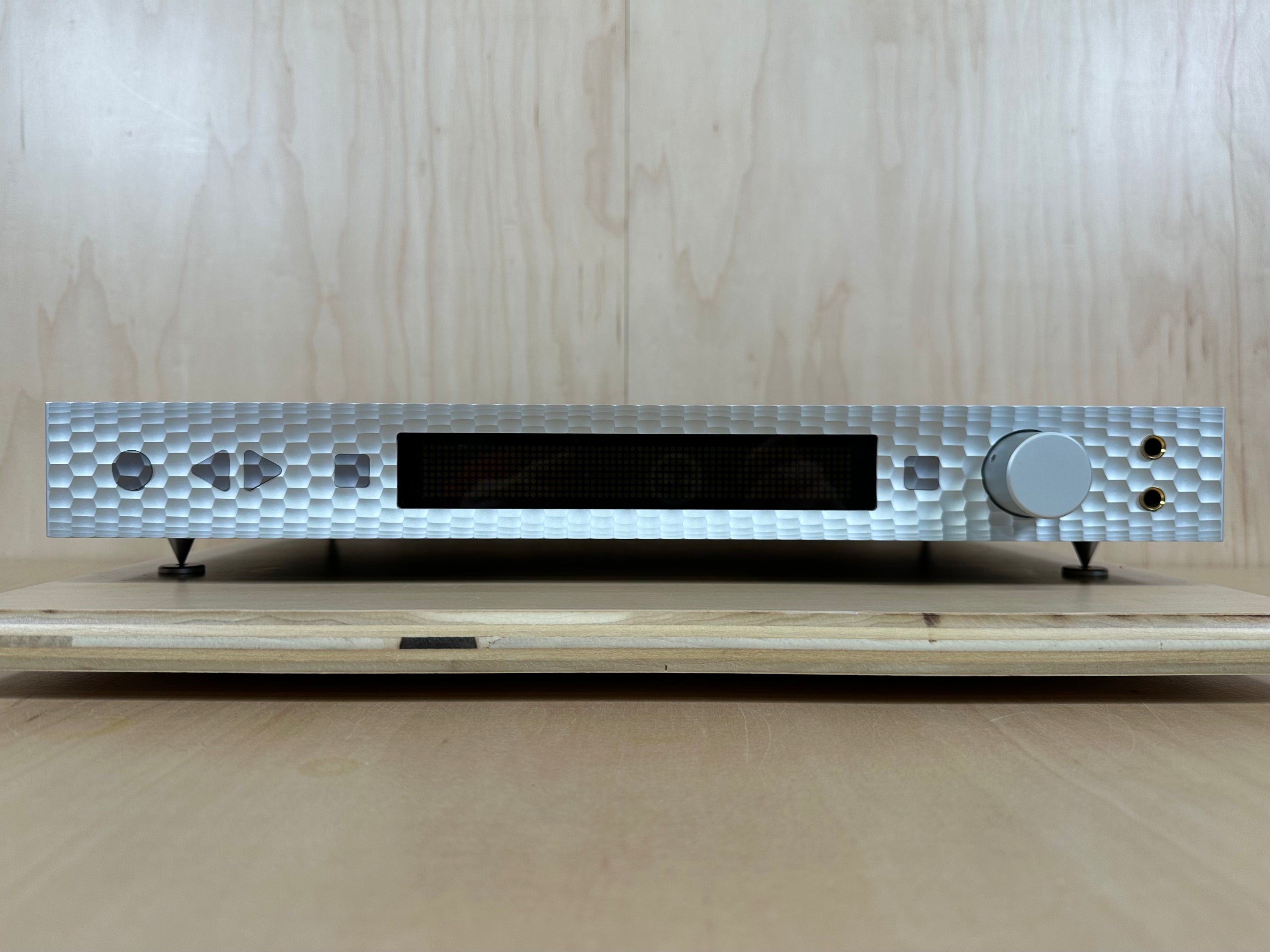

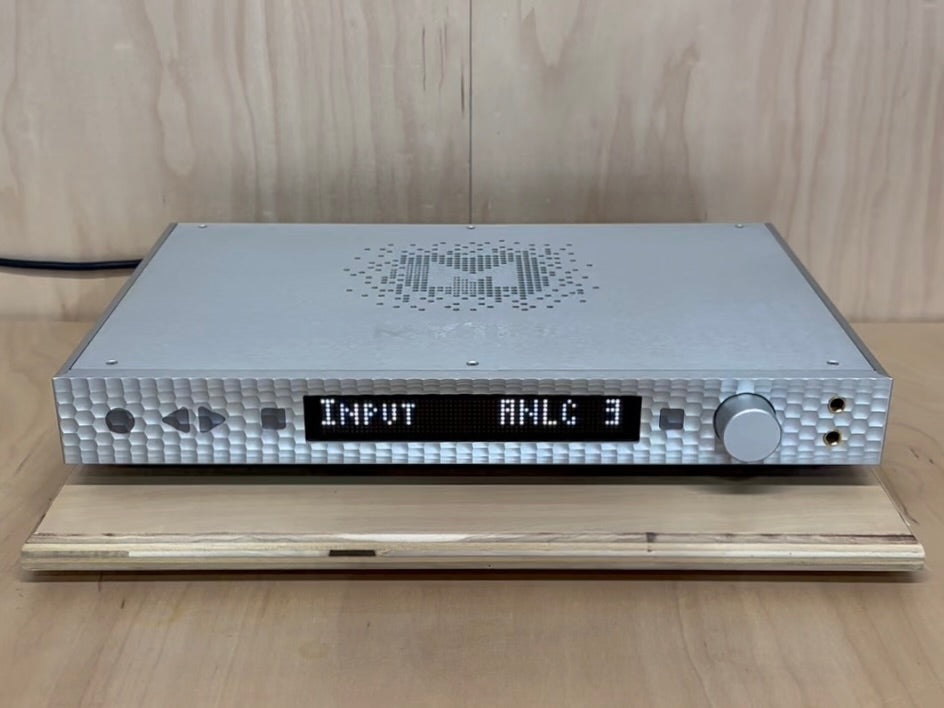

Taken on a trade from the original owner, we have the beautifully built and excellent sounding MYTEK Manhattan II DAC. The Manhattan II comes with a built in headphone amp, and also can act as a preamplifier. The original display had a few LED lights that were dim, so we ordered a new one and installed it. The display is bright and perfect, but keep in mind that it is difficult to capture the led display in pictures.

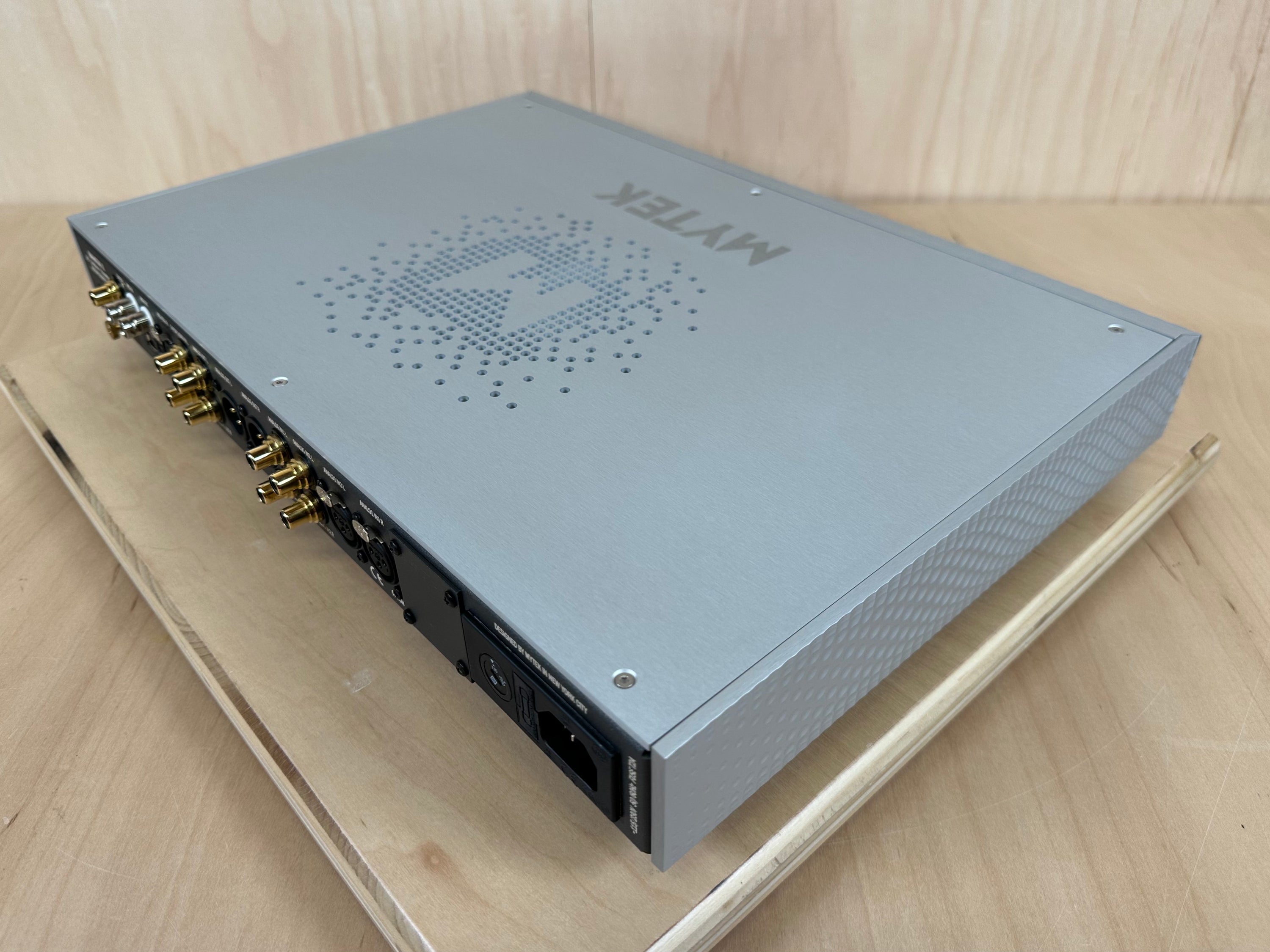

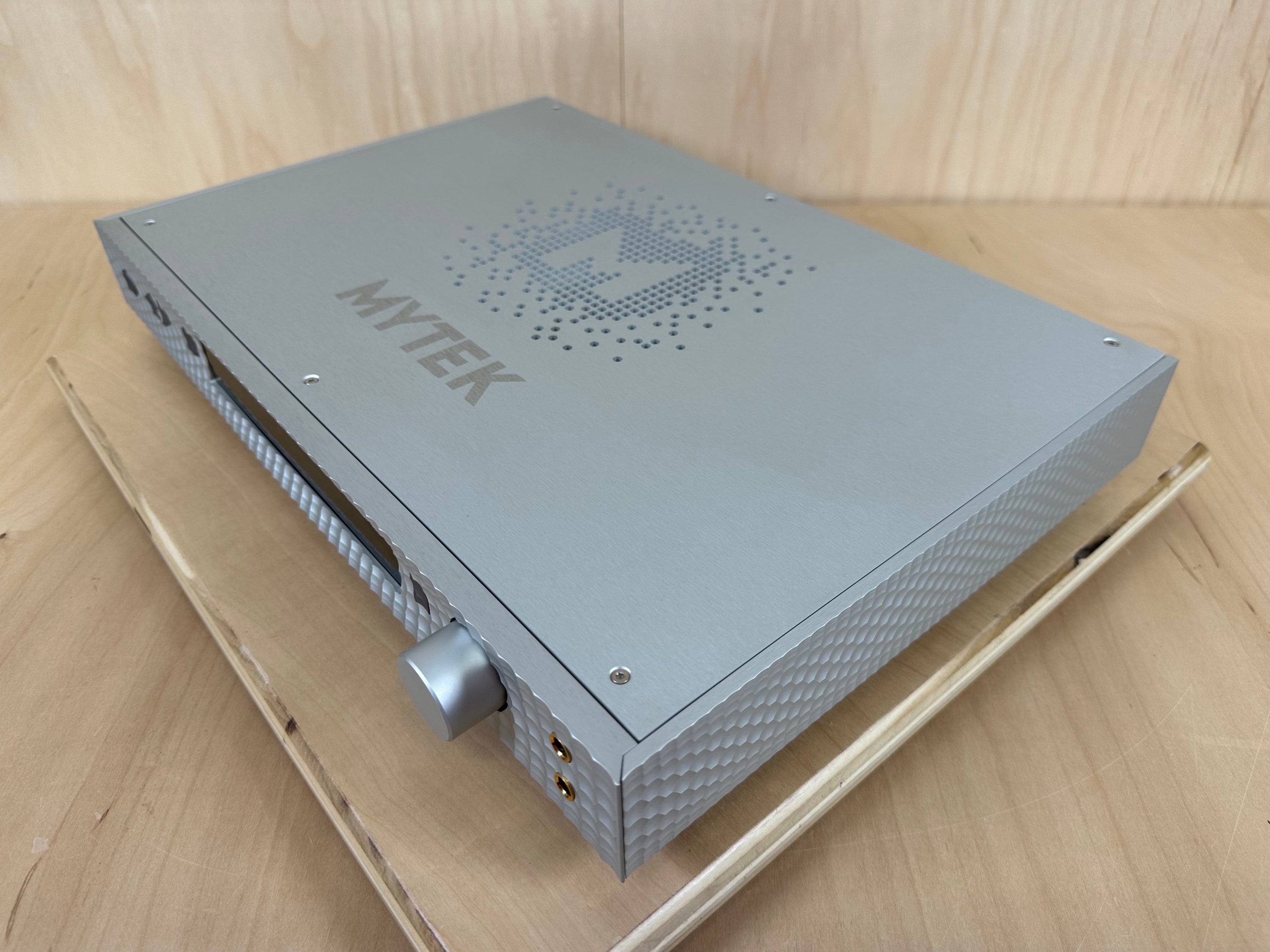

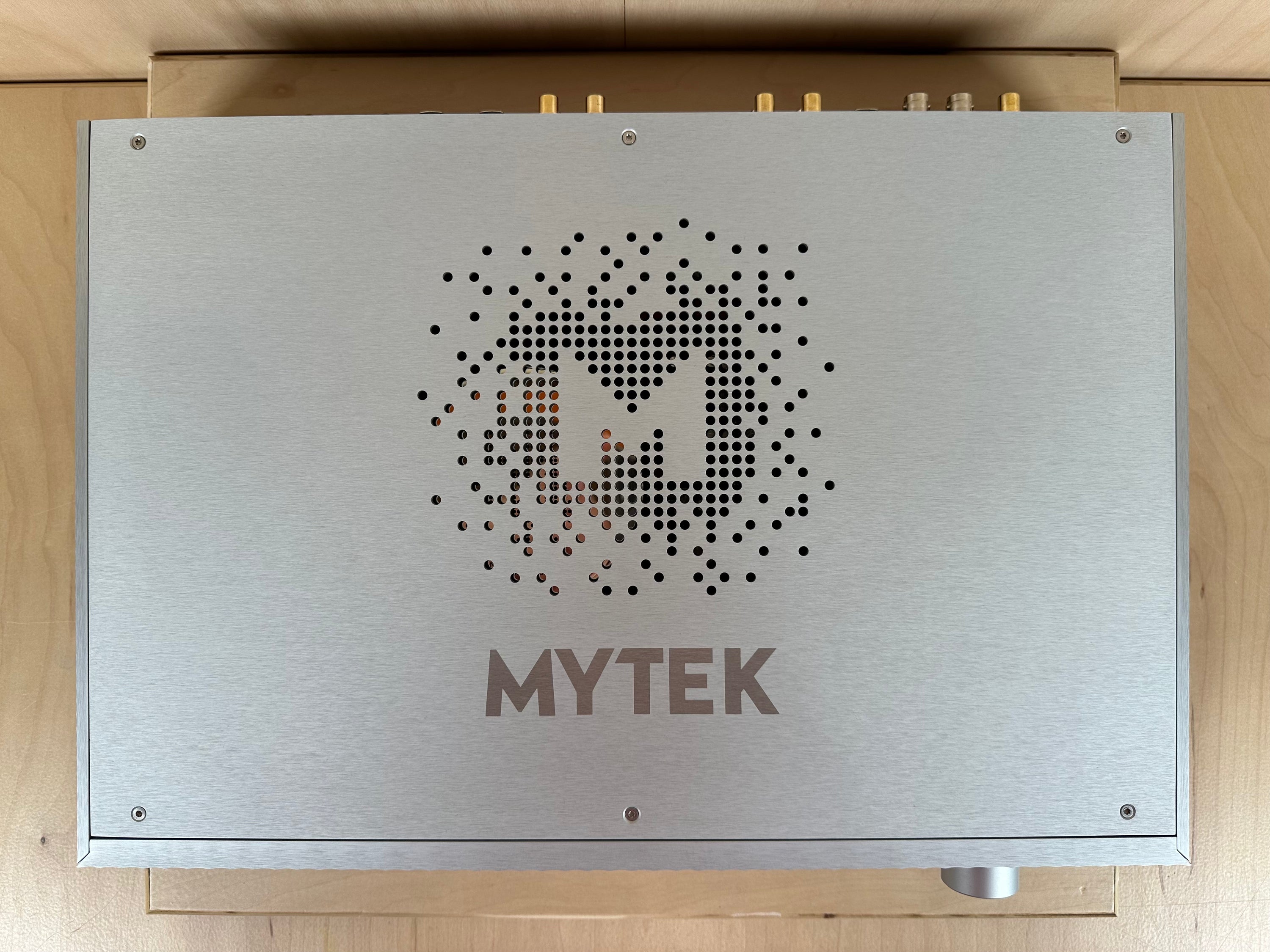

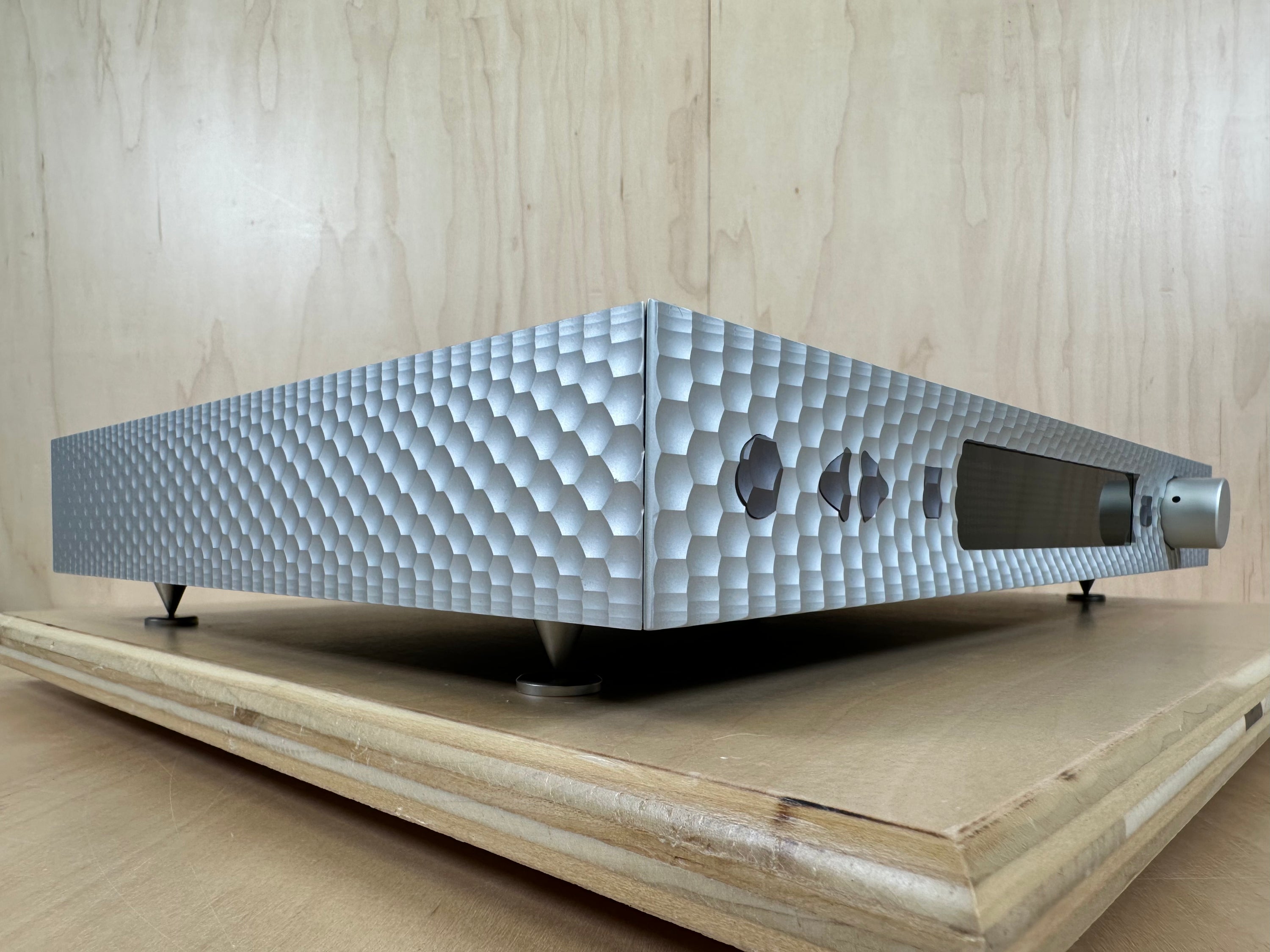

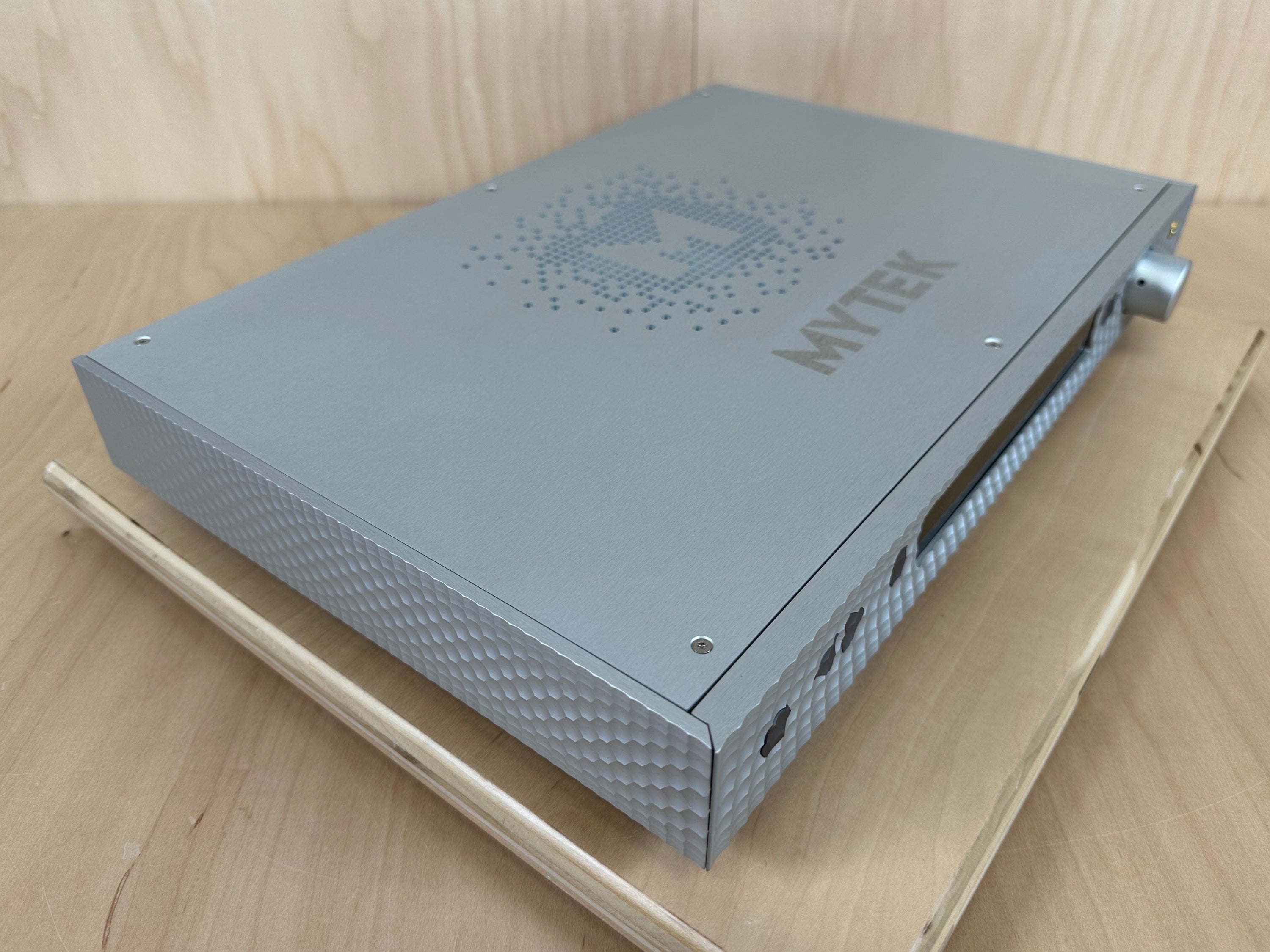

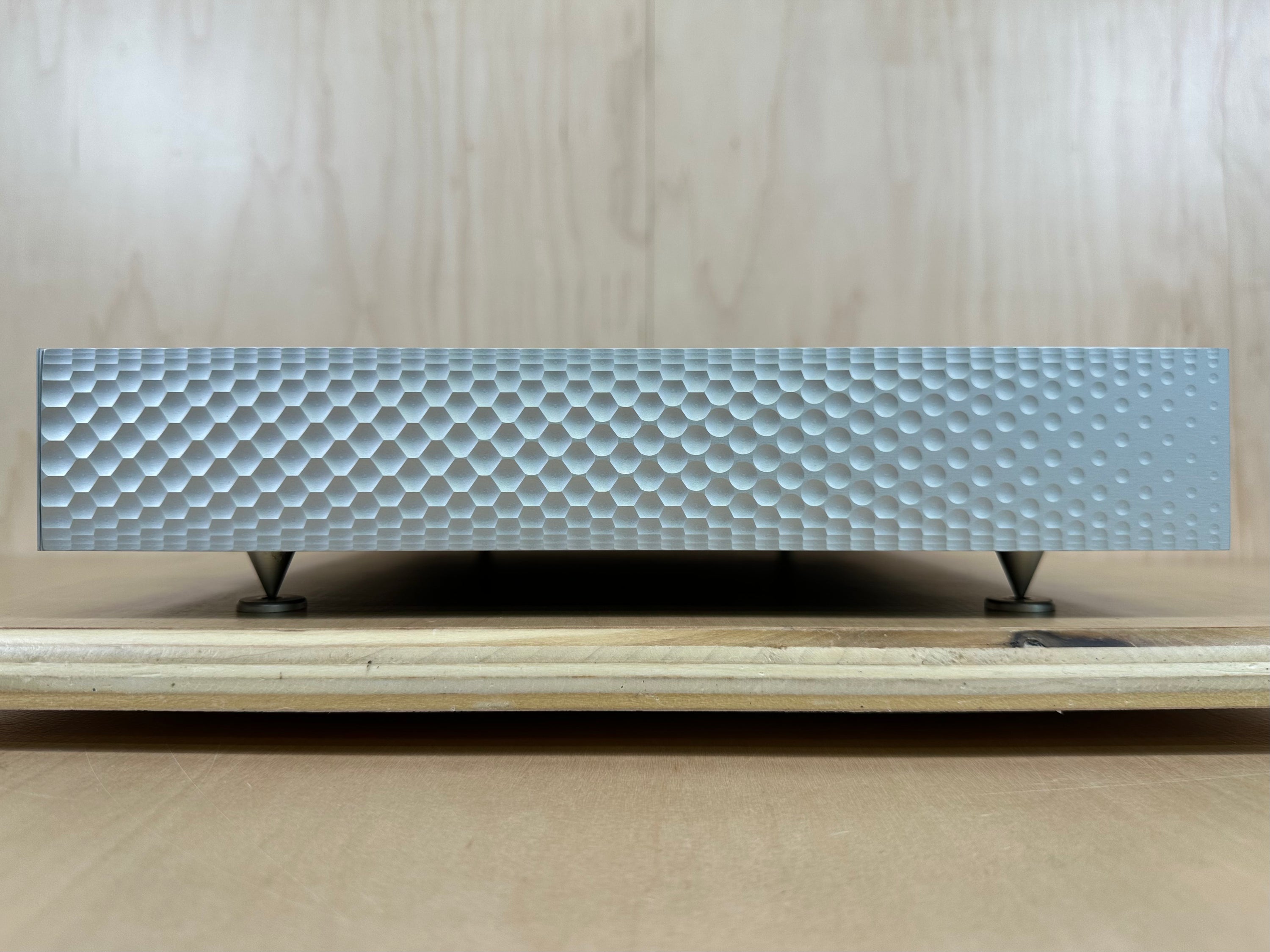

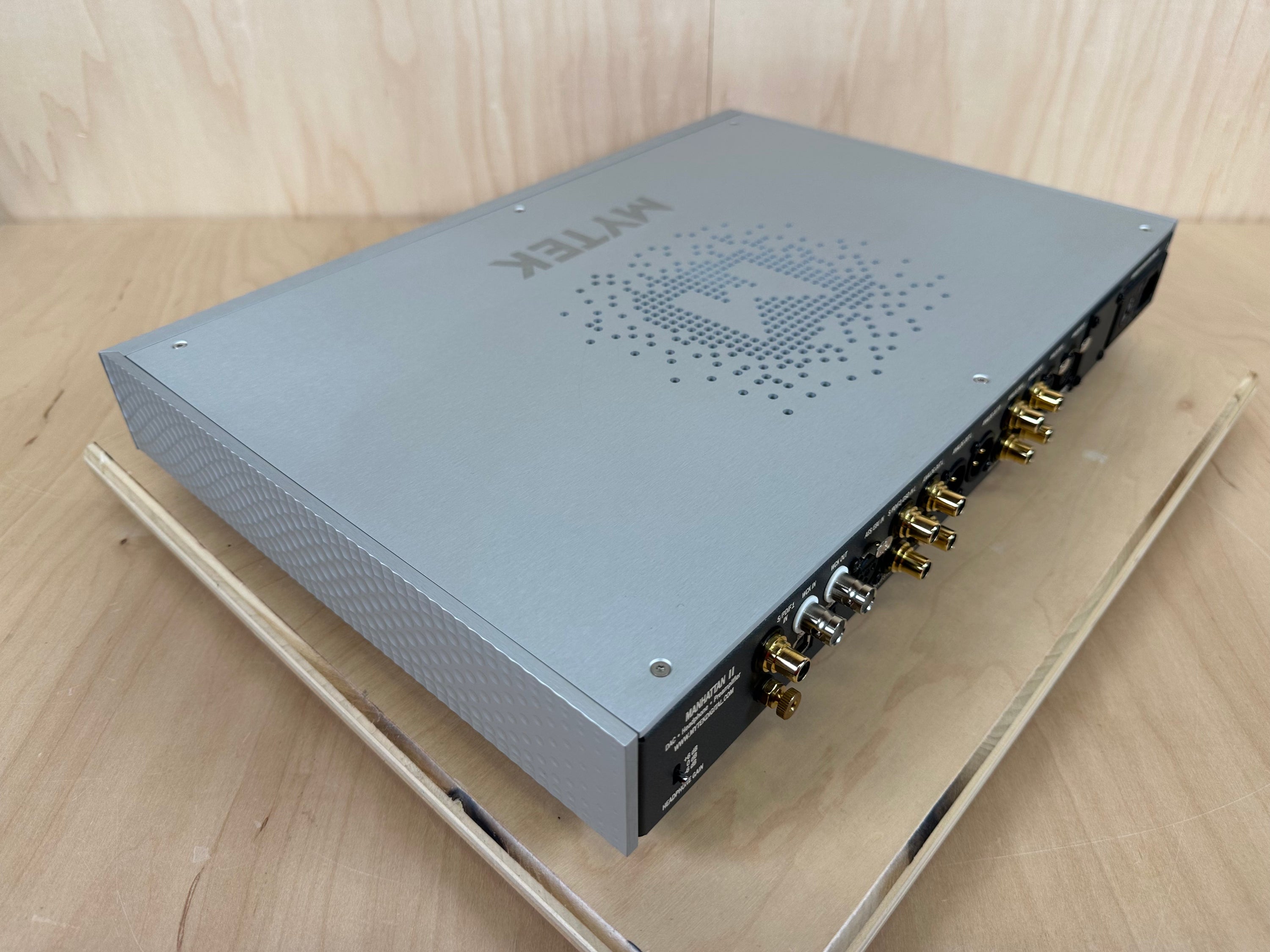

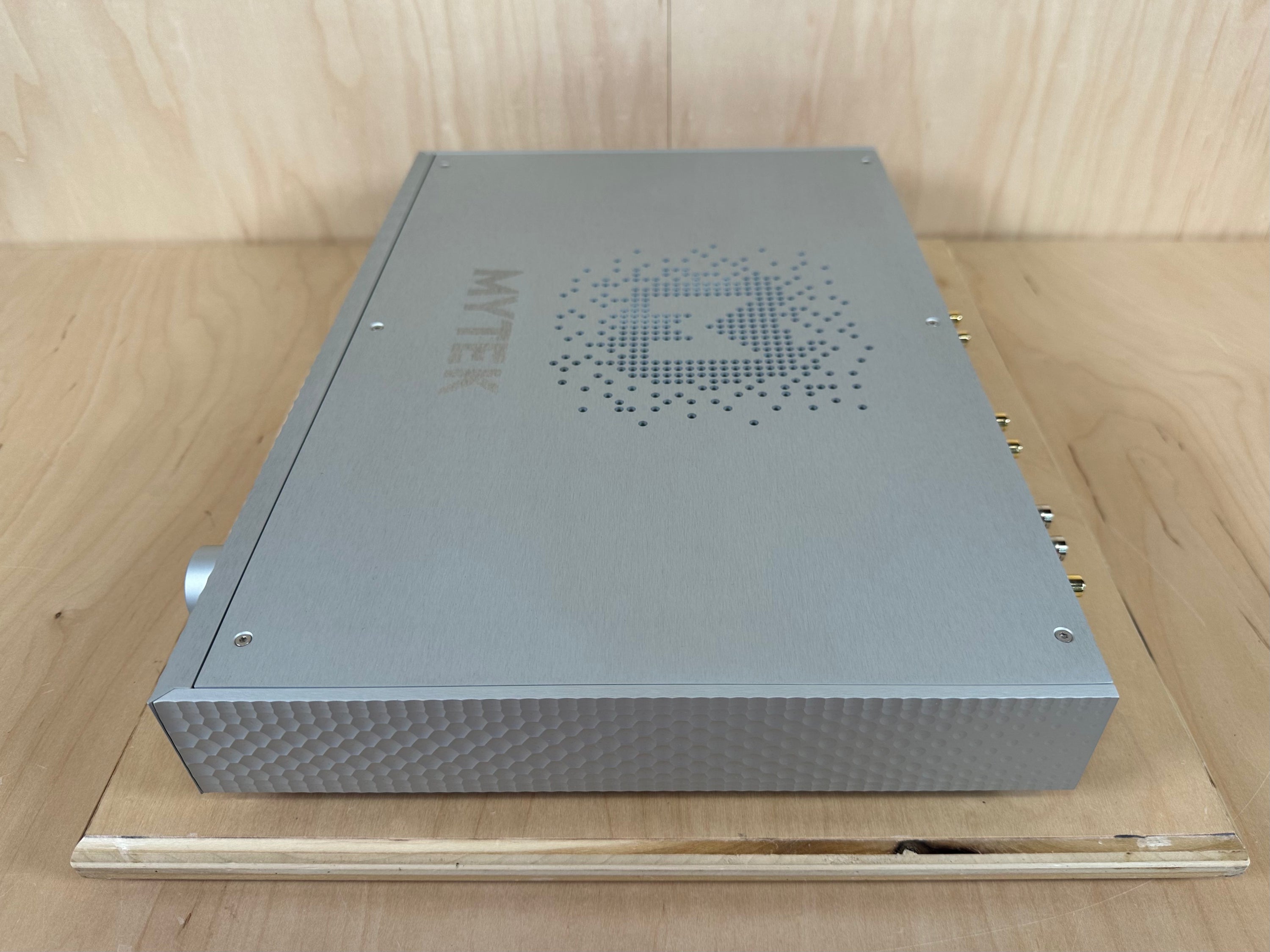

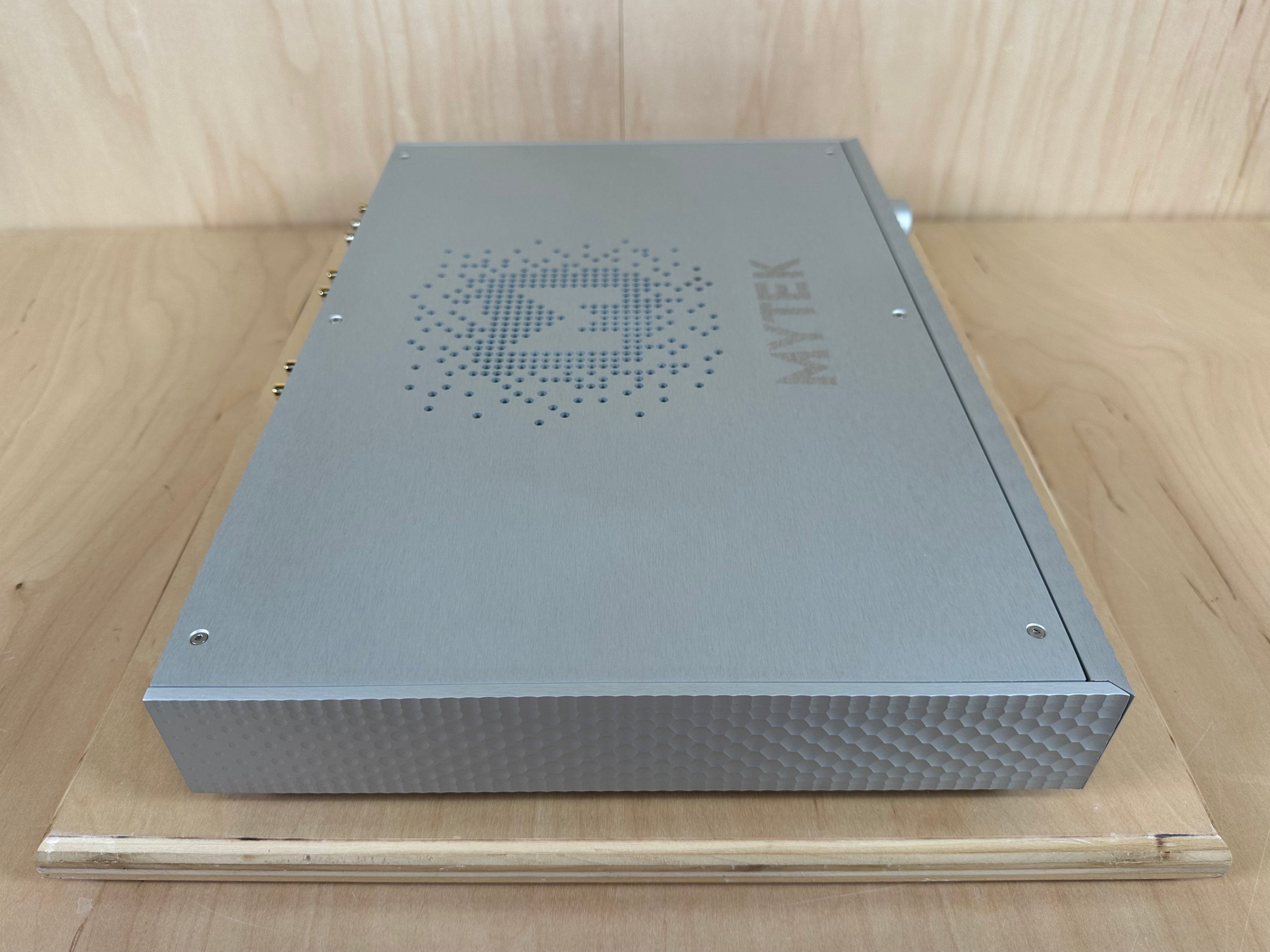

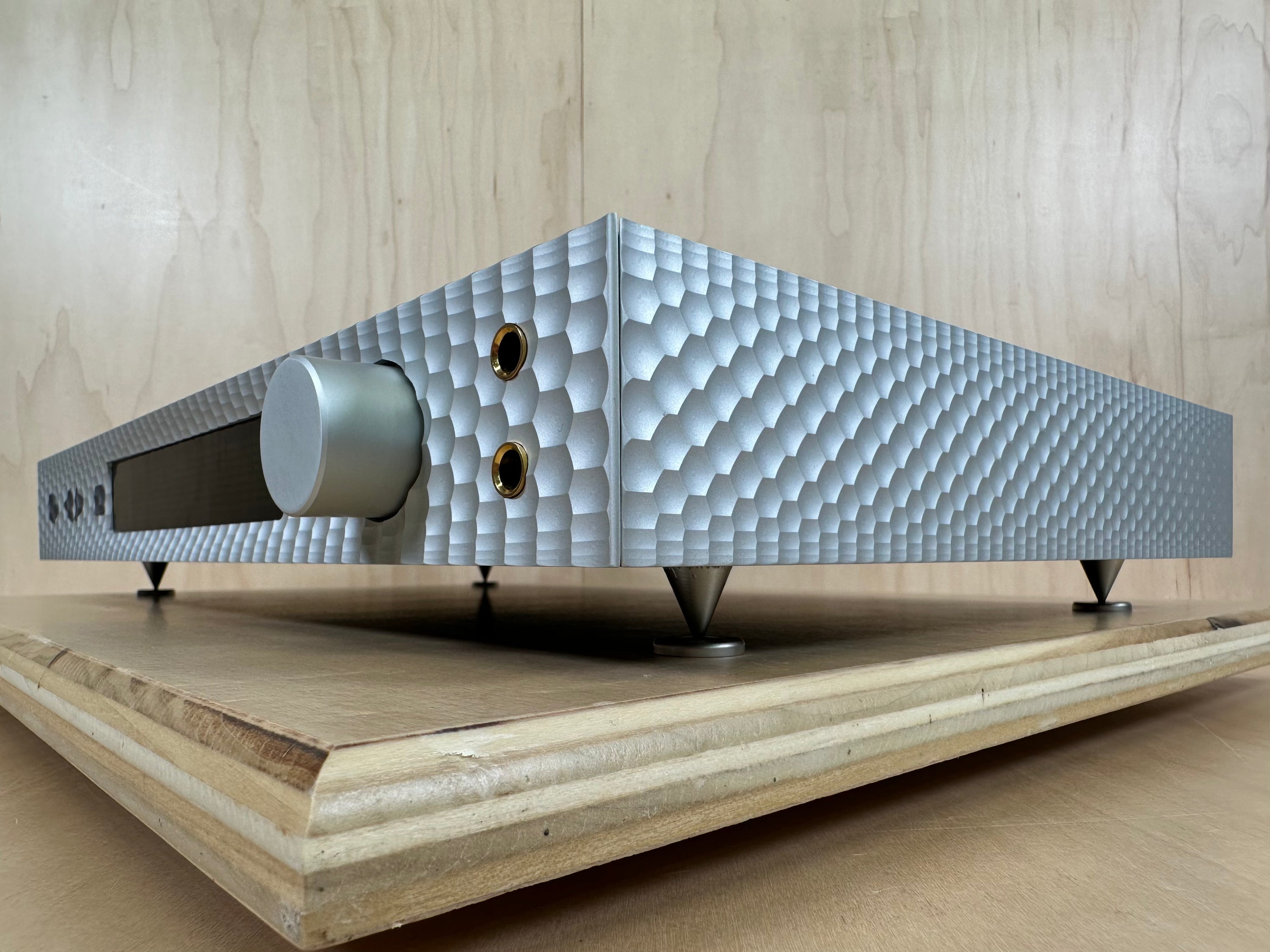

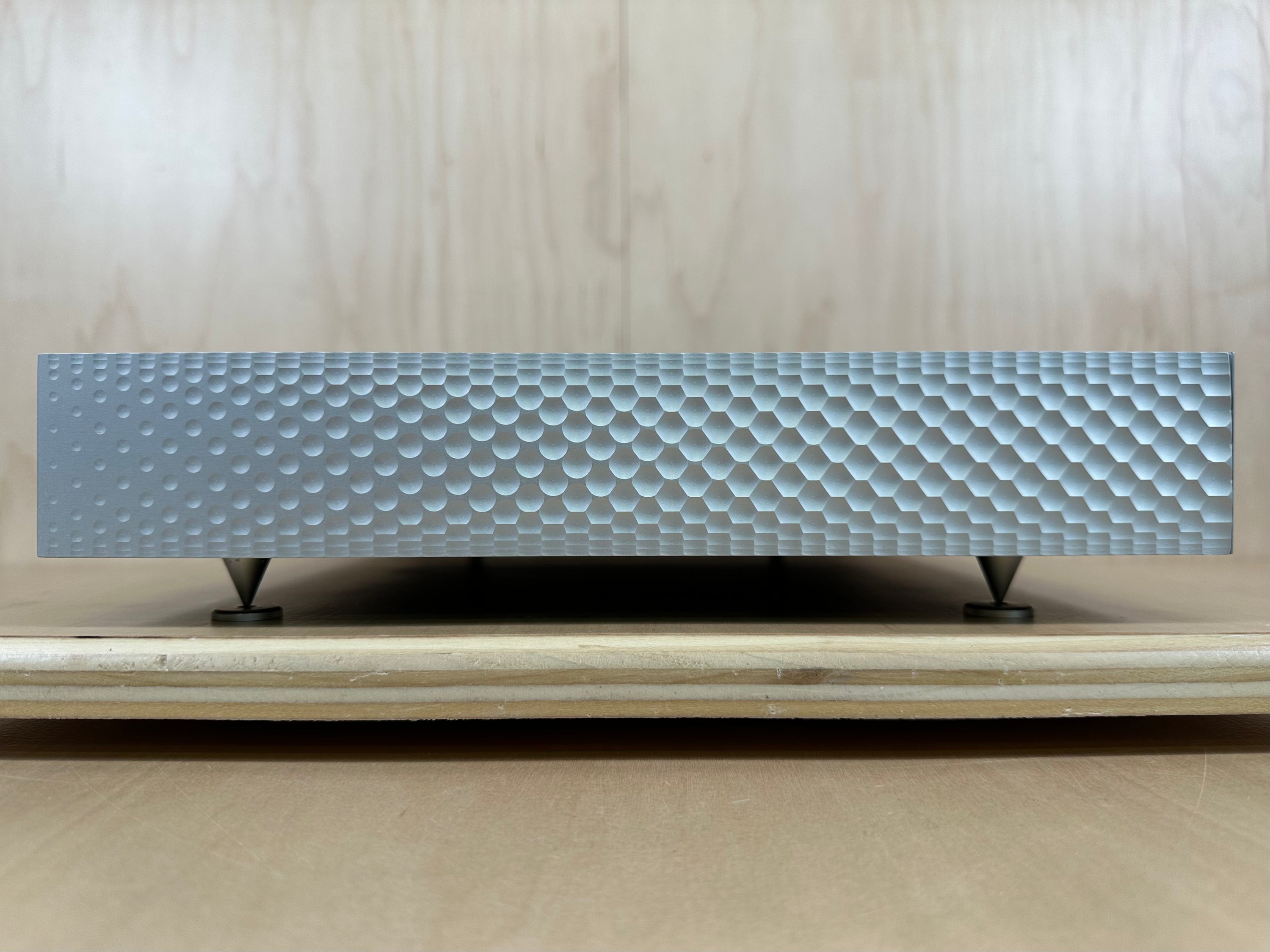

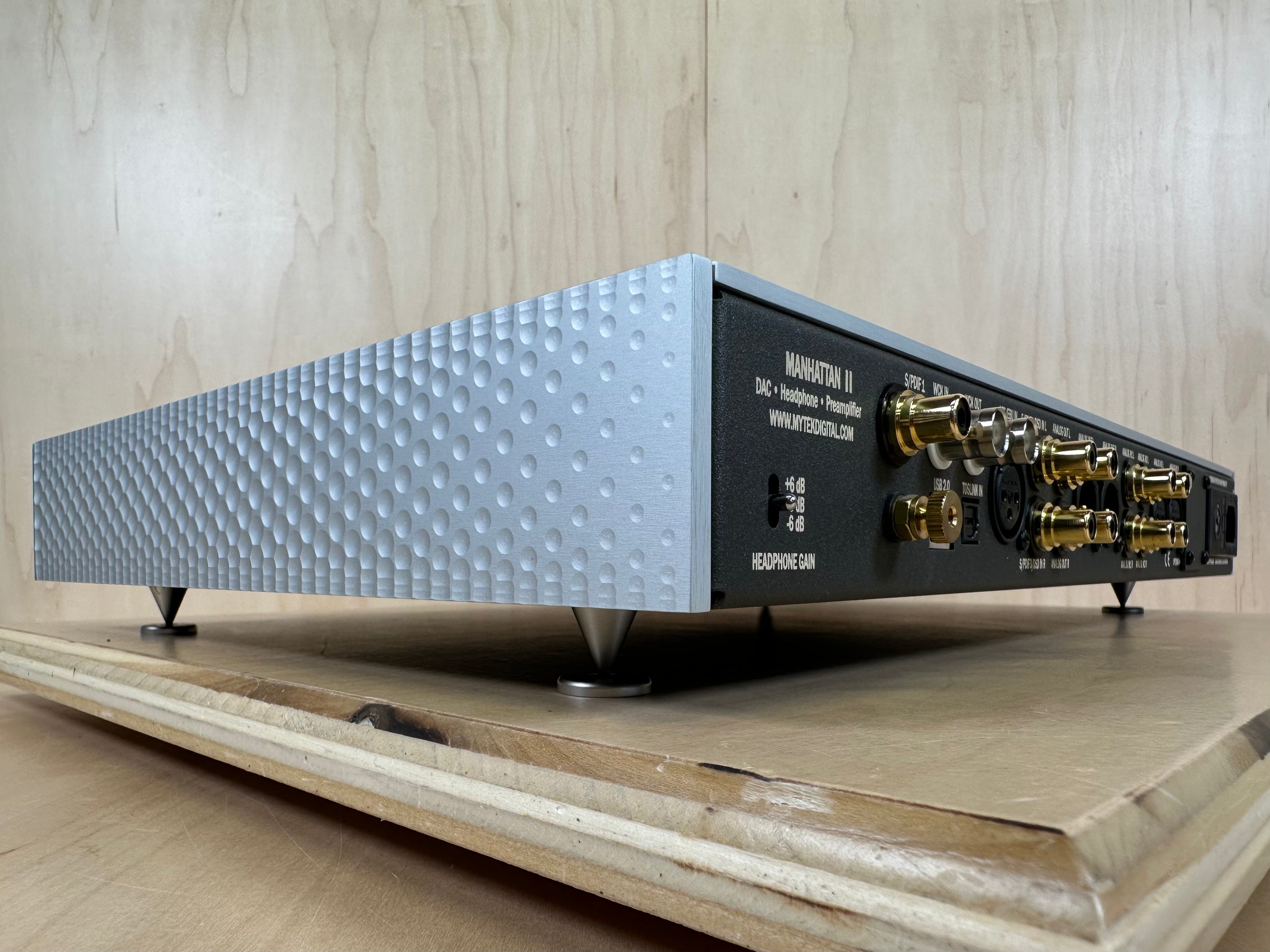

The cabinet design, fit and finish on the Manhattan II is unlike any other we have come across. The unit is in perfect working order, and is very clean both inside and out. There are only minor signs of use, with no deep scratches, dent or dings. Please see the many pictures in the listing for further details.

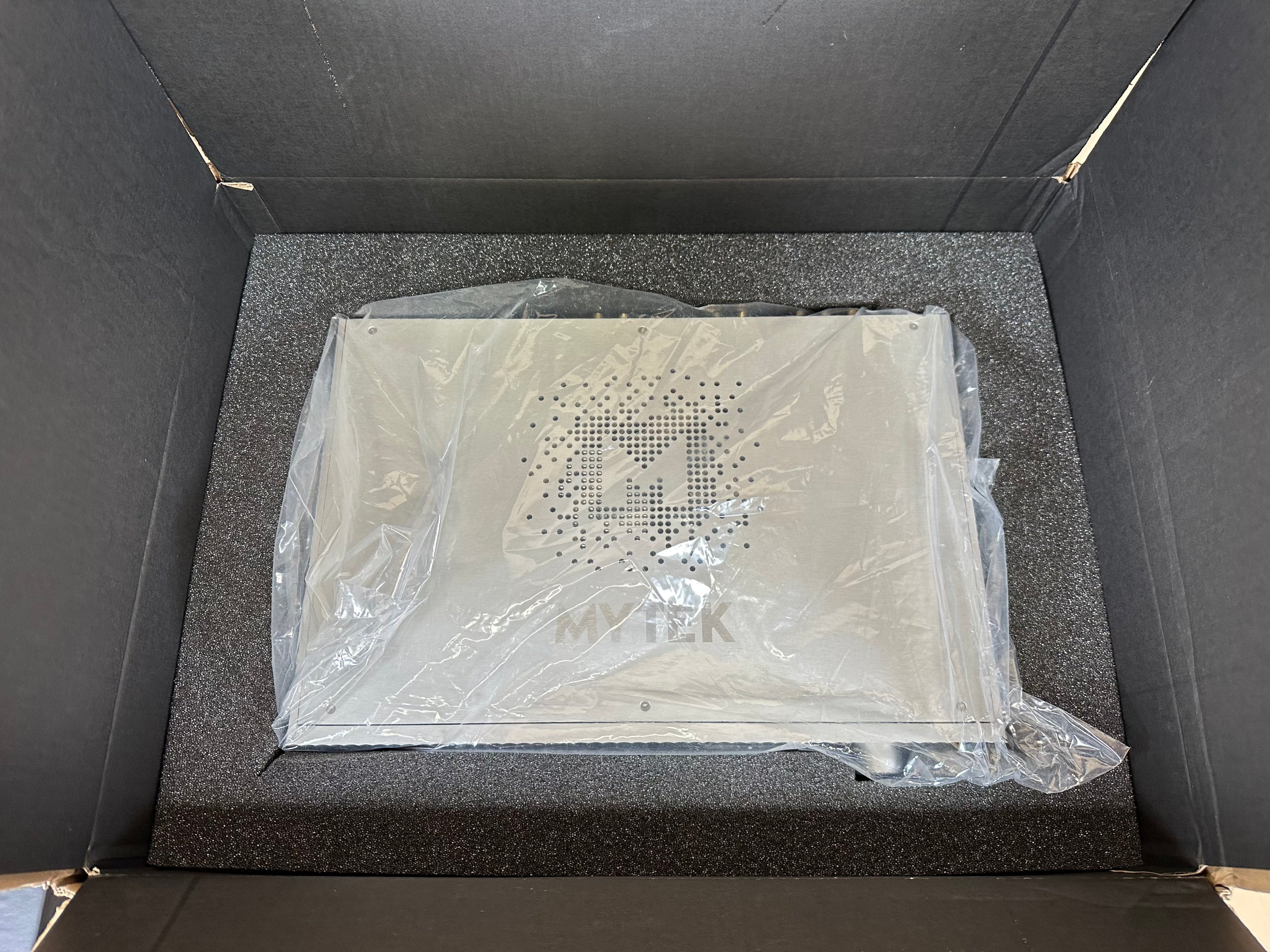

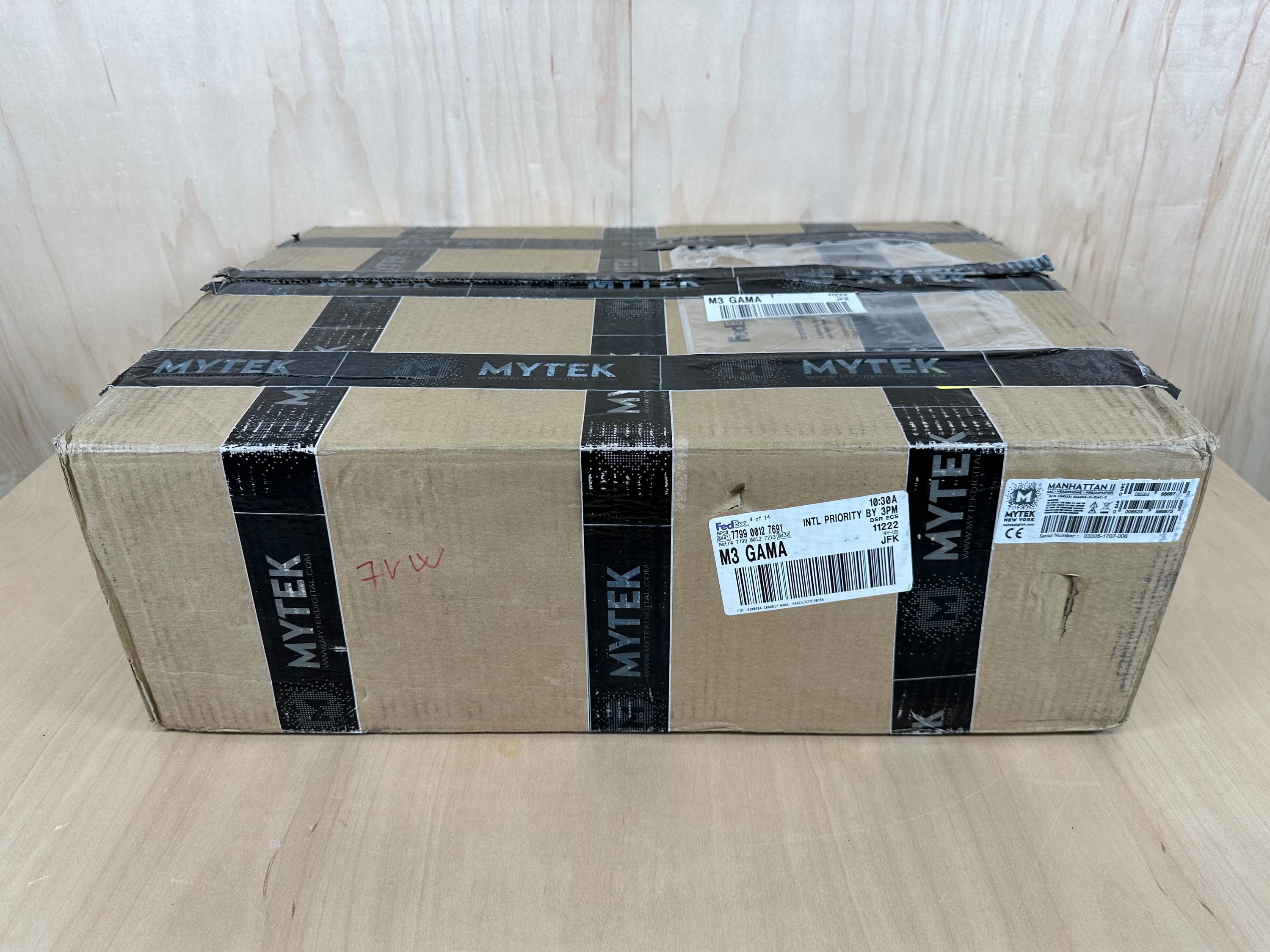

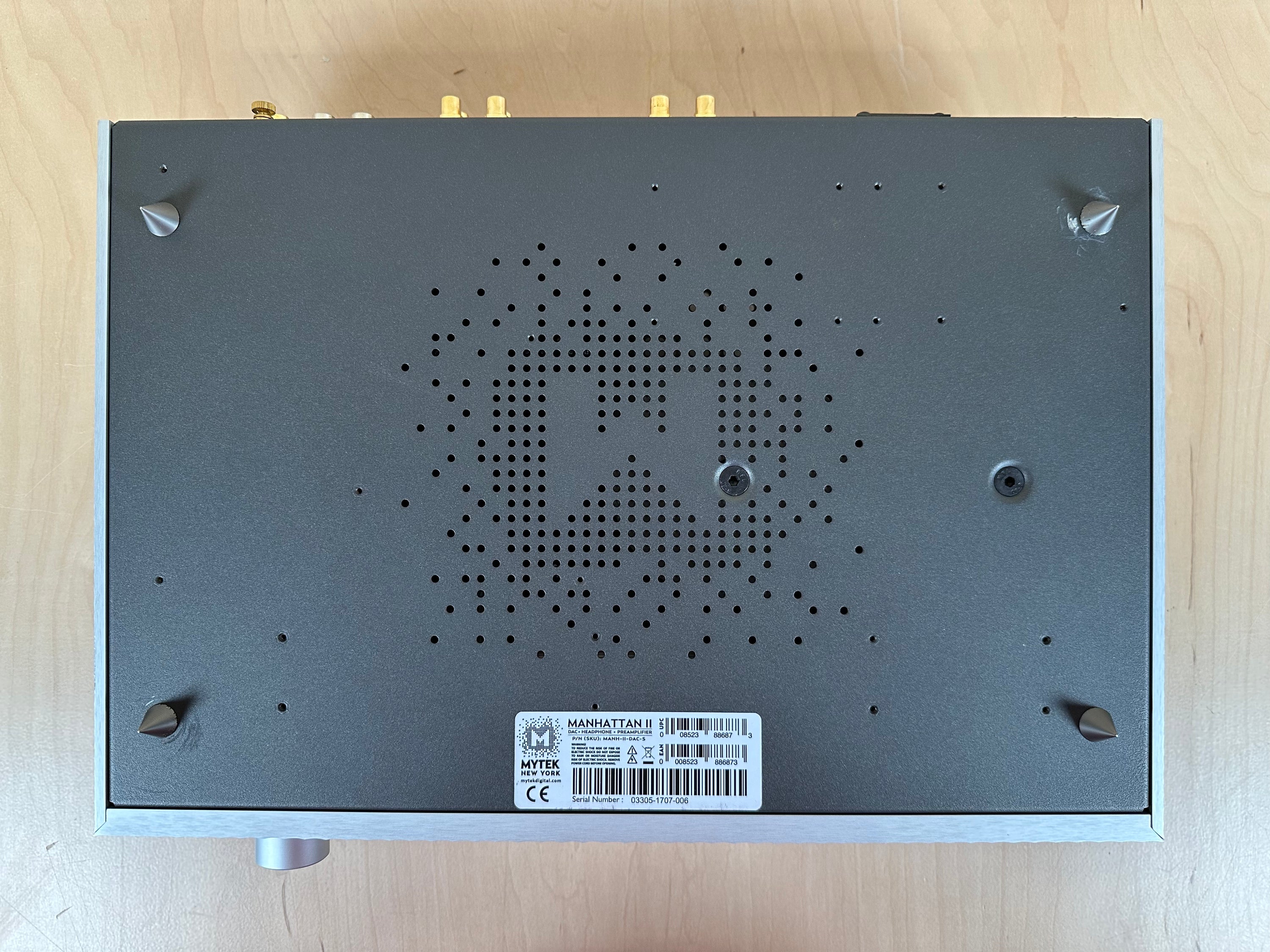

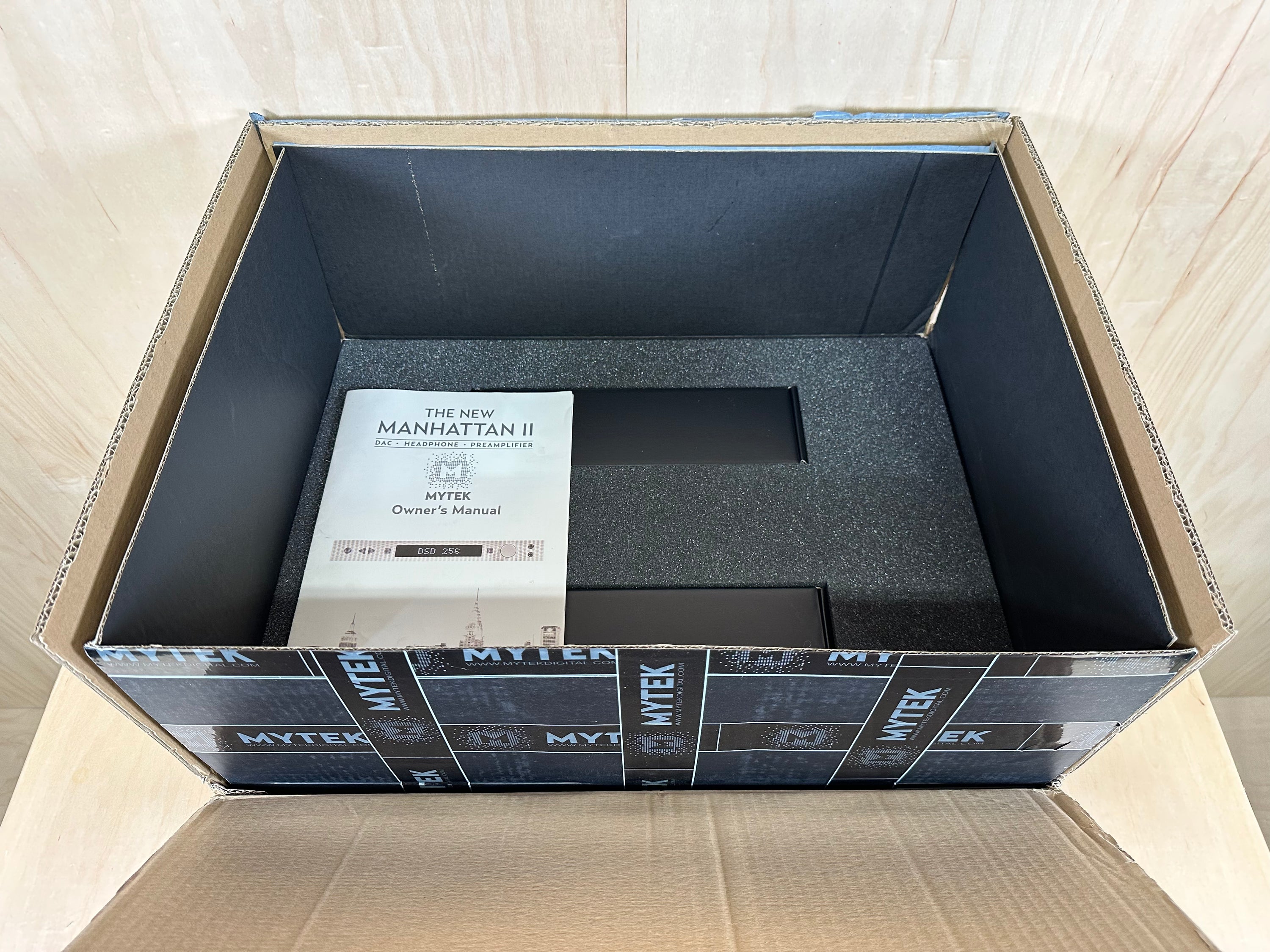

The unit comes with the original owner's manual, ac cord, usb cable, apple remote, metal spiked cone feet (there are some marks from a plier being used to unscrew them), cone feet disc pads, and original factory double box, with packaging.
Specifications from Mytek:
-
CONVERSION:
PCM up to 384k, 32bit, MQA ®, naive DSD up to DSD256, DXD, 130dB Dynamic Range. ESS Sabre ES9038 Pro DAC Chip
-
MQA HI-RES DECODER
Built in certified hardware MQA decoder
-

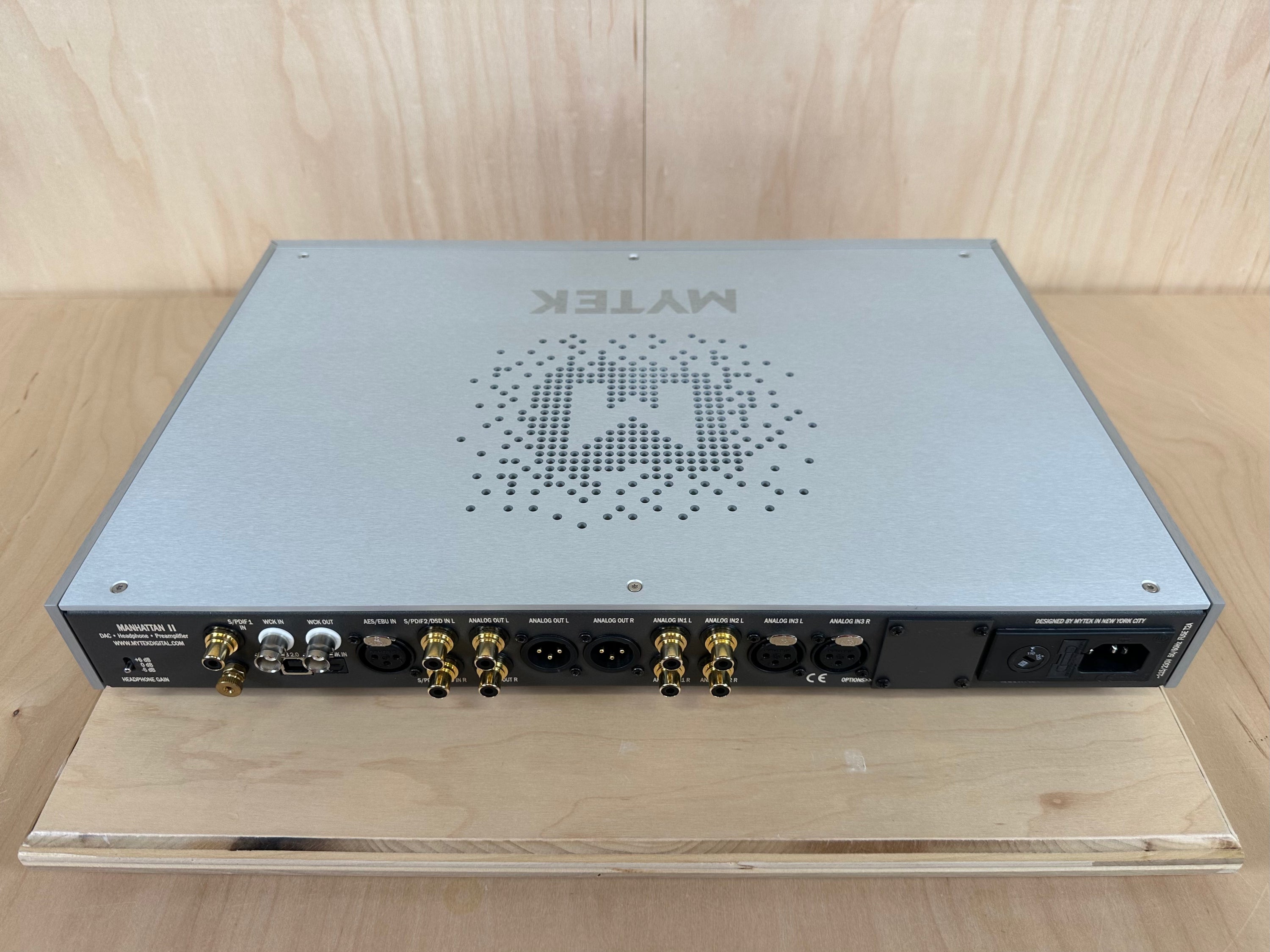

DIGITAL INPUTS:
USB2 Class2 (OSX, Linux driverless, all formats), AES/EBU (PCM up to 384k, up to DSD128 DOP), 3x S/PDIF (PCM up to 192k, up to DSD128 DoP), Toslink, SDIF3 DSD up to DSD256
-
CLOCK:
“Mytek Femtoclock Generator ™” 0.82ps internal jitter, Wordclock Input and Output (allows stacking multiple units for multichannel operation, includes mch DSD)
-
ANALOG INPUTS:
RCA Line In switchable to Phono with Optional Phono Card inserted, second pair of RCA Line In, third pair XLR Balanced Line In. Analog inputs are router through minimal path state of the art analog attenuator directly to analog and headphone outputs.
-
ANALOG OUTPUTS:
RCA, balanced XLR, simultaneous, 50 Ohm impedance
-
HEADPHONE OUTPUTS:Reference High Current, High transient Headphone Amp, 500mA, 6 Watts, 0 Ohm out impedance. Dual headphone jacks, designed to drive demanding headphones.
-
BUILT-IN ATTENUATOR:
Choice of 1dB step analog attenuator for main out and headphones, 1dB step digital 32bit attenuator or purist relay bypass.
-
AUDIO RECORDING FUNCTION FOR DIGITAL SOURCES:
All digital inputs can be routed into computer via USB2. Allows connection of external digital sources such as CD Players and digitizing ADCs.
-
REMOTE:
Included, universal remote capable
-
FIRMWARE:
Upgradable via USB Control Panel App (Win and Mac)
-
POWER SUPPLY:
Switchable 115/230VAC (100V Japanese version available)
-
DIMENSIONS:
WxDxH=17″x10.5″x1.95″ = 432x267x50mm
-
WEIGHT:
16lbs, 8kg
