Mark Levinson 360S Digital Processor DAC
For your consideration, we have the highly regarded Mark Levinson 360S DAC for sale. This is a factory original No. 360S, not an older No. 36 that was upgraded at some point in its life. Much more expensive than the No. 36 or No. 360 and well worth the price as this model benefited greatly by the addition of FOUR PCM1704 multibit DAC chips.

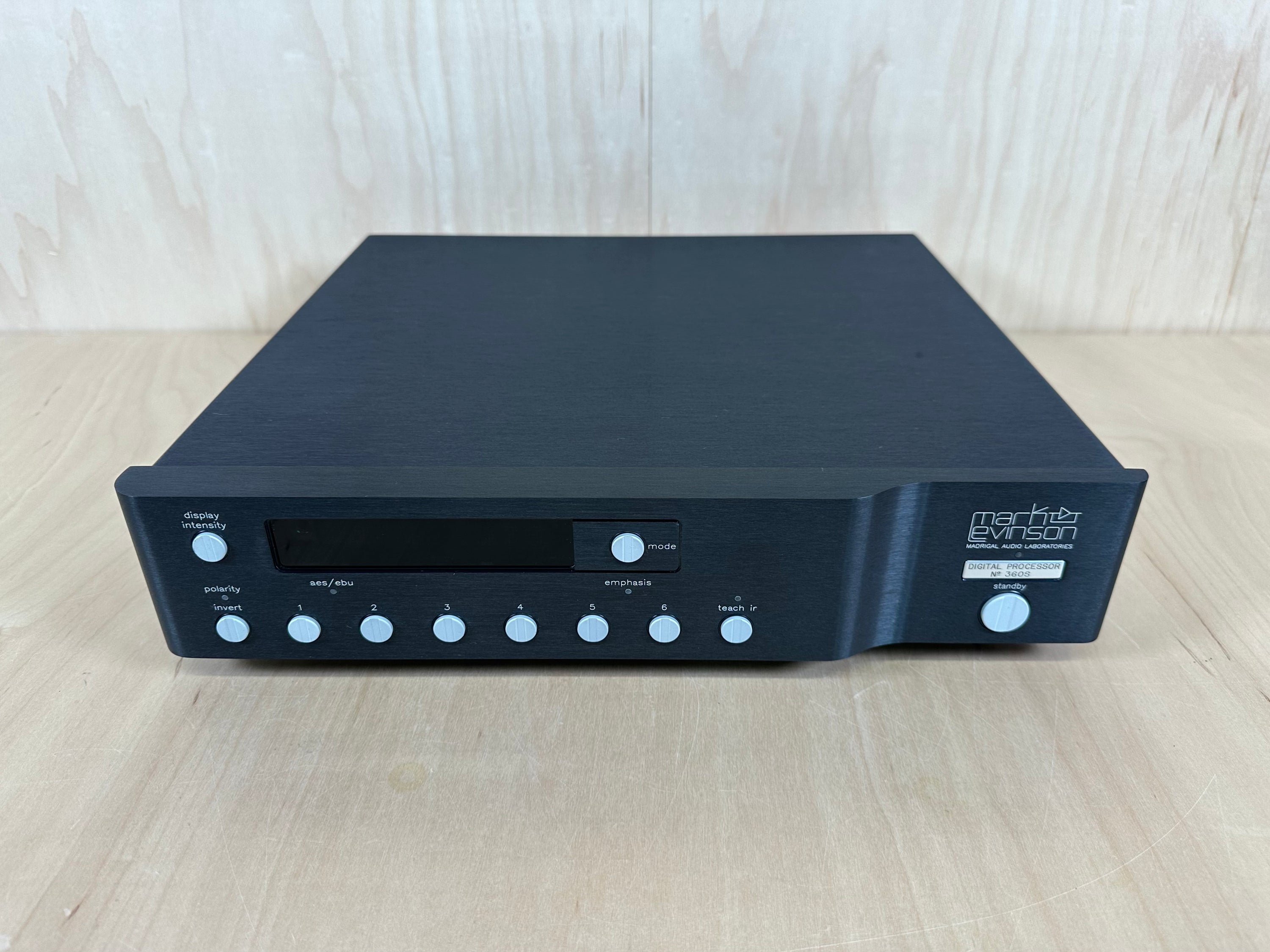

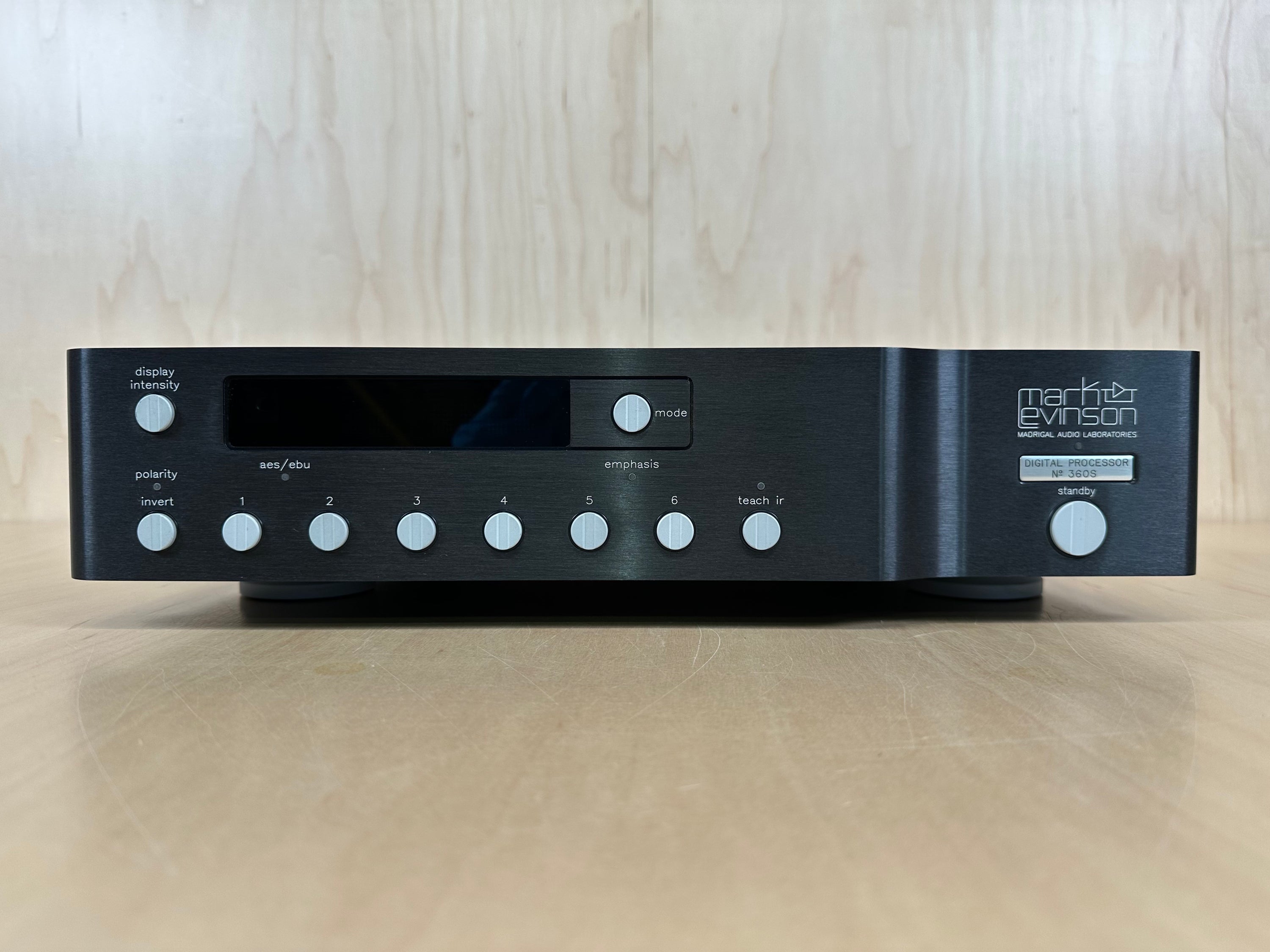

It represents the pinnacle of non Hi-Res Redbook CD performance and would be hard to beat even with the best players available today. This No. 360S has been fully tested and is perfect working order. The display is bright and clear.

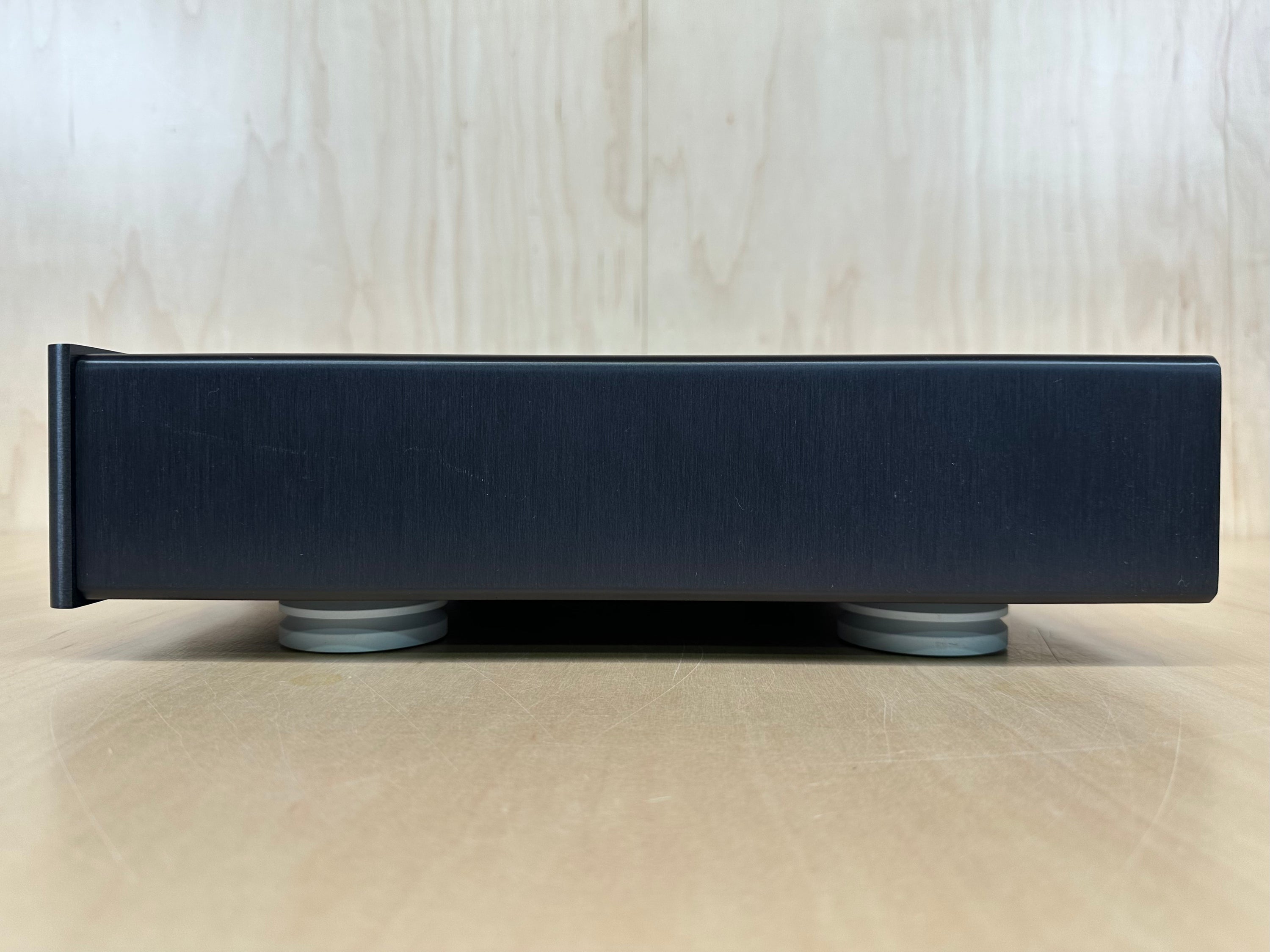

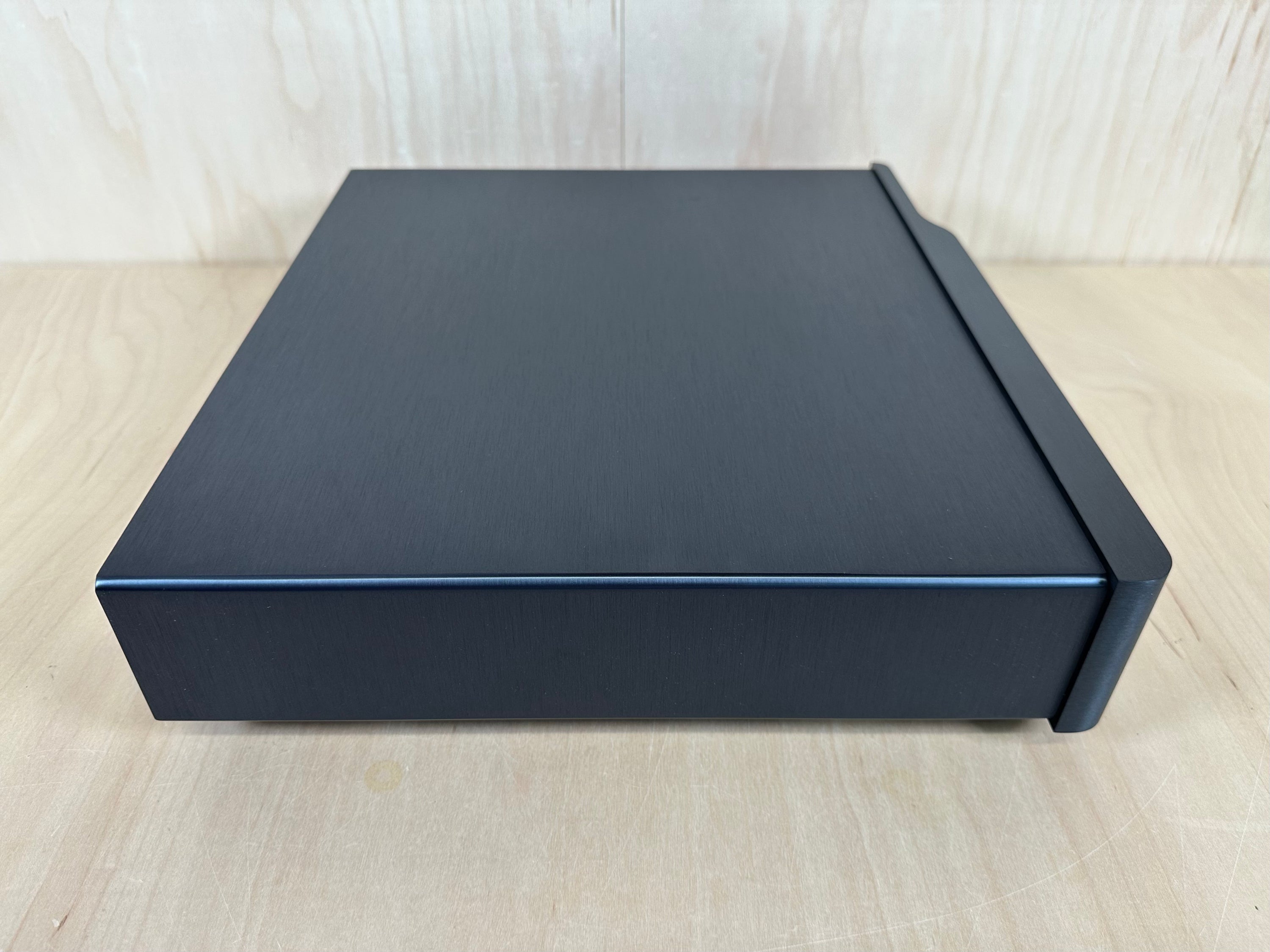

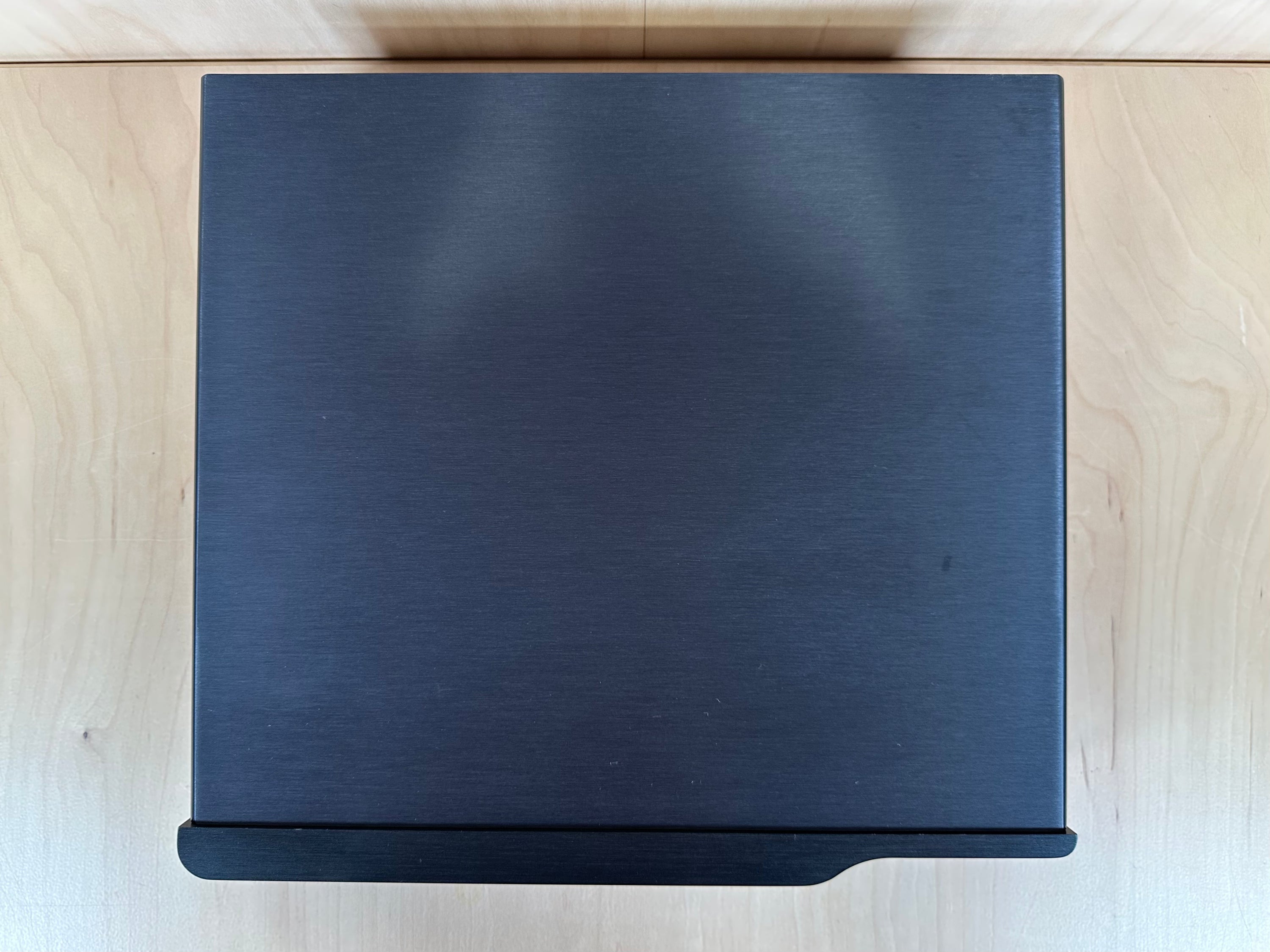

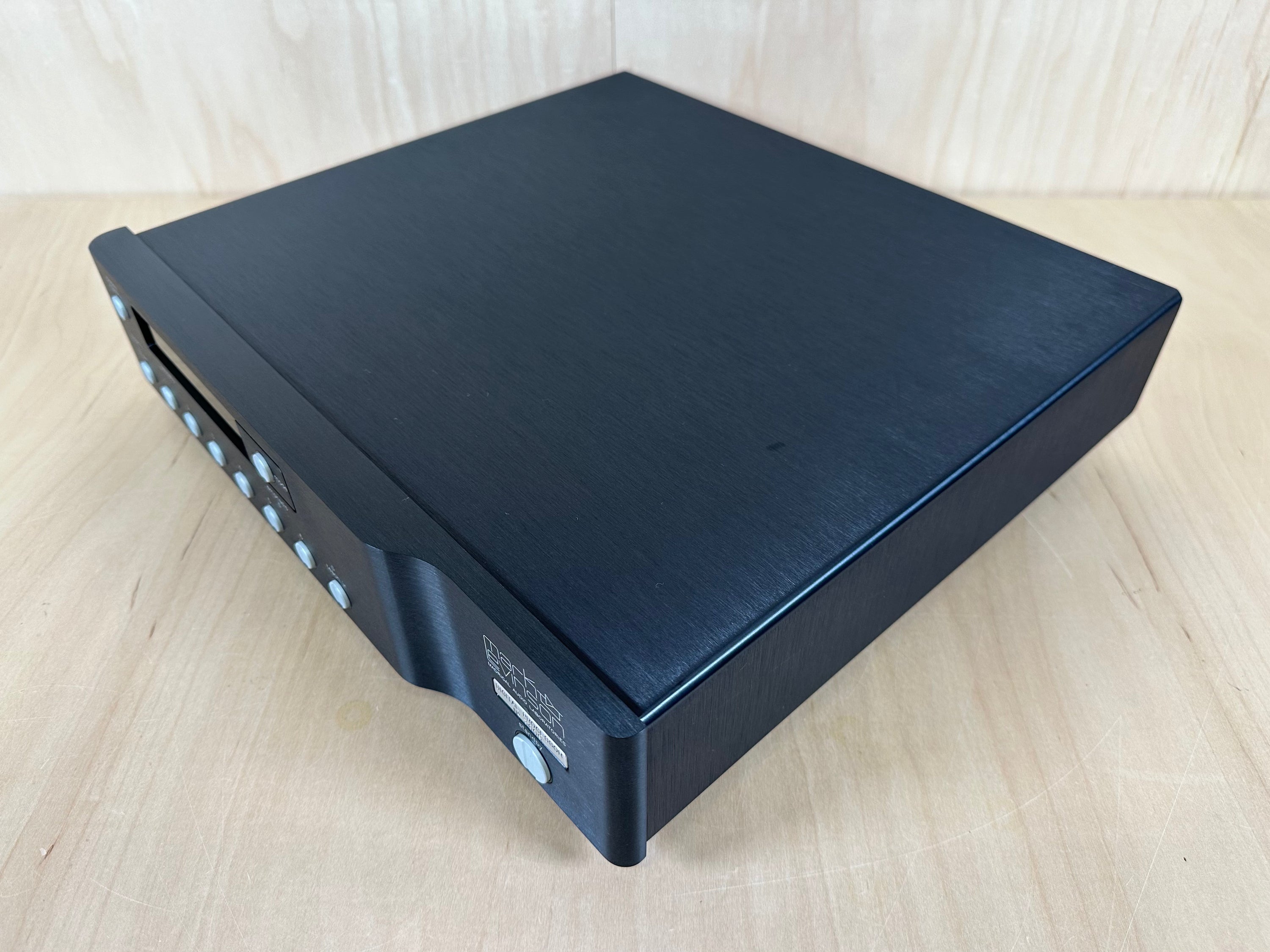

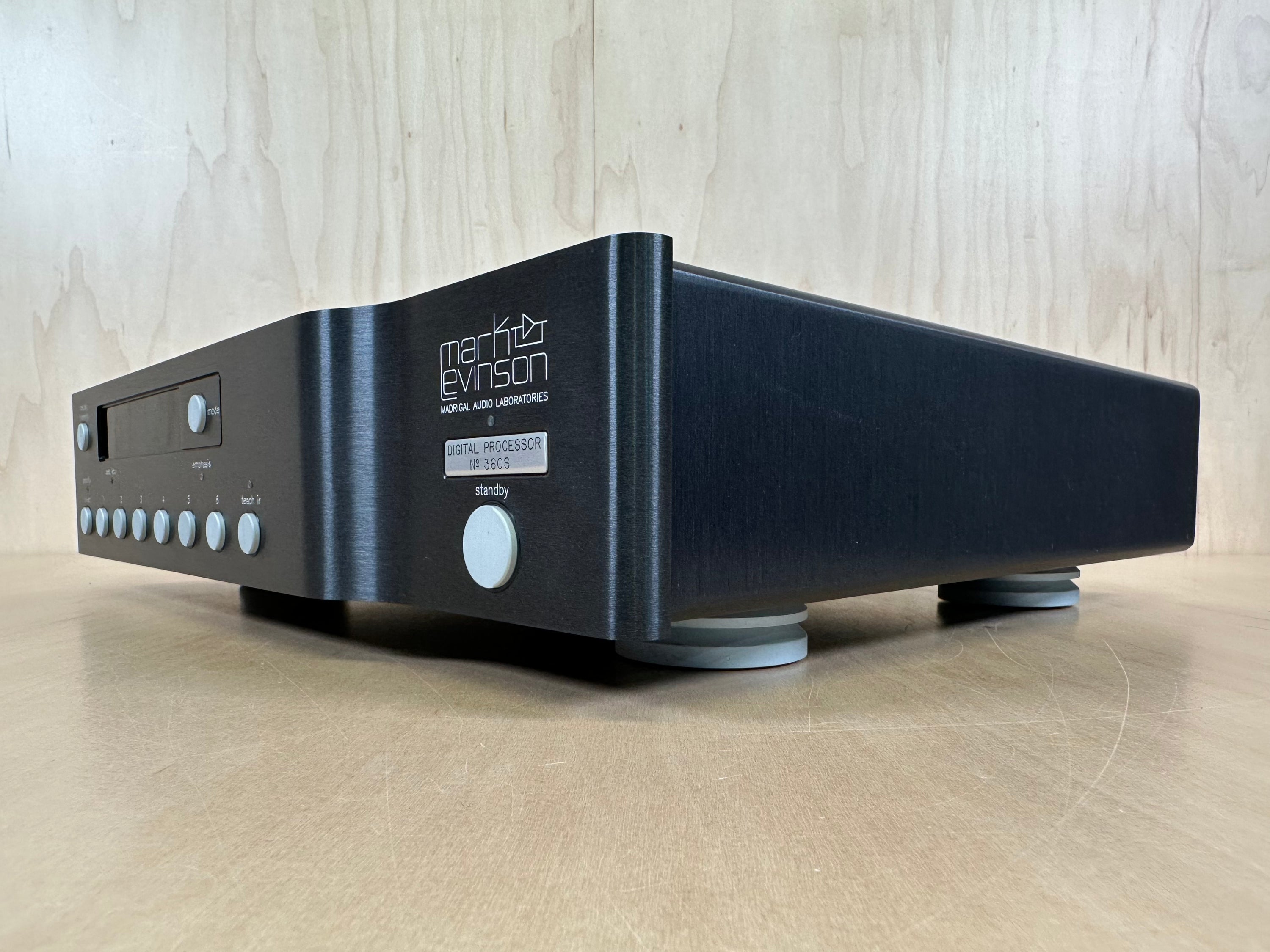

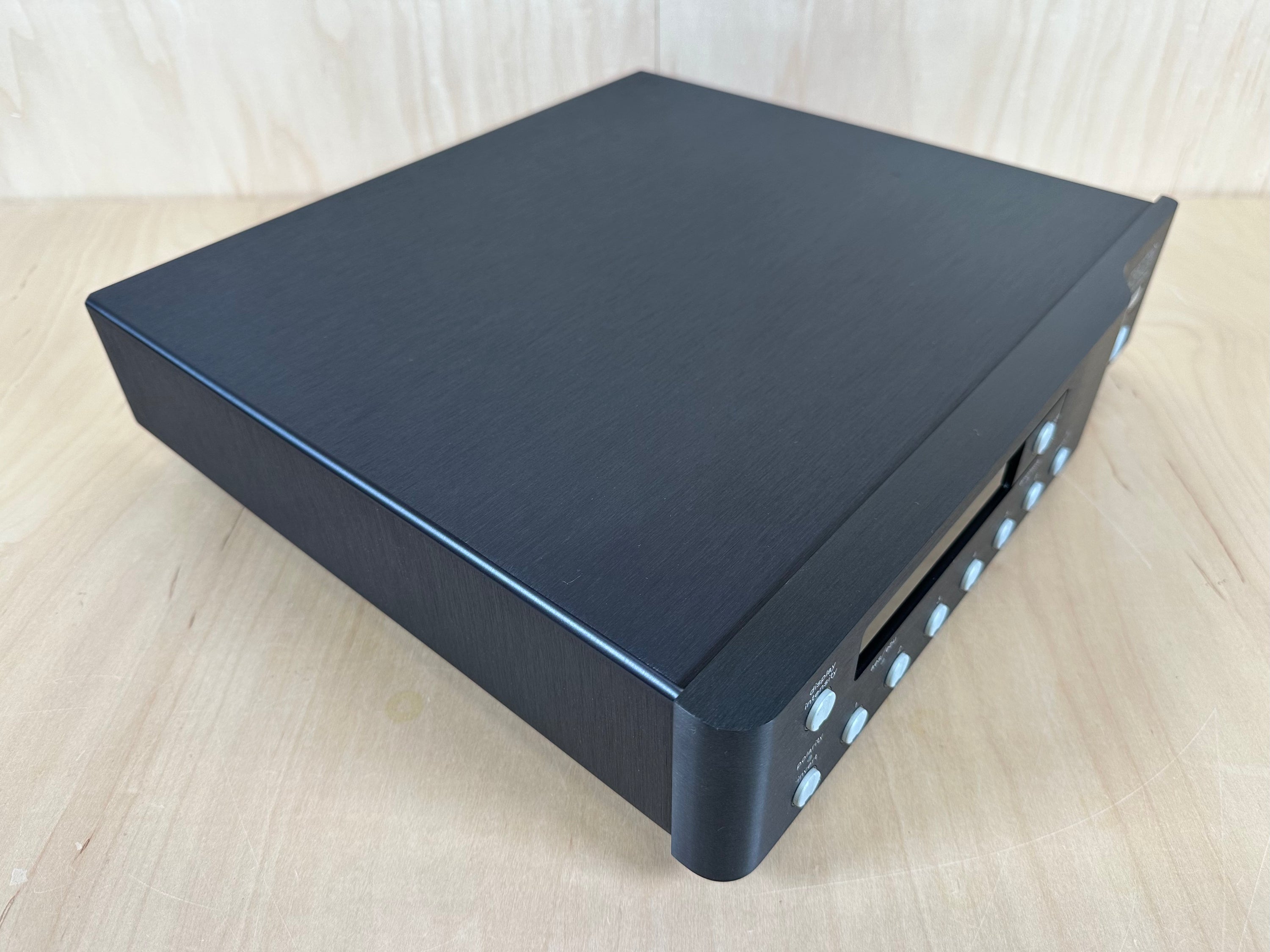

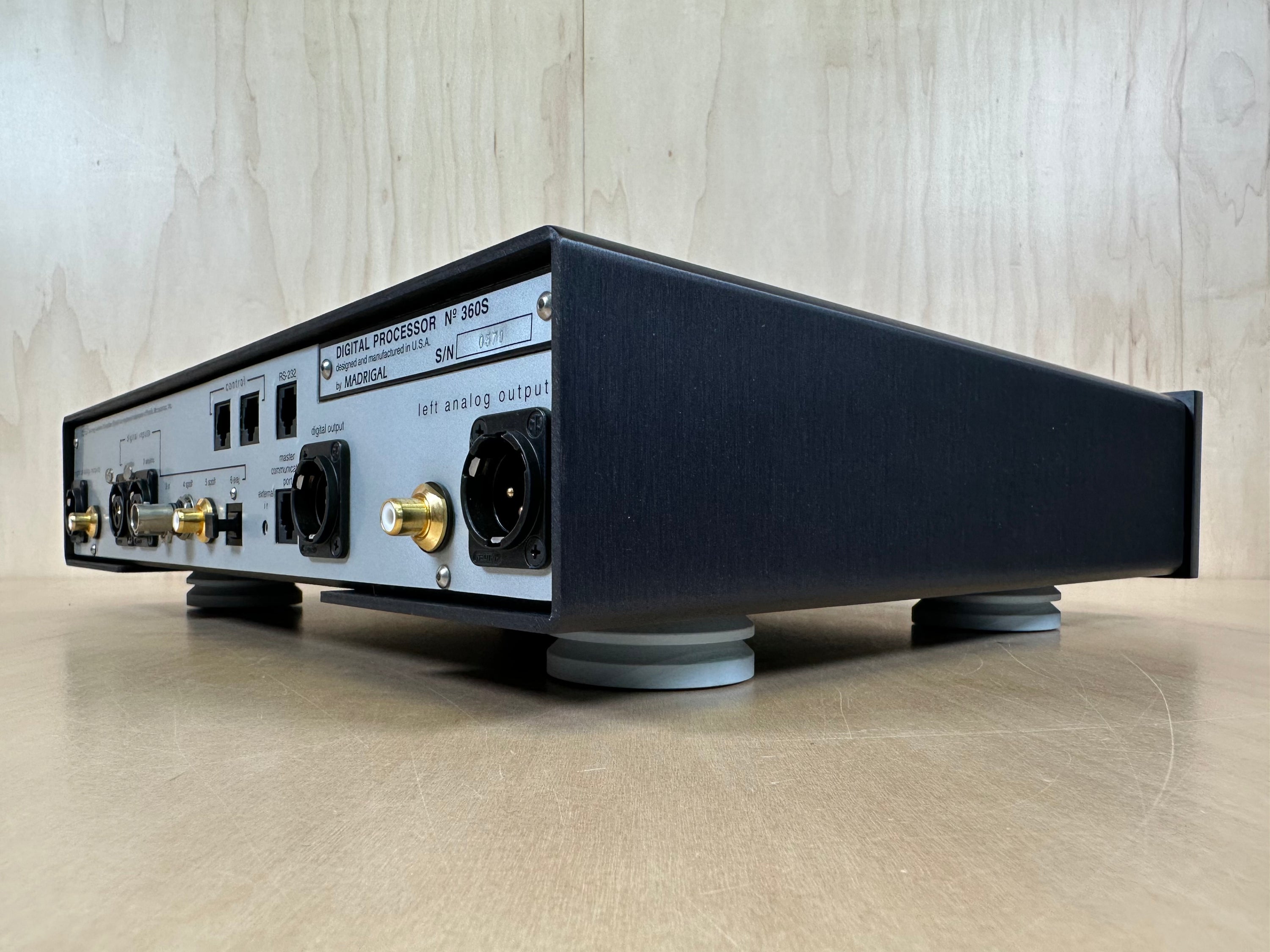

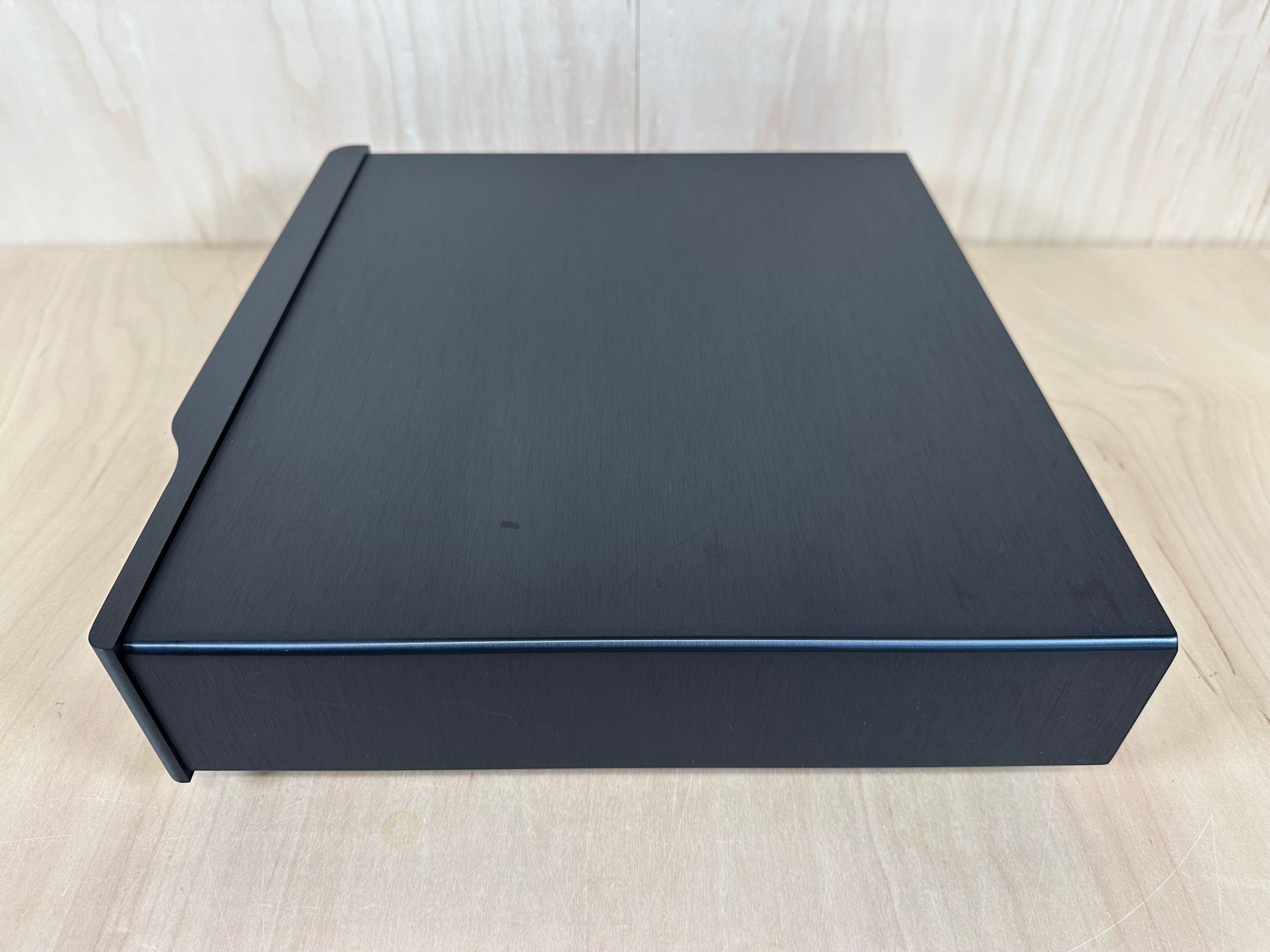

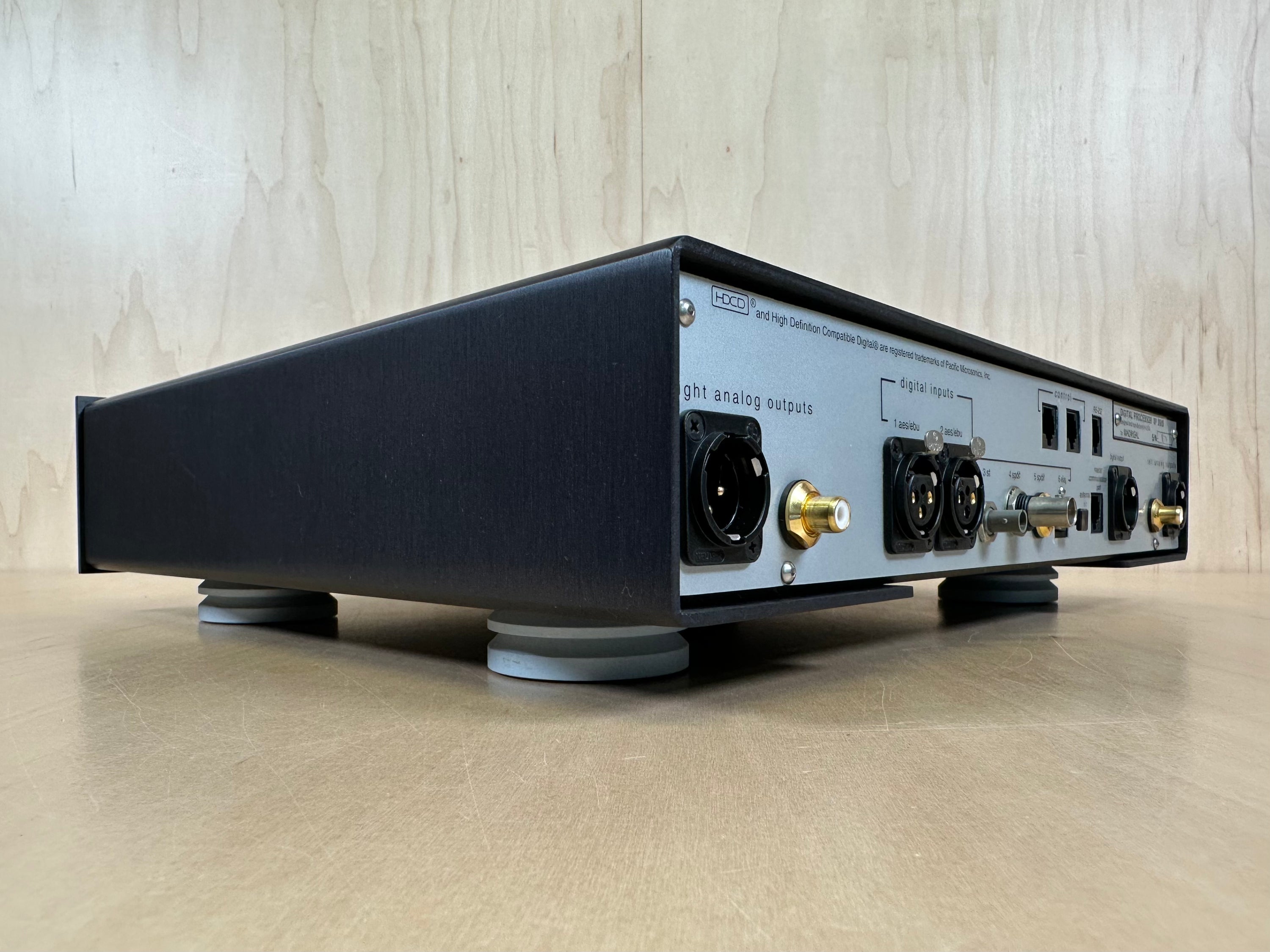

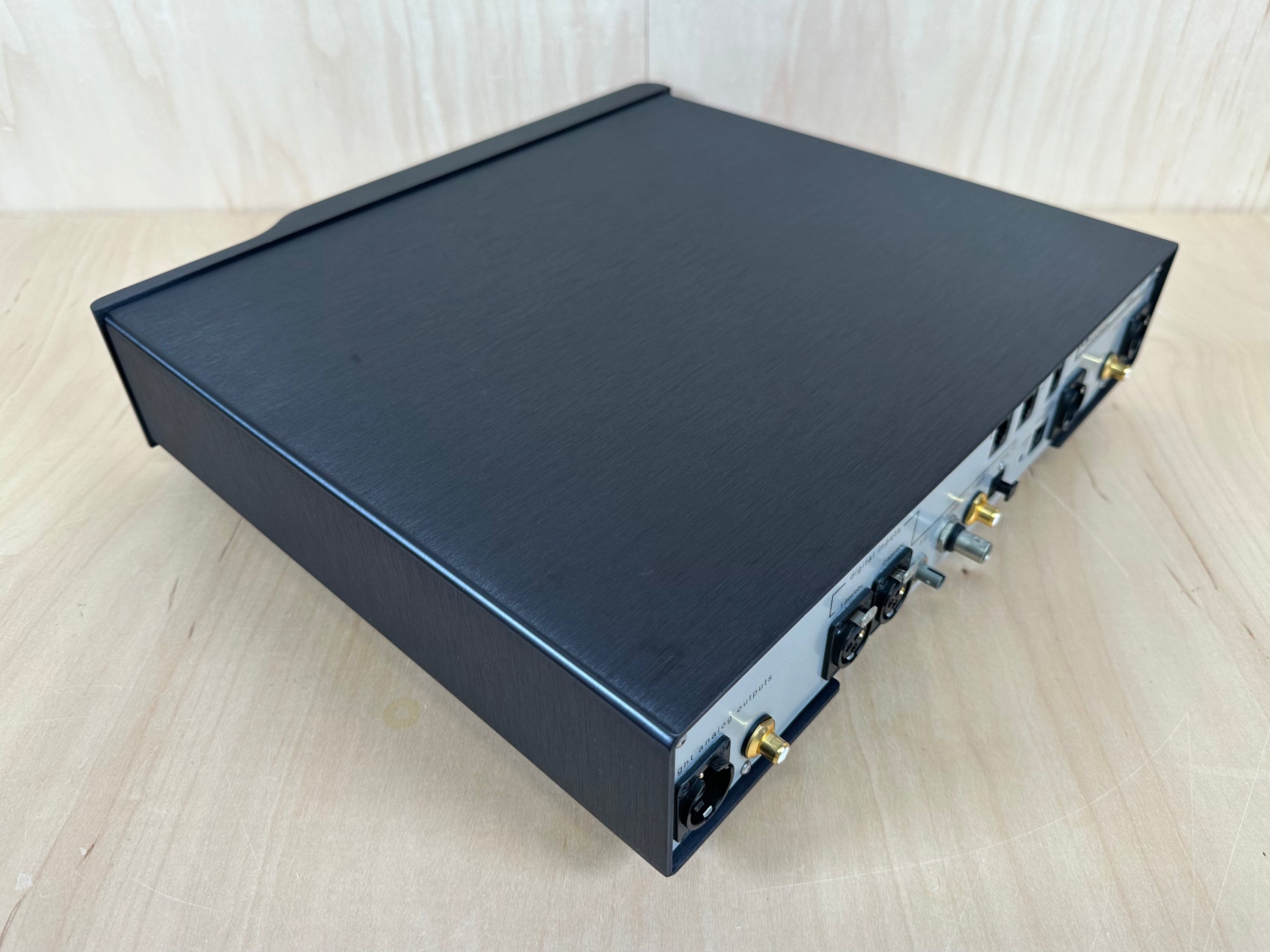

The 360S is in very good physical condition. Some minor blemishes on the case can be seen in the photos, however the unit has no dents or deep scratches. Like all Levinson gear, the build quality of this extremely clean DAC has Military spec components through out. The unit comes with the owner's manual, and 90 degree power cable. See the attached images for more details on the physical condition.
We don't have the original box for this unit, but we take packaging and shipping seriously. We spare no expense and use heavy duty boxes, and polyethylene foam when boxing up our gear for shipping. This unit will be double boxed, with the inner box suspended within the oversized outer box.
The DAC will ship fully insured, and a signature will be be required upon delivery.
Technical Specifications:

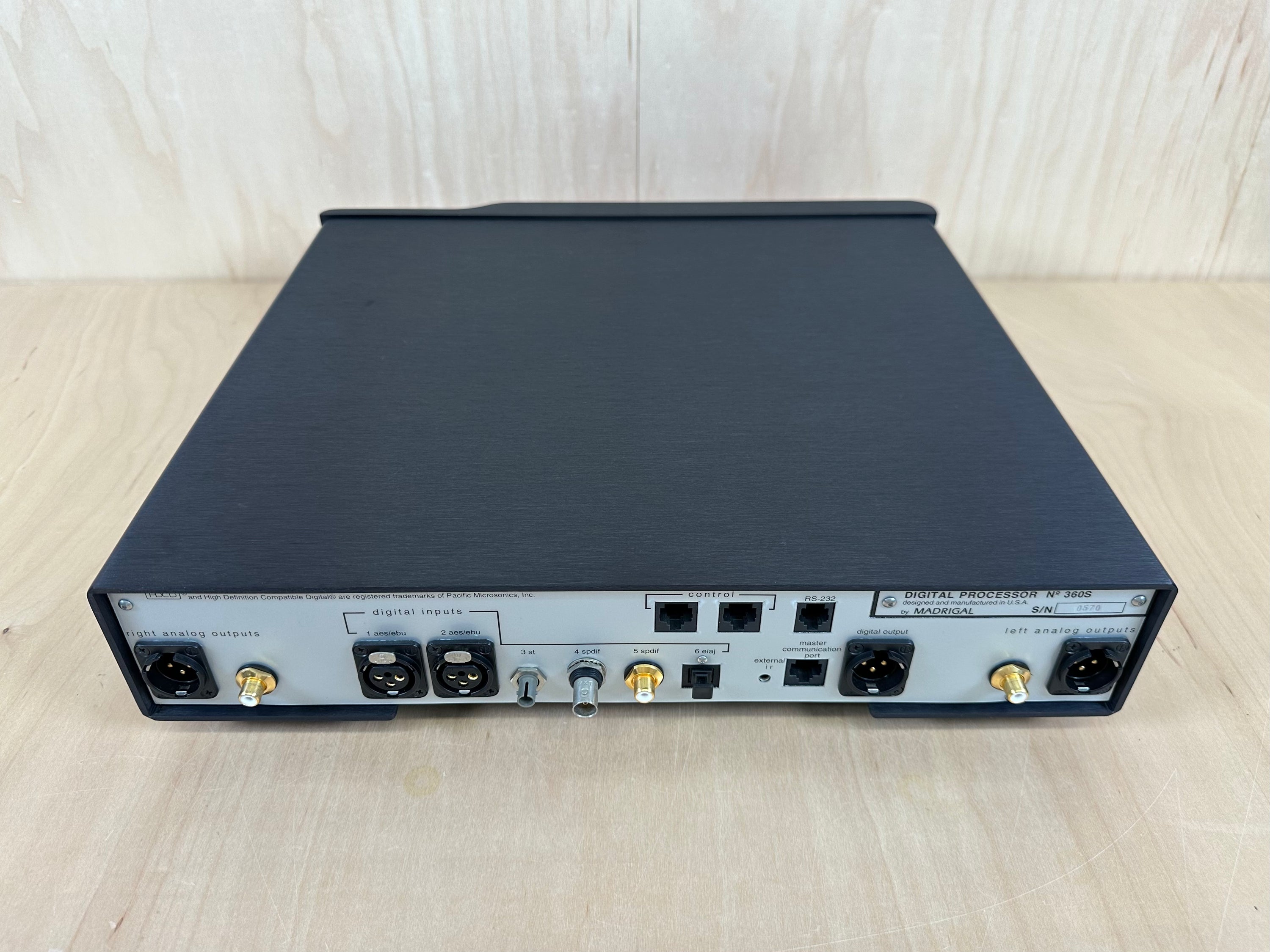

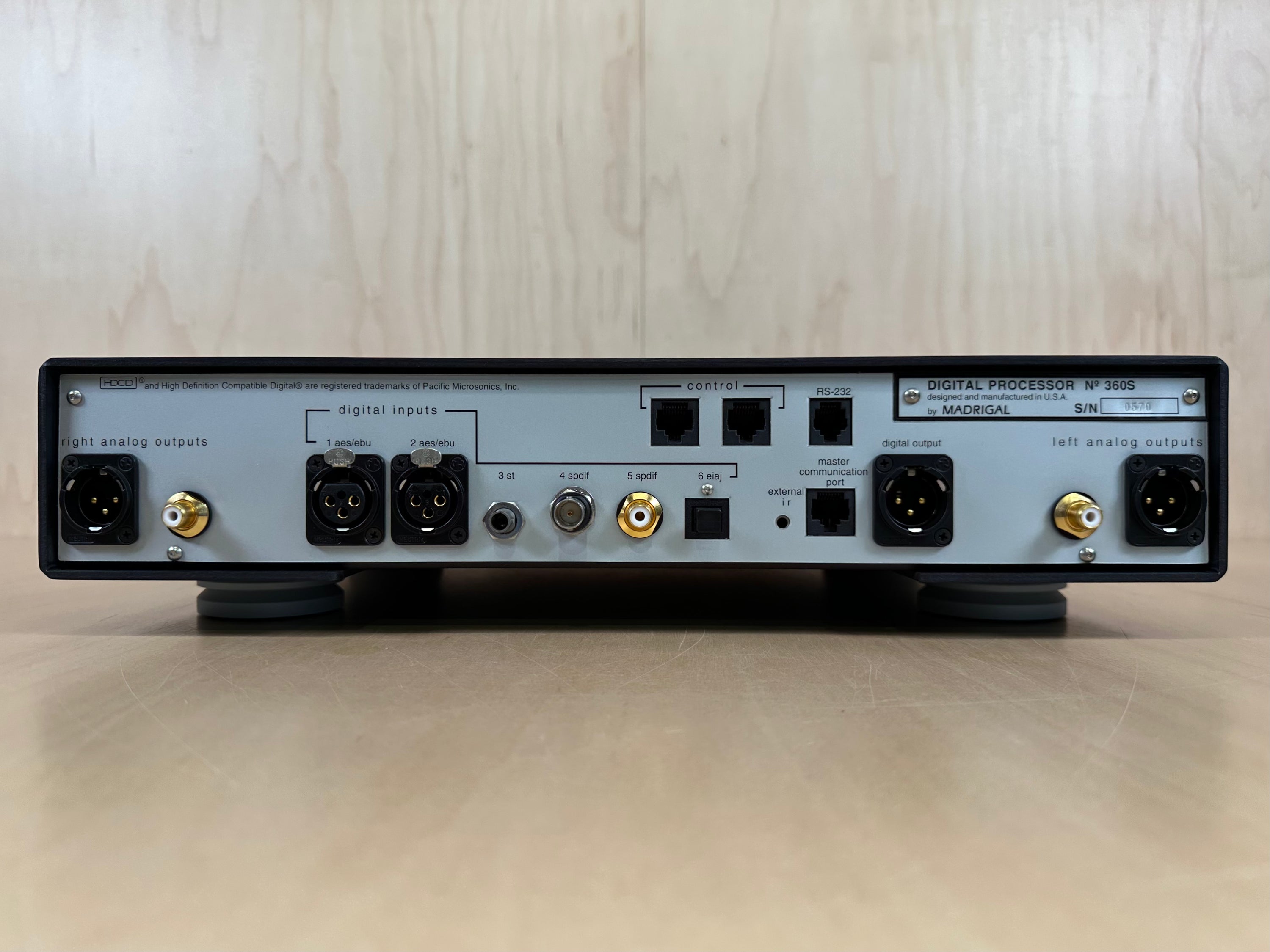

Input complement, Nº360S:
2 x XLR-type female connectors
1 x RCA-type female connectors
1 x BNC-type female connectors
1 x ST-type connector
1 x EIAJ-type connectors

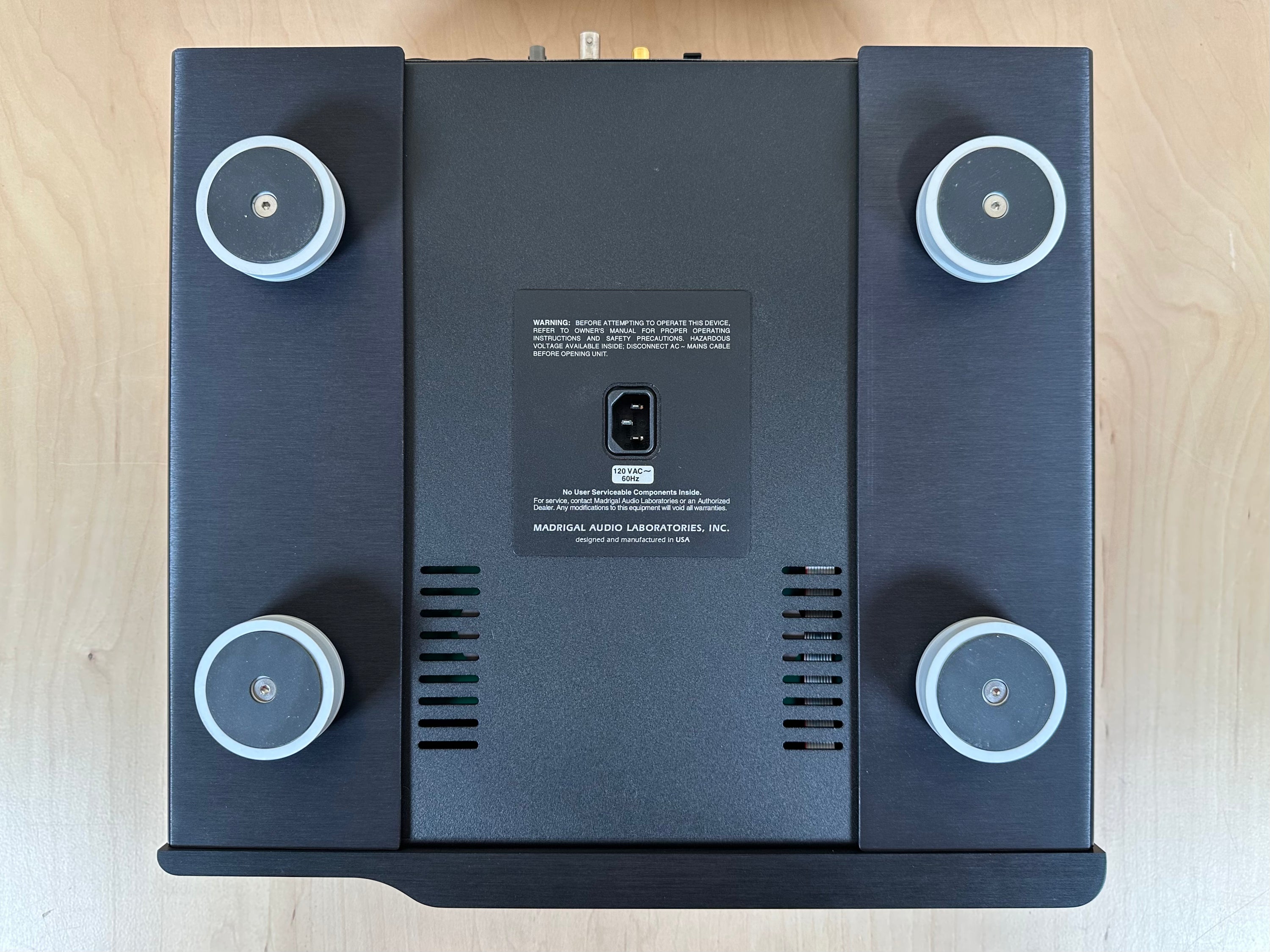

1 x IEC mains connector (on bottom)
1 x 1⁄8" mini-jack connector for IR repeater
1 x IEC AC mains receptacle
1 x RJ-45 communications port (PHASTLink™)
Output complement, Nº360S:
1 x pair XLR-type male connectors (analog)
1 x pair RCA-type female connectors (analog)
1 x XLR-type male connector (digital)
1 x RJ-45 communications port (PHASTLink™)
1 RJ-45 communications port (Mark Levinson Linking™ master)
Frequency response: 10Hz - 20kHz +0dB, –0.2dB
Total harmonic distortion (THD): 0.001% @ 1 kHz, 0dB, A-weighted
Dynamic range: 98dB (or better)
Signal-to-noise ratio: 105dB
Channel separation: Better than 110 dB
Intermodulation distortion (SMPTE IMD): Less than 0.005%
Digital-to-analog conversion: Dual differential 24-bit DACs
Digital filter: 8x oversampling, 24-bit throughput
Analog filter: Bessel-tuned, linear phase to 40kHz
Low-level linearity: Deviation unmeasurable to below –70dB,
approximately +1.7dB below –90dB (undithered, referenced to 0dB @ 1kHz)
Output impedance: Less than 6Ω
Mains voltage: 120V
Mains frequency: 60 Hz
Mains consumption: 50 watts
