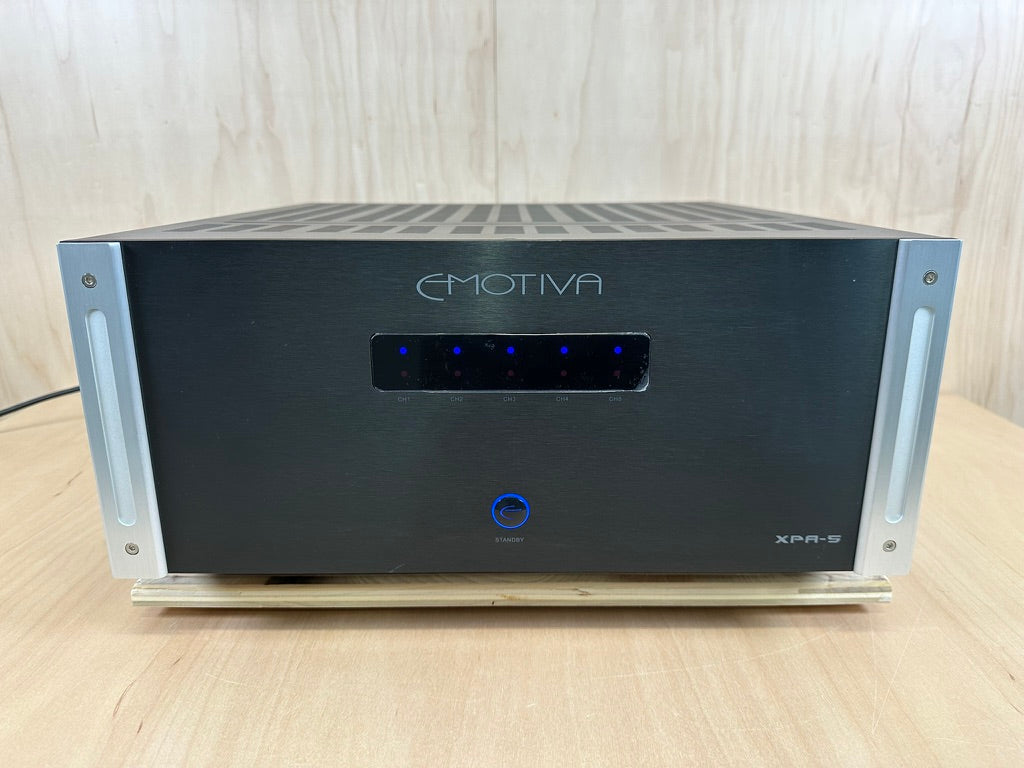

Emotiva XPA-5 Gen 2 Five Channel Amplifier

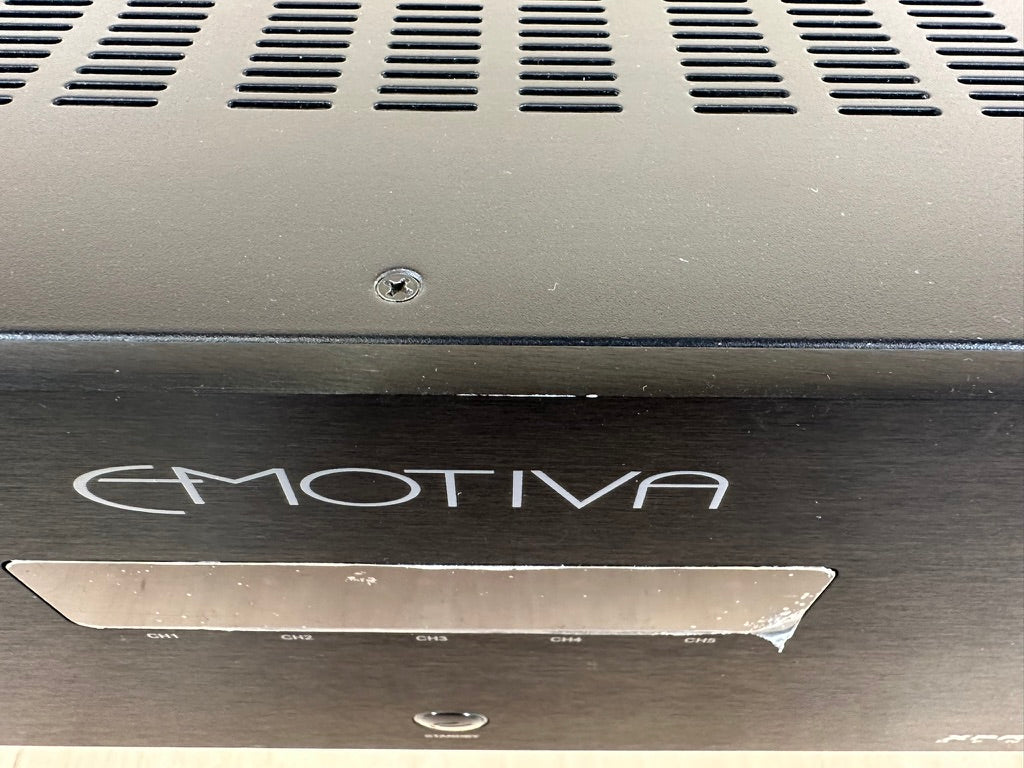

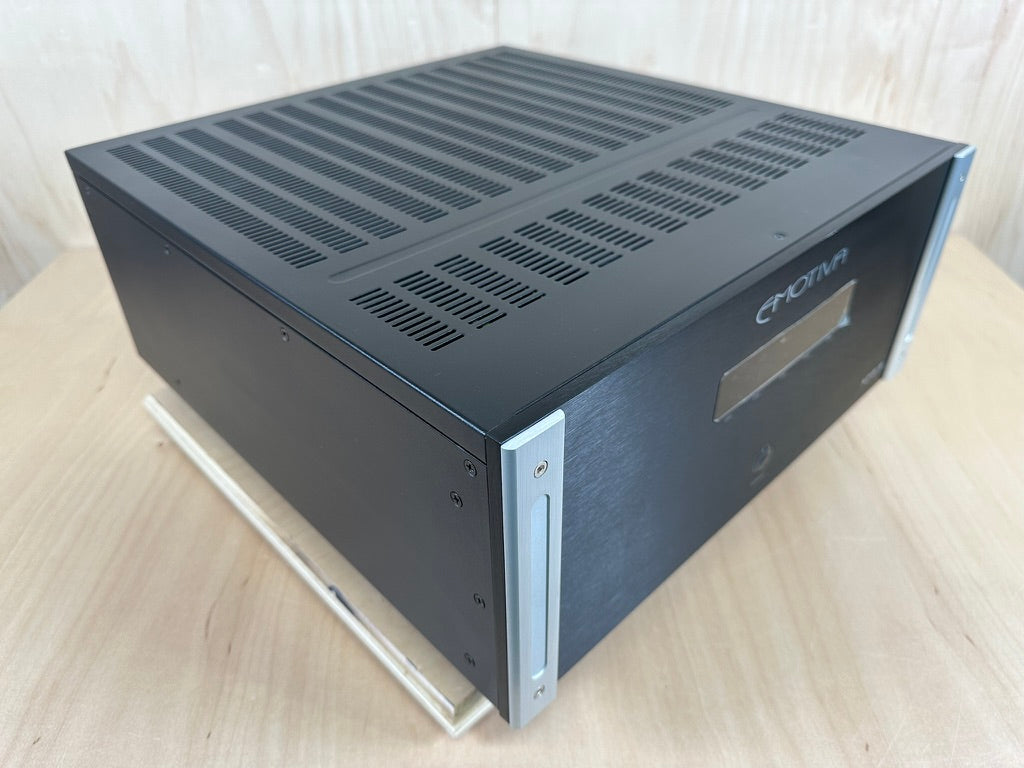

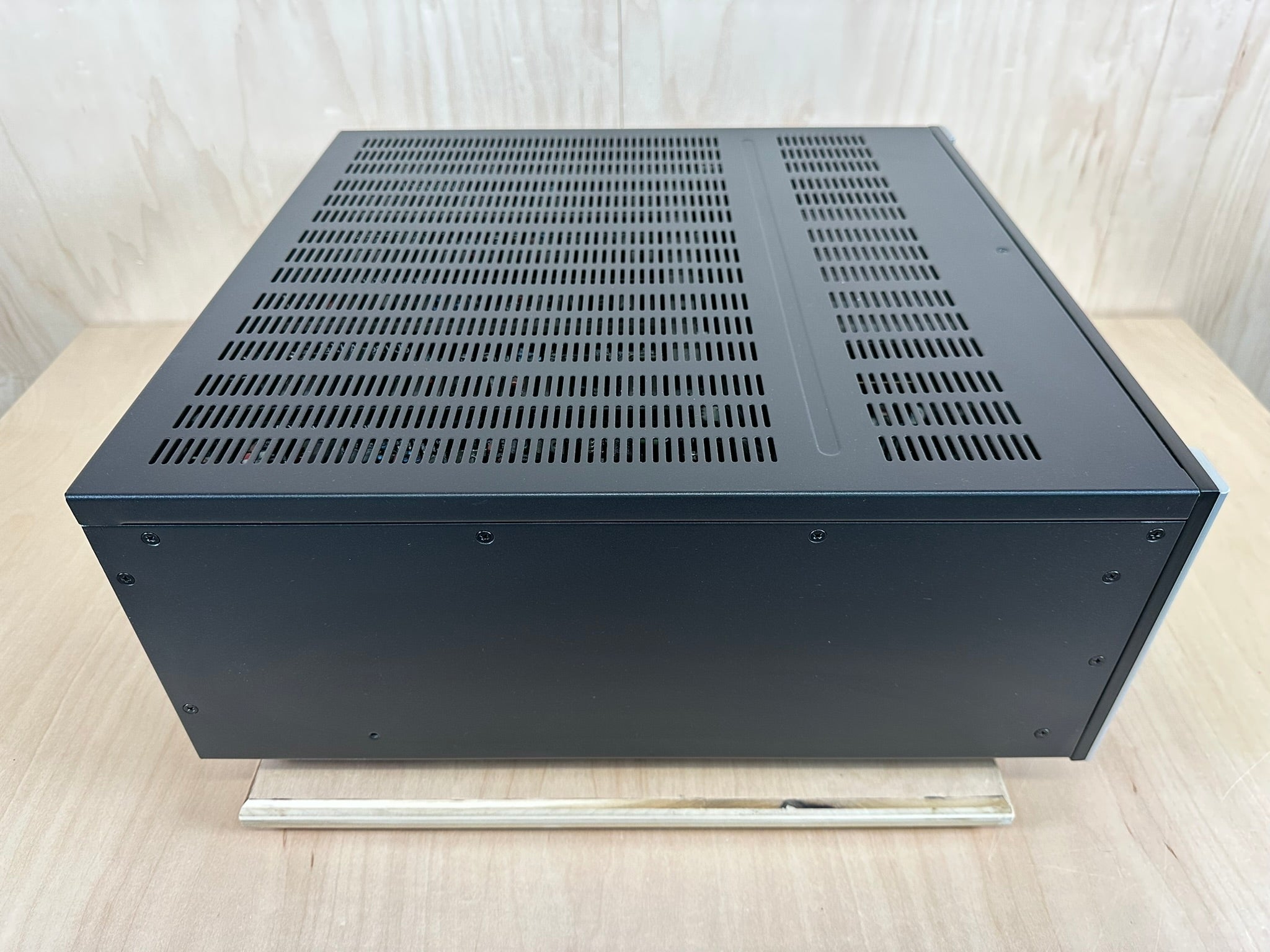

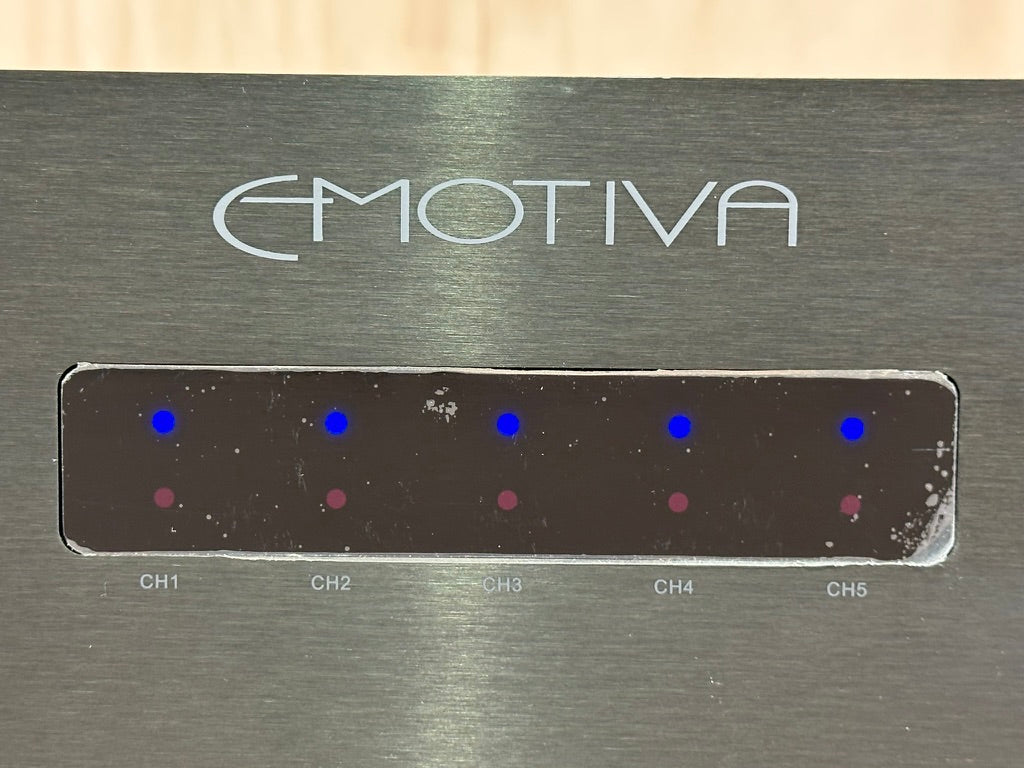

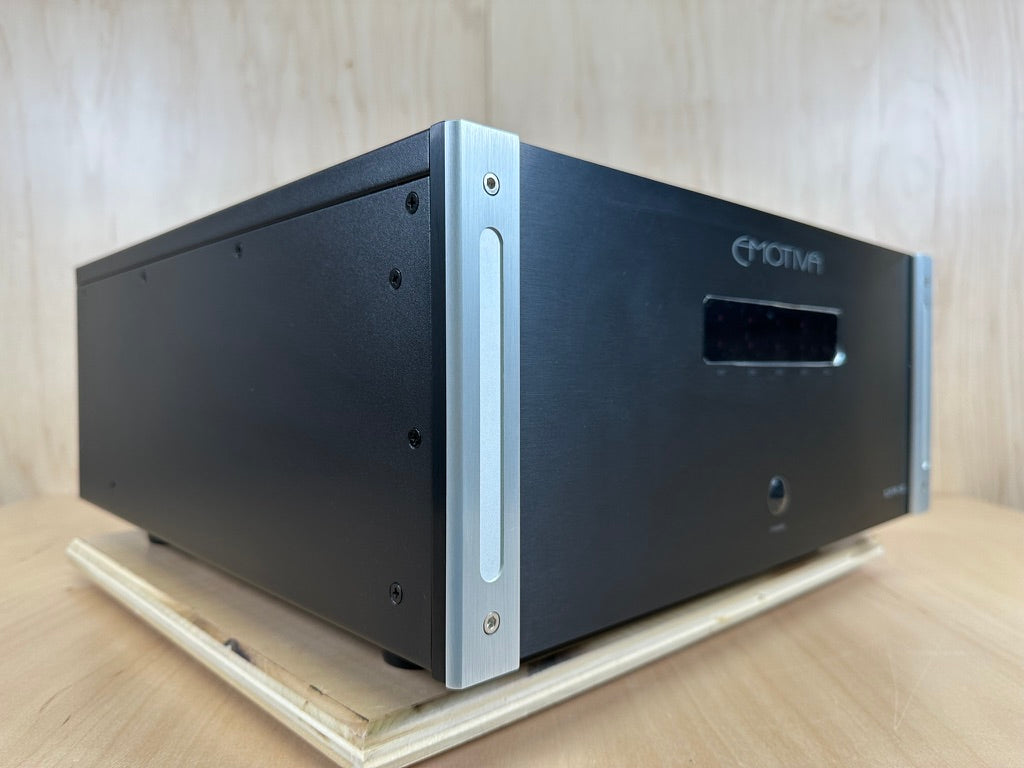

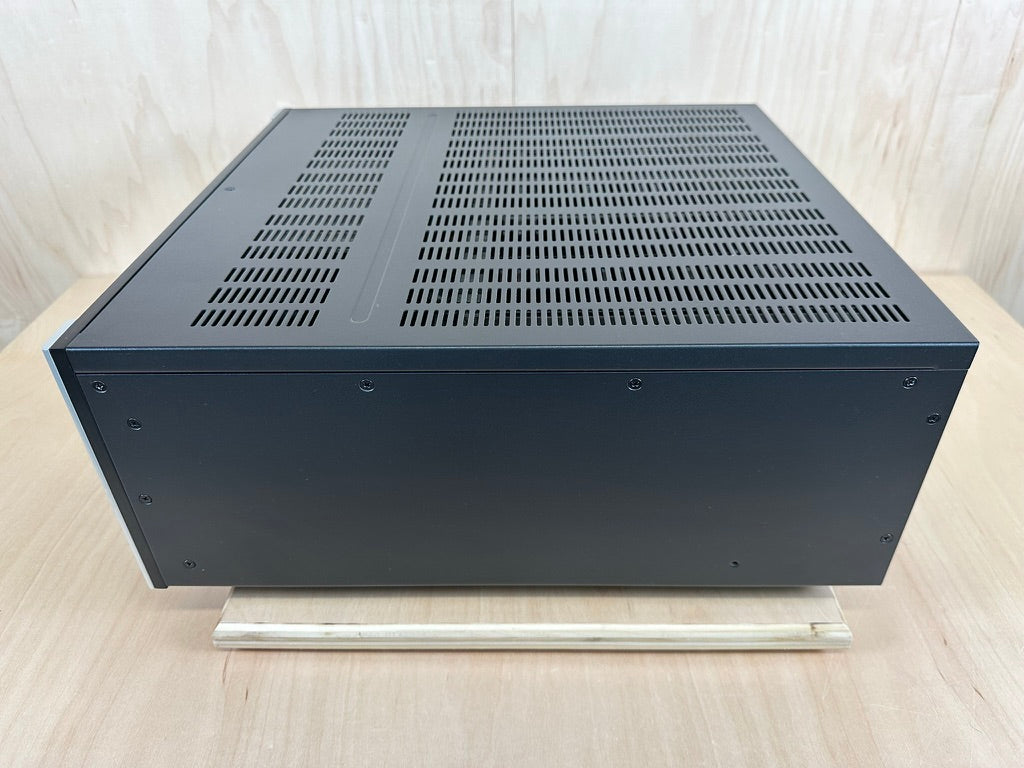

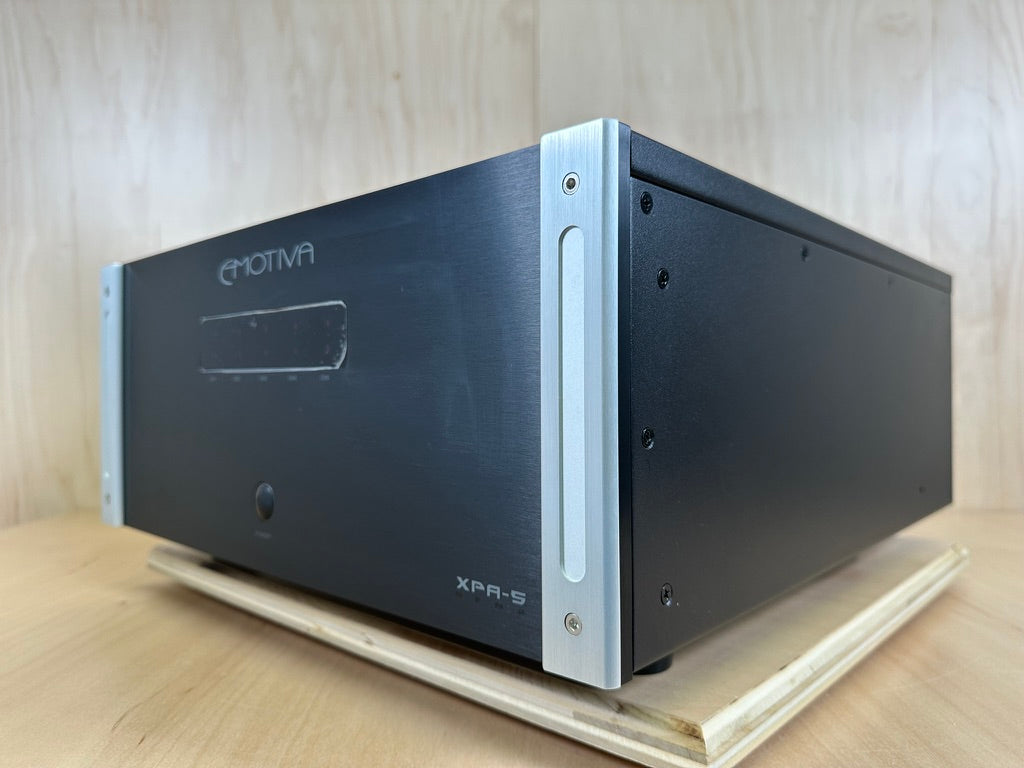

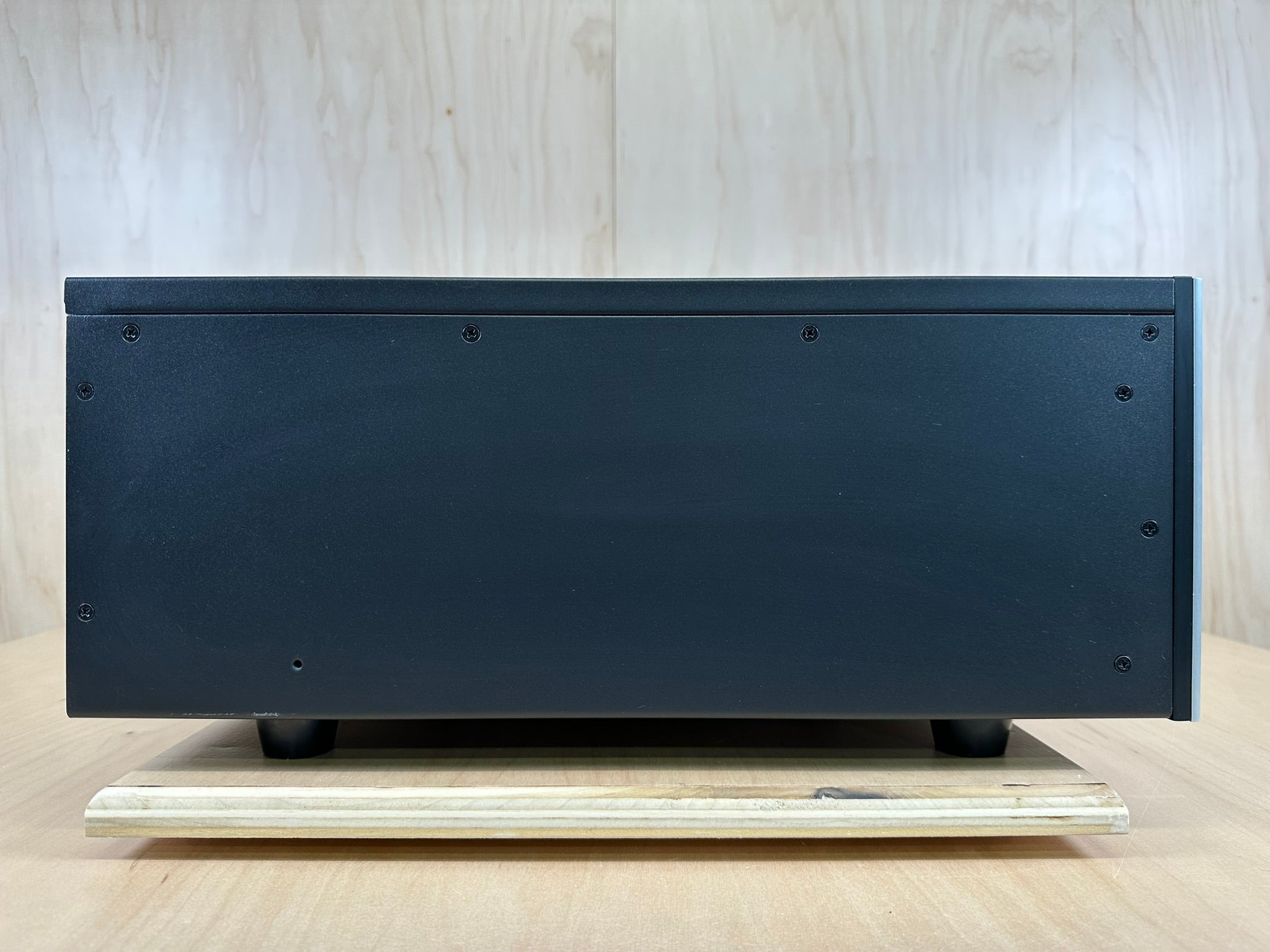

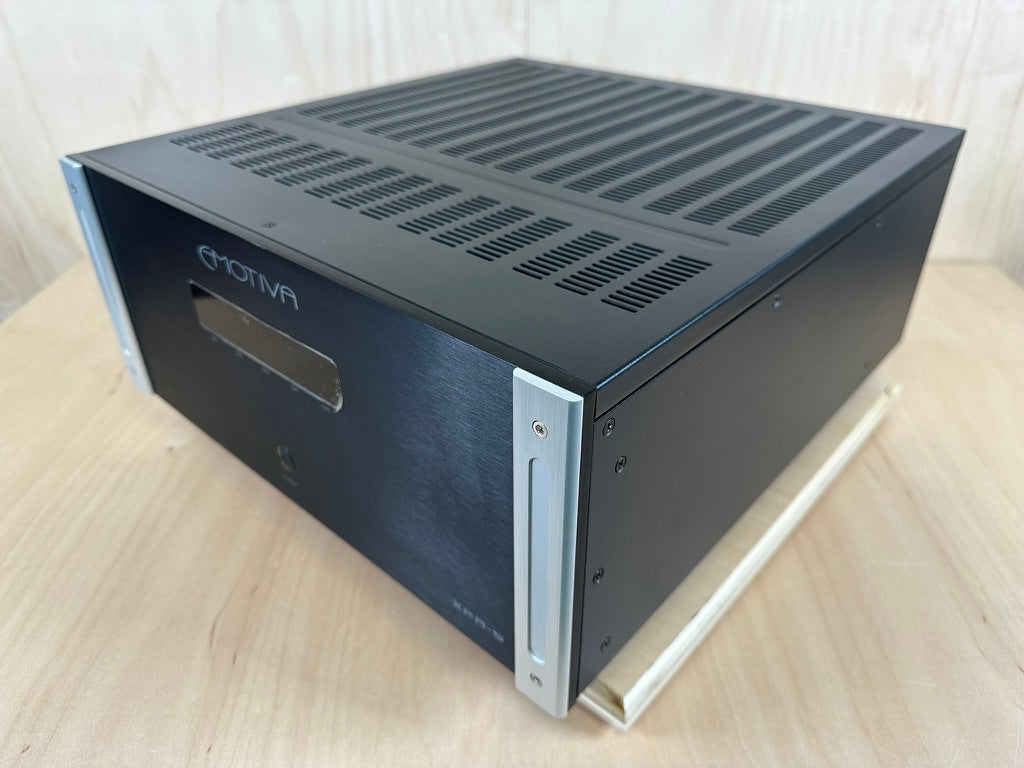

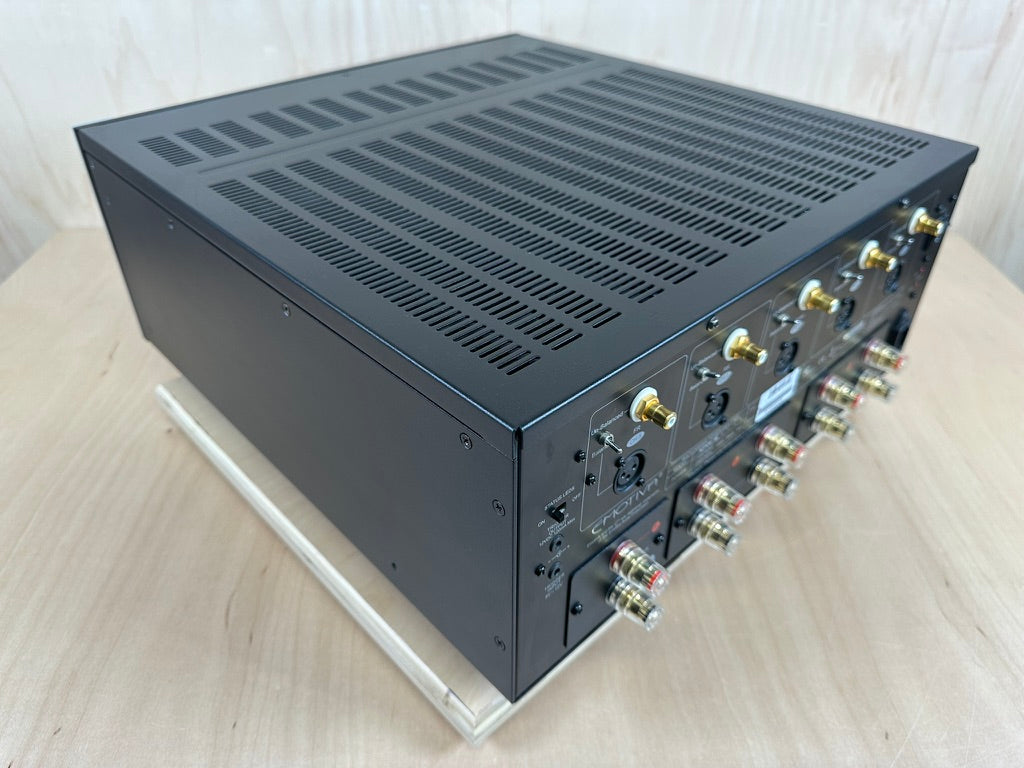

For sale, we have a one owner Emotiva XPA-5 Gen 2 Five Channel Amplifier. This was a backup amp, and saw little use in the previous owners system. The amp is in perfect working order, and very good physical condition, with only minor blemishes, no deep scratches or dents. The plastic film is still on the display panel, so we left it for the next owner to remove. See the many pictures in the listing for further details.

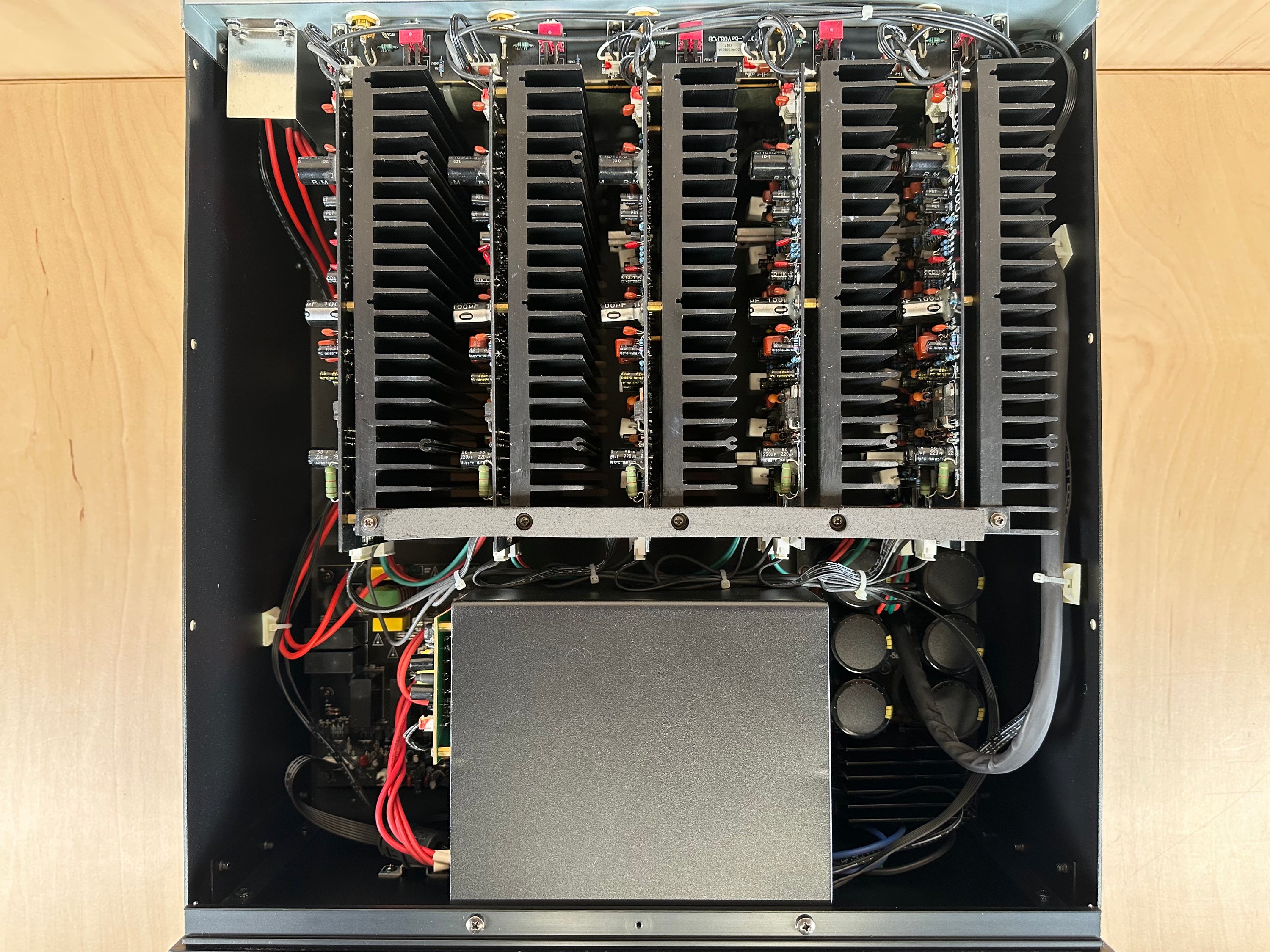

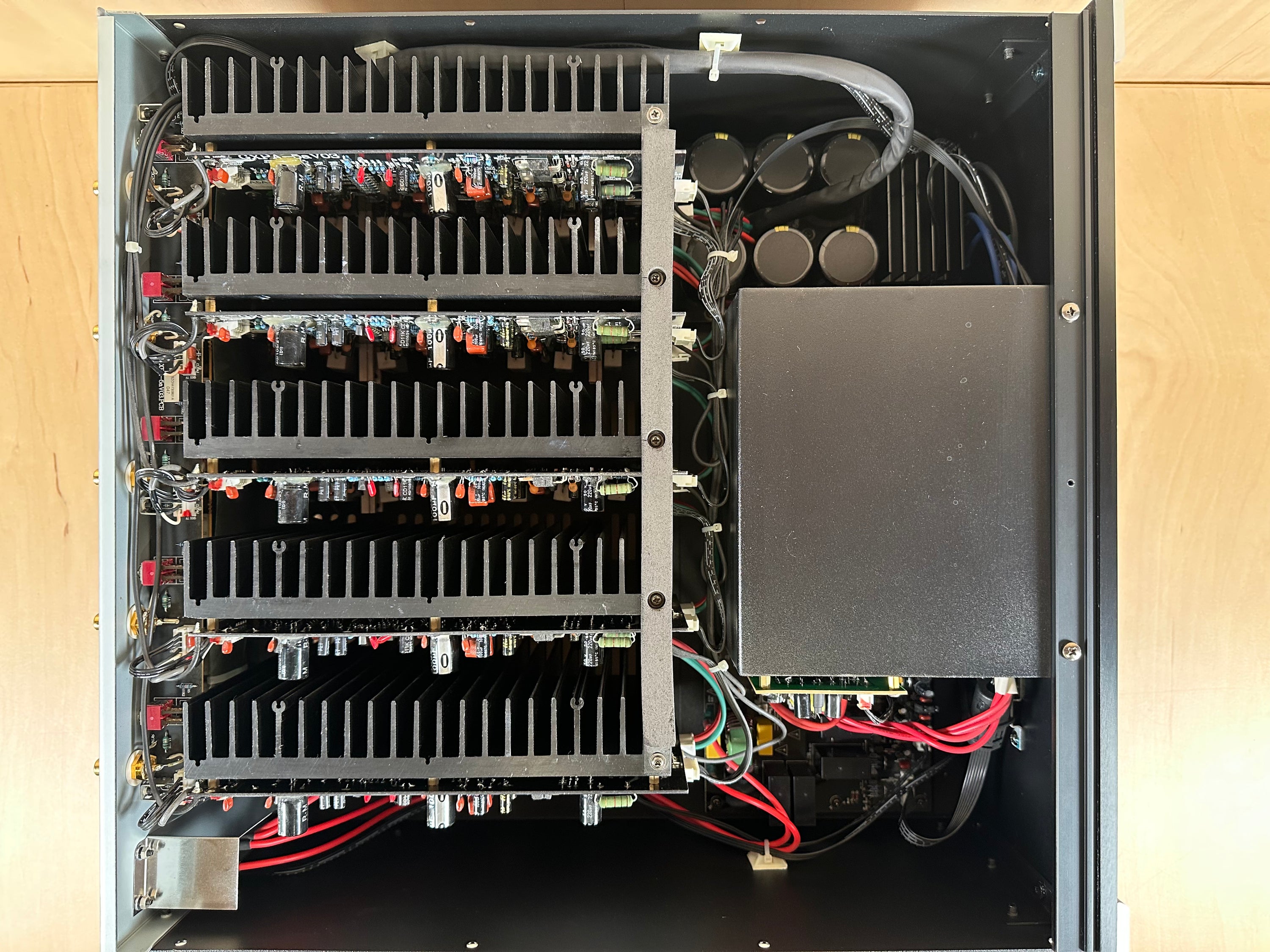

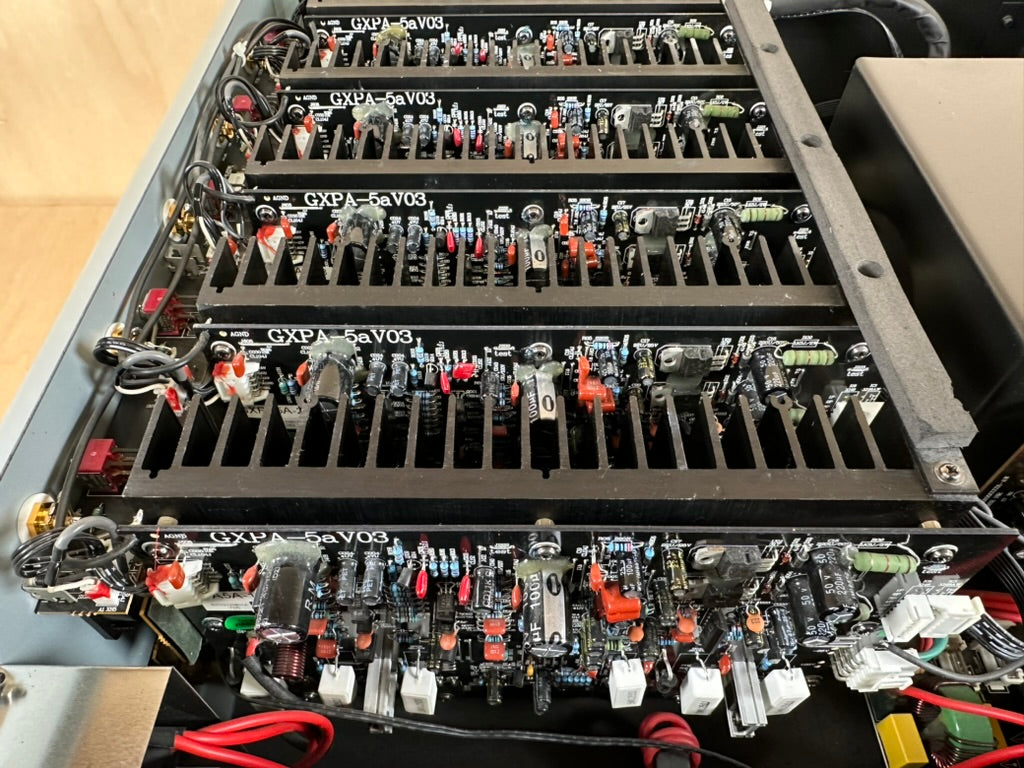

On our bench, we opened up the amp where it passed our visual inspection. The amp is extremely clean. Capacitors looked good with no bulging or signs of leakage. Resistors showed no signs of cracking or overheating, and the transistors showed no signs of damage. We then tested the amp using our Sencore PA81 amplifier analyzer. We ran a 1k sine wave into the amp, and on our scope each channel showed a clean wave. The amp easily tested clean at 200 watts per channel into 8 ohms. With the amp testing as it should, we then ran the unit in our house system for a few days where it performed flawlessly.

The XPA-5 comes with the original double box, original packing material, and an AC cord. The box has some wear, so it will be triple boxed using a heavy duty, double walled third box. Water activated, fiber reinforced tape will be used on all seams. Cardboard edging will be applied, and the box will be strapped for added protection during shipping.

Specifications
Topology:
Fully discrete, dual differential, high current, short signal path Class A/B.
Number of Channels: 5.

Power Output (rated power; THD < .1%):
200 watts per channel; all channels driven; into 8 Ohms.
300 watts per channel; all channels driven; into 4 Ohms.
Rated Power Bandwidth (at rated power; 8 Ohm load):
20 Hz to 20 kHz + / - 0.075 dB.

Minimum Recommended Load Impedance:
4 Ohms; which equals one 4 Ohm load or two paralleled 8 Ohm loads.
Frequency Response:
10 Hz to 80 kHz (+ 0 / - 1.5 dB).
THD + noise: < 0.016%.

Signal to Noise Ratio (8 Ohm load):
> 95 dB at 1 watt (A-weighted).
> 119 dB at rated power (A-weighted).
Damping Factor (8 Ohm load): > 500.

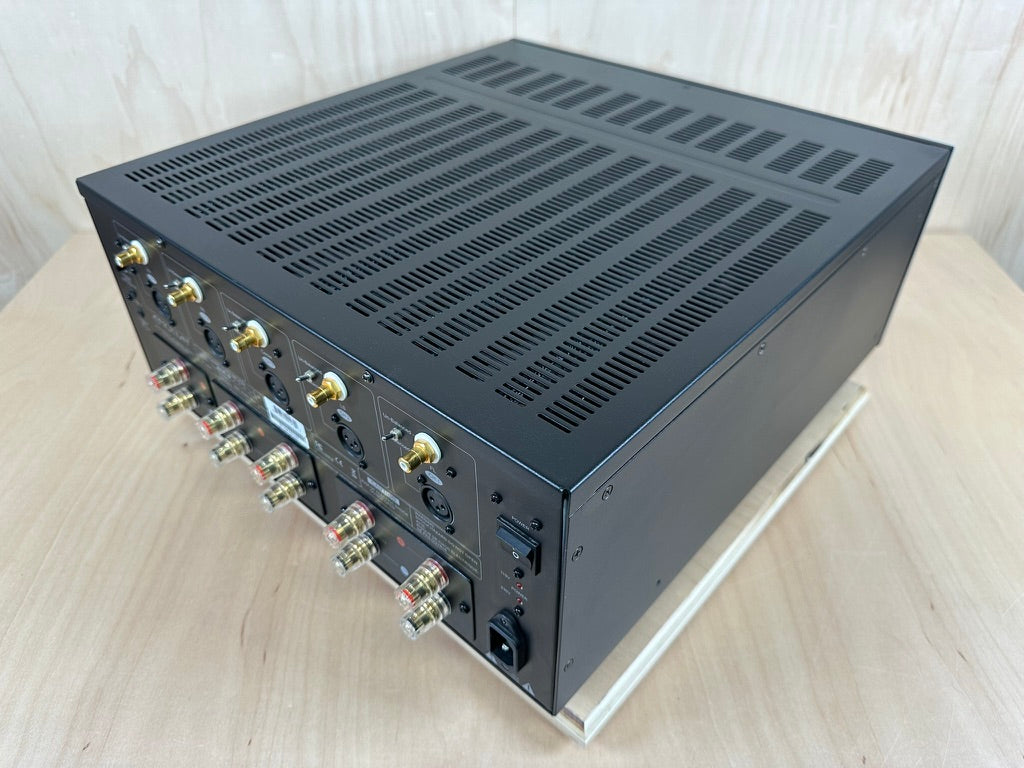

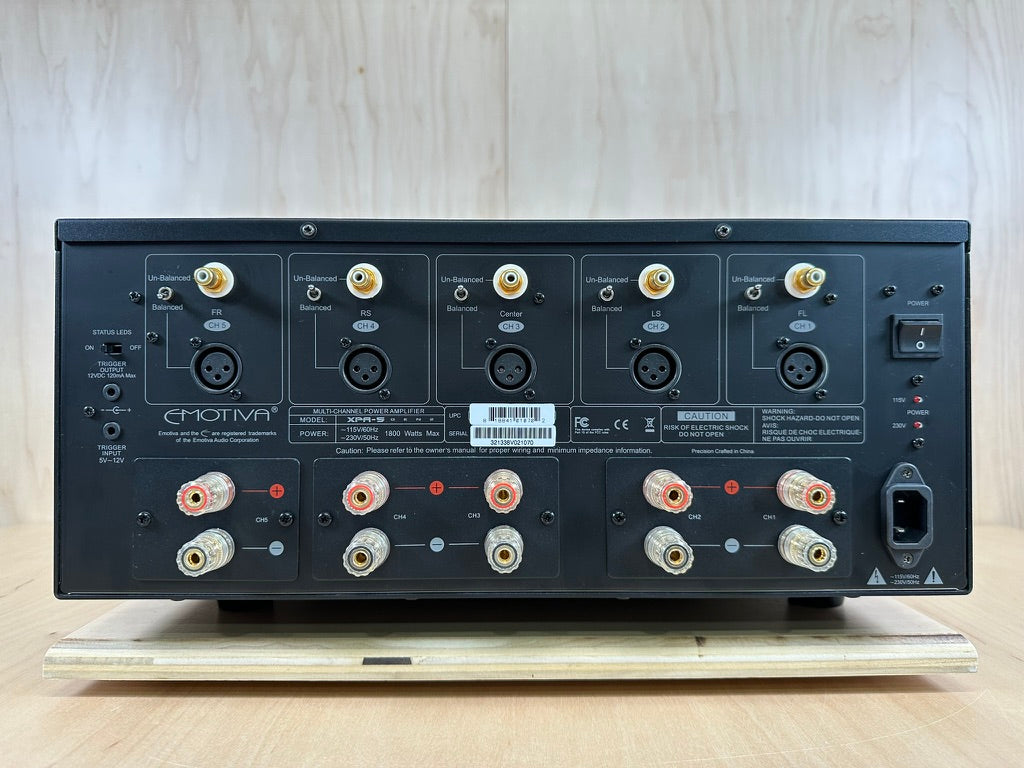

Speaker Output Connections:
Audiophile grade, gold plated, 5-way binding posts.

Power Supply:
60,000 uF of storage capacitance.
1200 VA heavy duty toroidal transformer

Input Sensitivity (for rated power; 8 Ohm load): 1.8 V.
Gain: 29 dB.

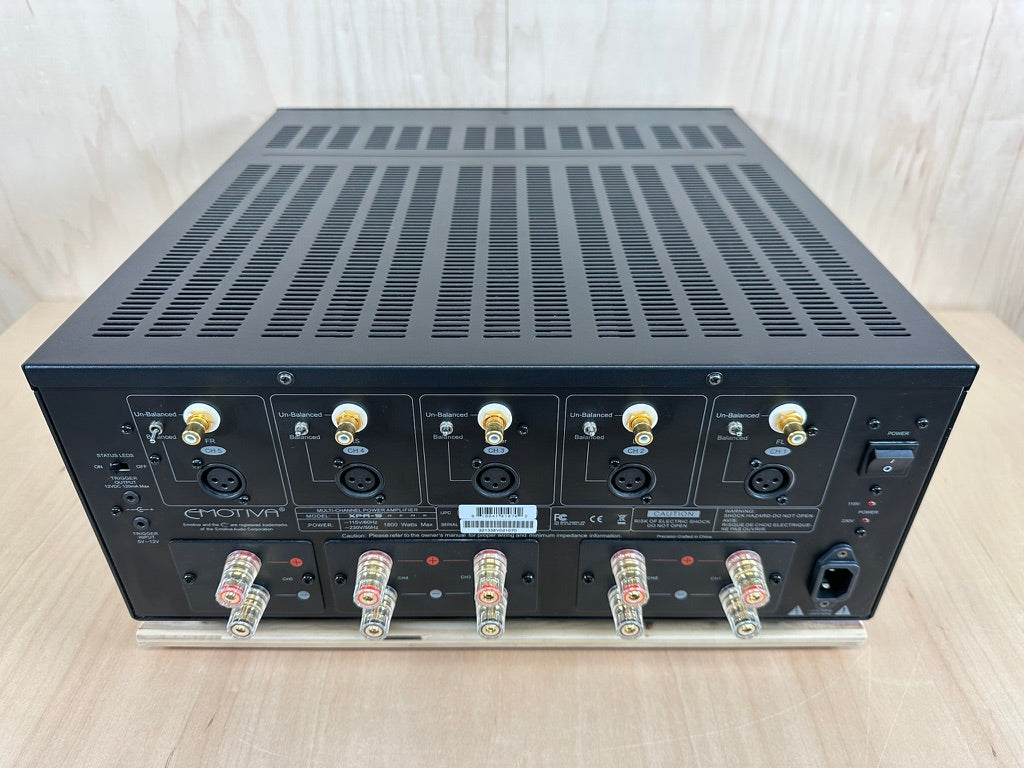

Input Connections:
Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable.
Input Impedance:
33 kohms (balanced).
23.5 kohms (unbalanced).

Dimensions:
17” wide x 7.75” high x 19” deep; unboxed (includes feet and binding posts).
23-1/2” wide x 12” high x 24-3/4” deep (boxed).
Weight:
70.4 pounds unboxed (81.5 pounds boxed).
