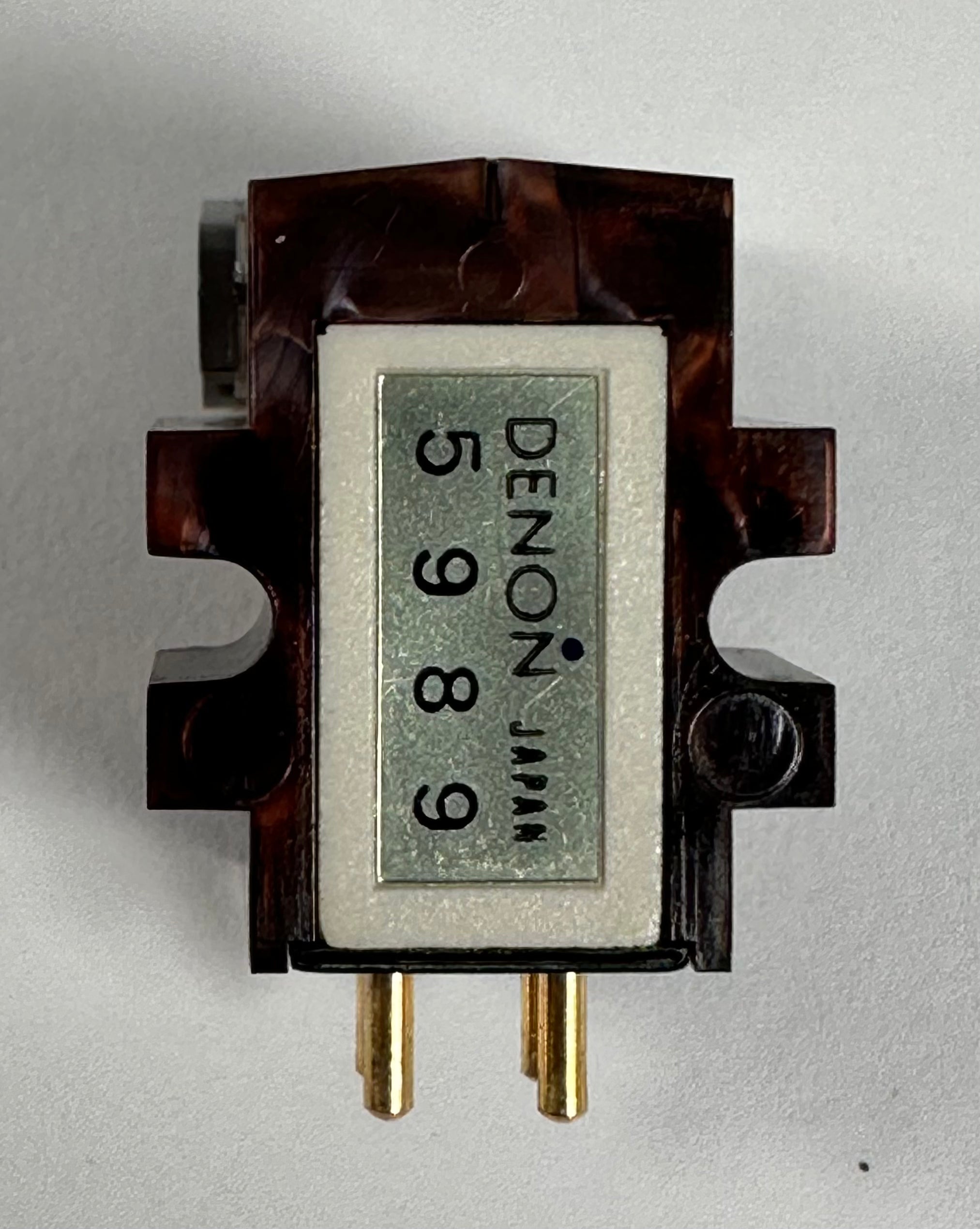

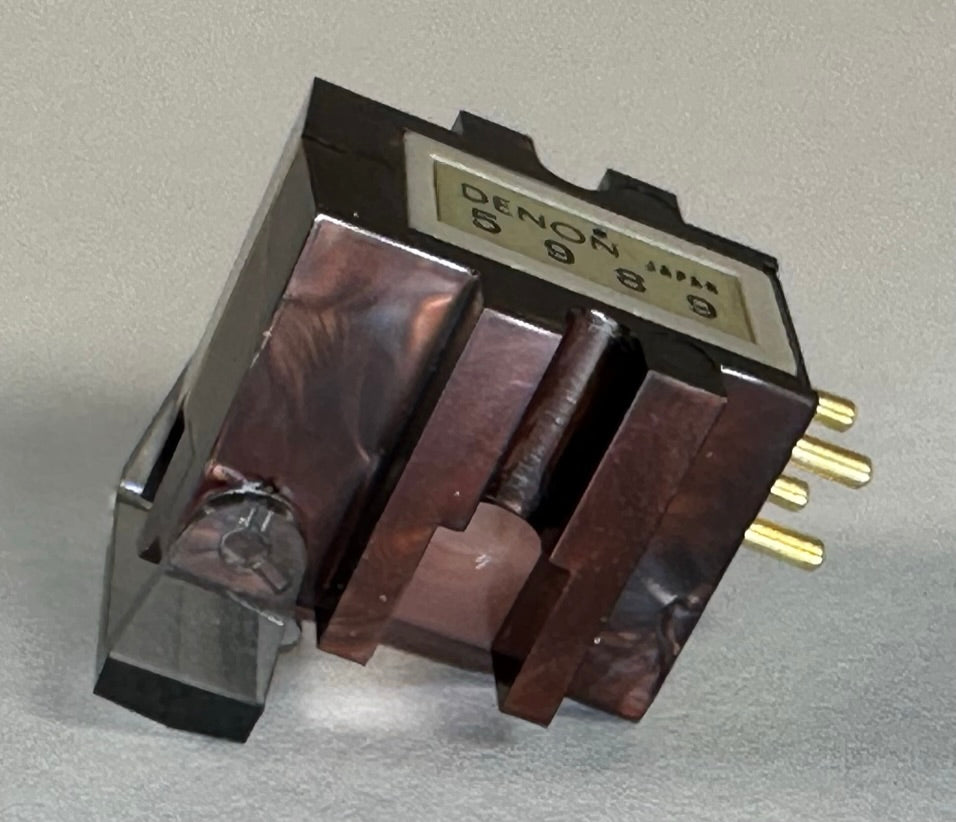

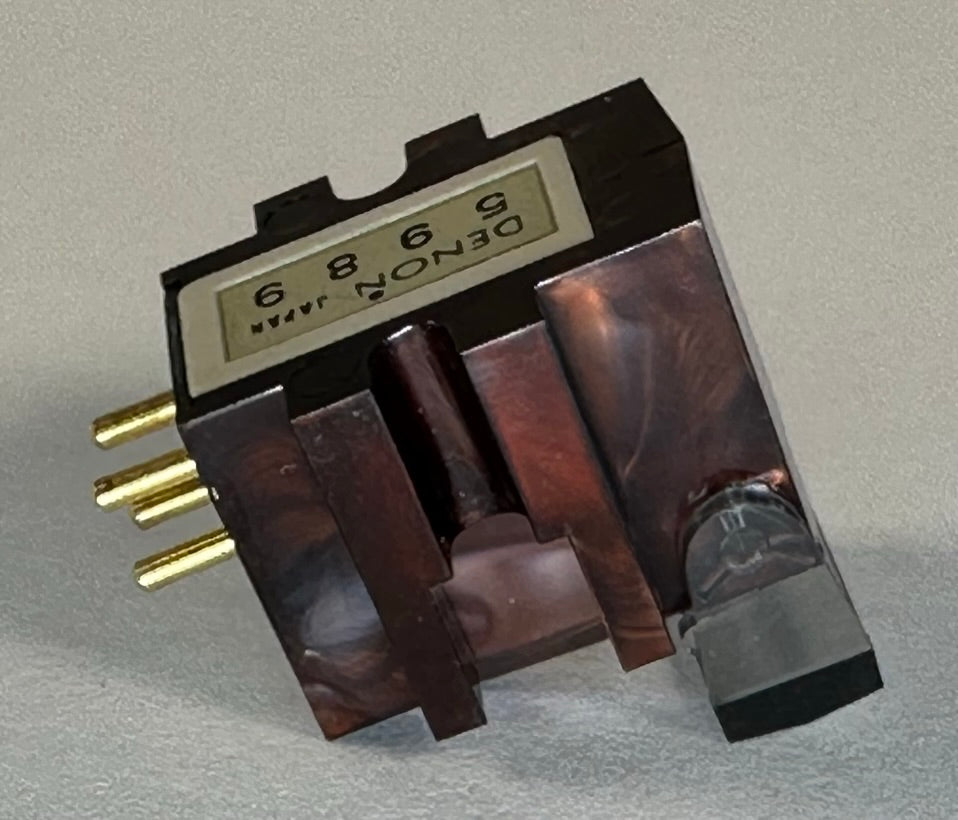

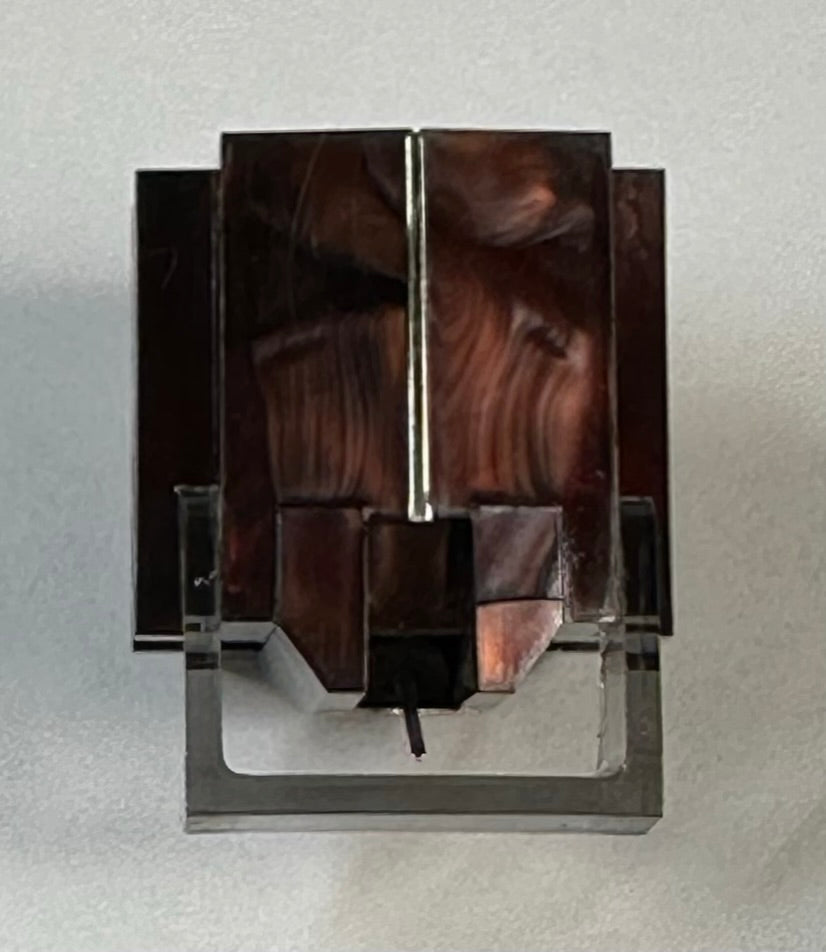

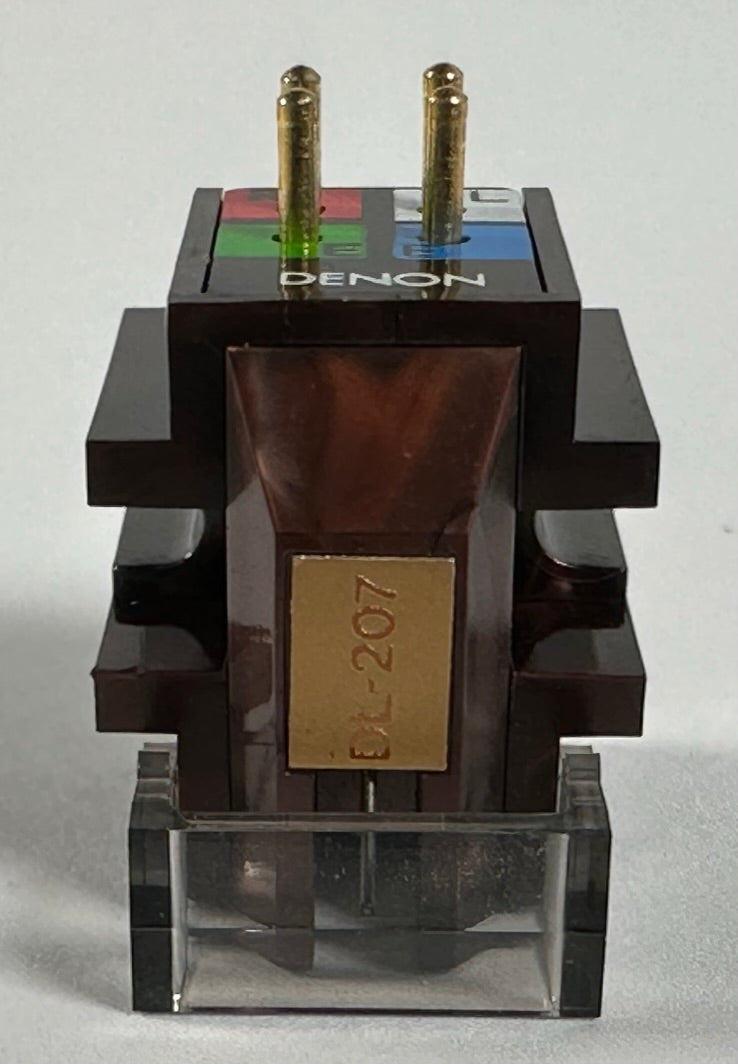

Denon DL-207 Low Output MC Phono Cartridge

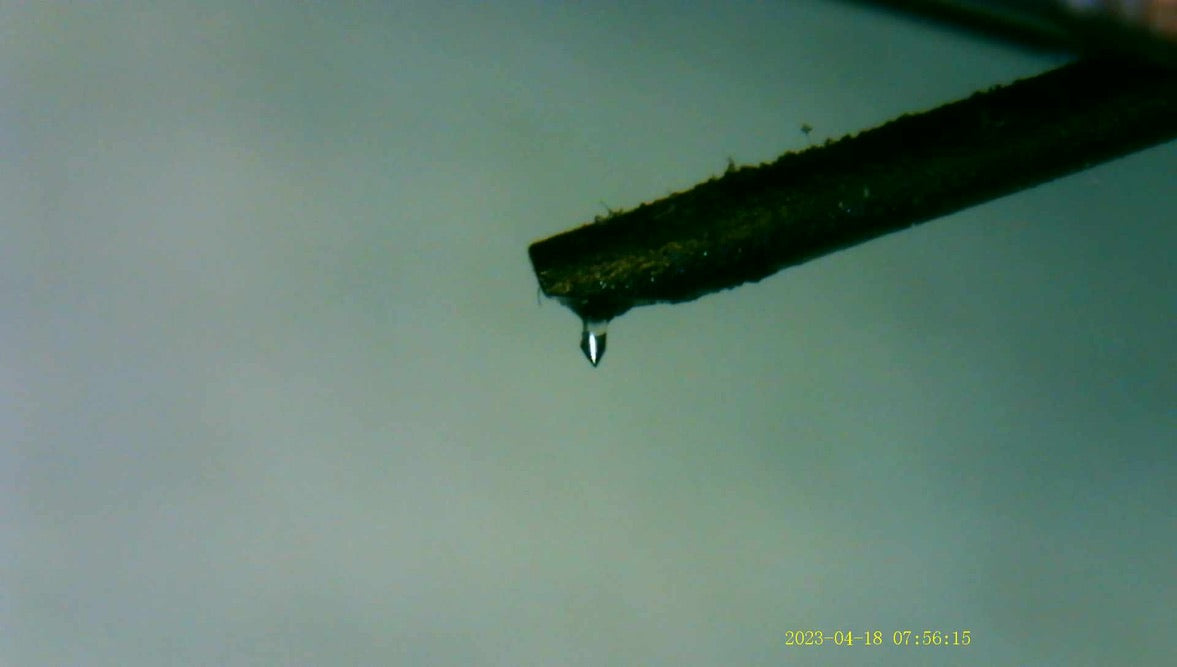

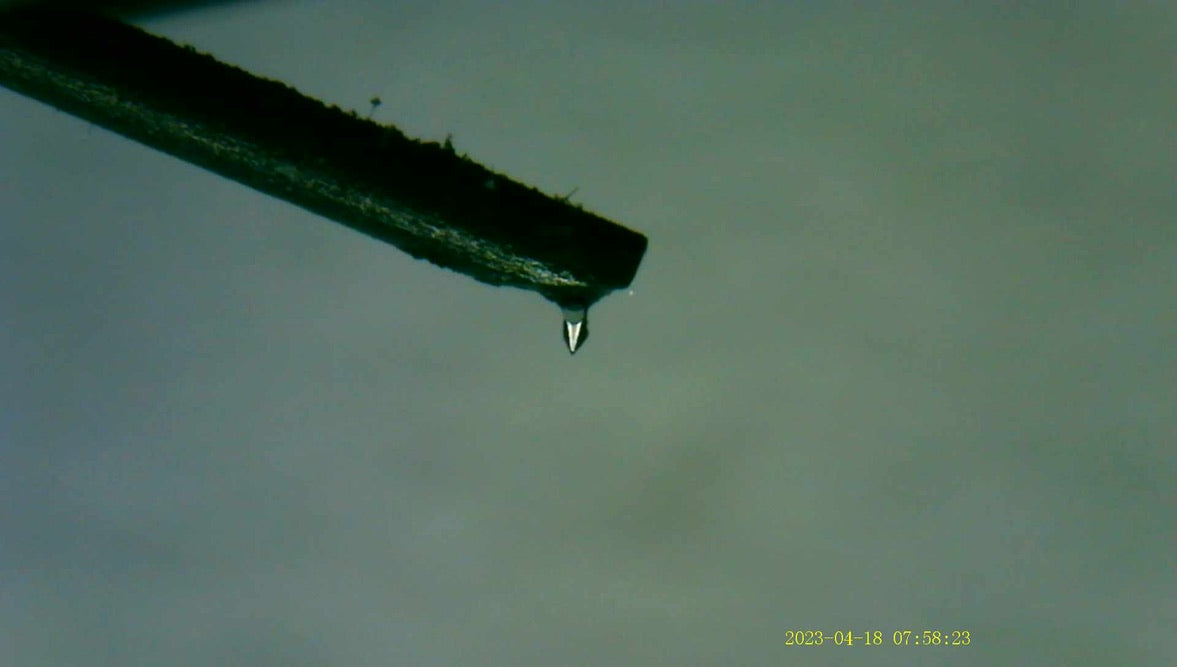

For sale, we have a rare Denon DL-207, Low Output Moving Coil Stereo Phono Cartridge. The cartridge and stylus are both in very good condition. The DL-207 has an amorphous boron cantilever, a two way damping system, and Samarium cobalt magnets. Output Impedance measured 35.9 ohms in the Left channel, and 35.7 ohms in the Right Channel. Output voltage is 0.2mV.

Factory Specifications:

Type: Moving Coil

Output voltage: 0.2mV

Frequency Response: 20 Hz - 60 kHz

Output Impedance: 40 ohms

Load Impedance: More than 100 ohms

Channel Separation: More than 28 db (1 kHz)

Channel sensitivity difference: 1 db or less (1 kHz)

Stylus tip: 0.07 x 0.14 mm special elliptical solid diamond

Dynamic compliance: 13 x 10 -6 cm/dyne

Static compliance: 35 x 10-6 cm/dyne

Tracking force: 1.4 g + or - 0.2 g

Weight: 4.7 g
