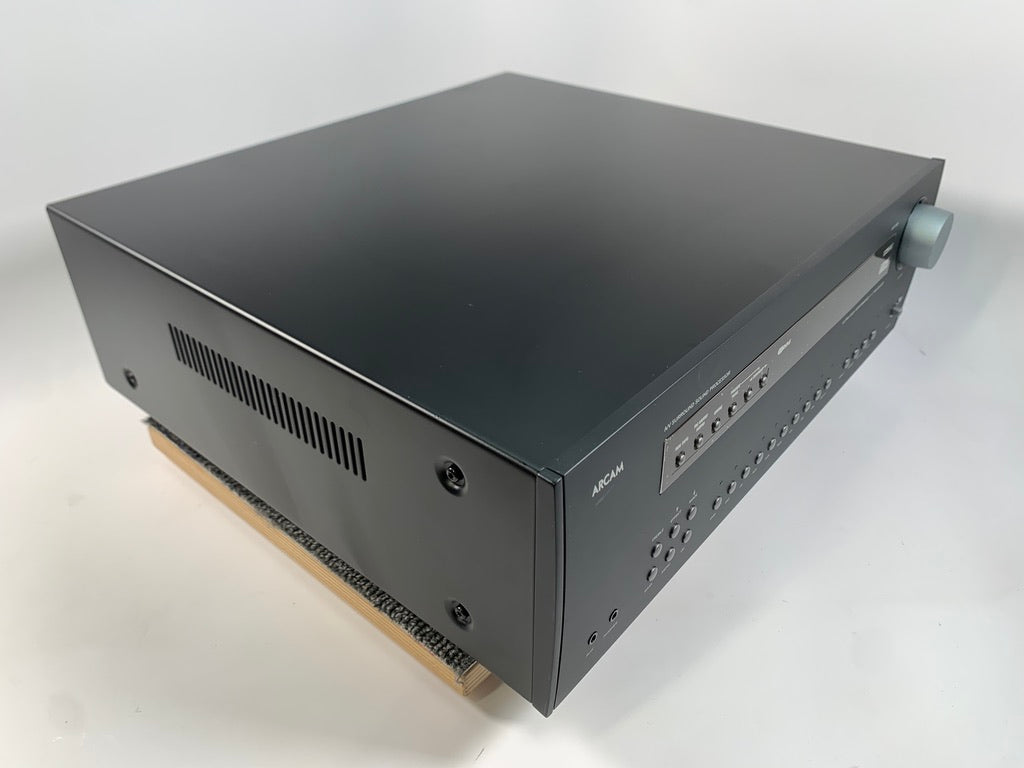

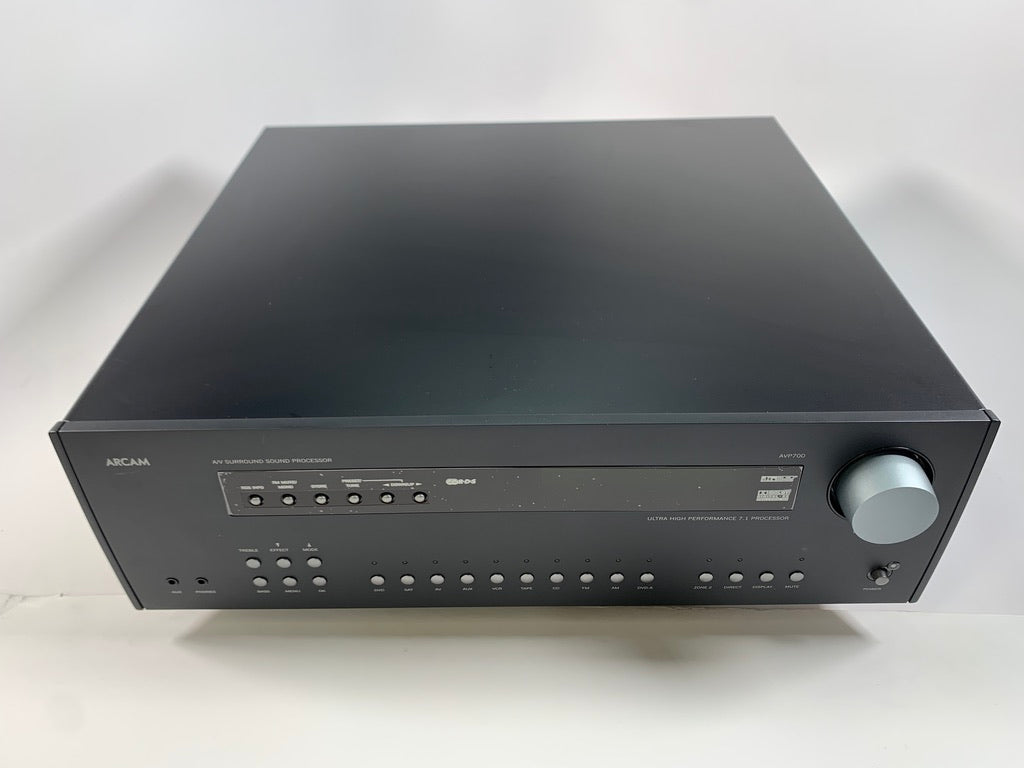

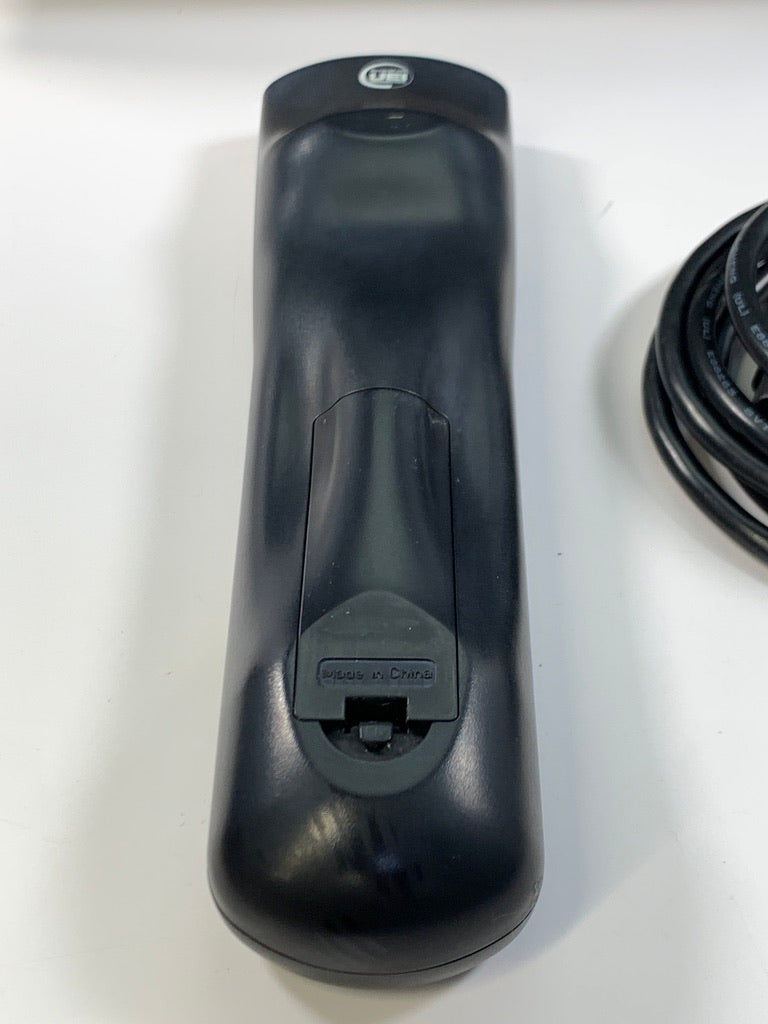

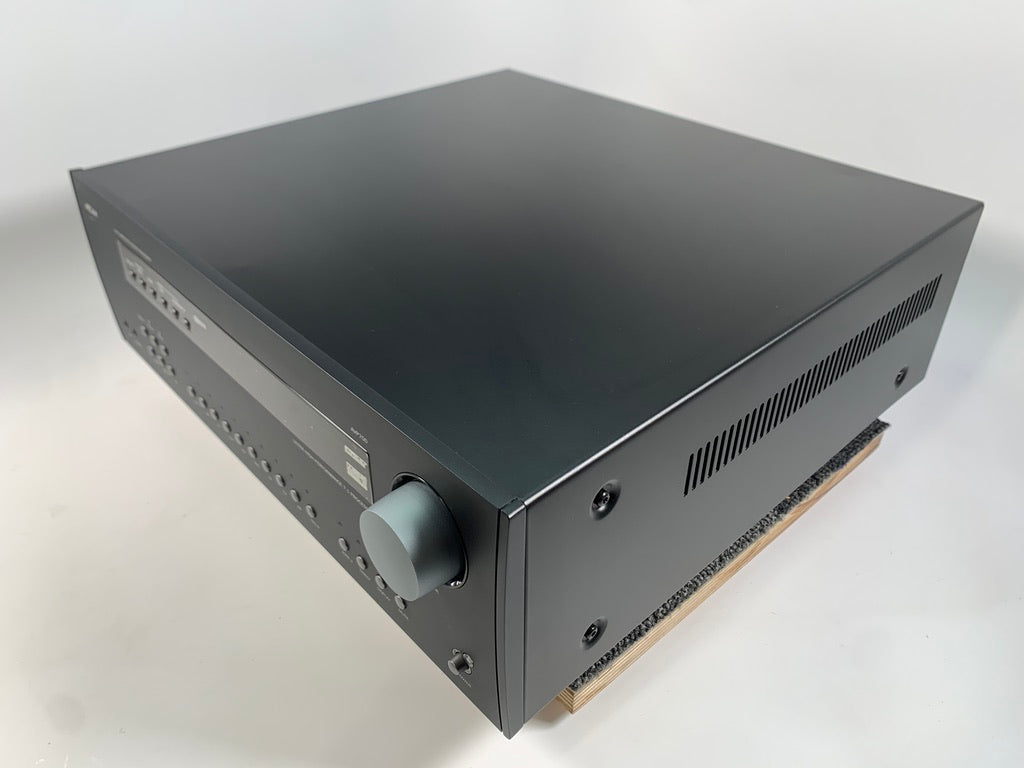

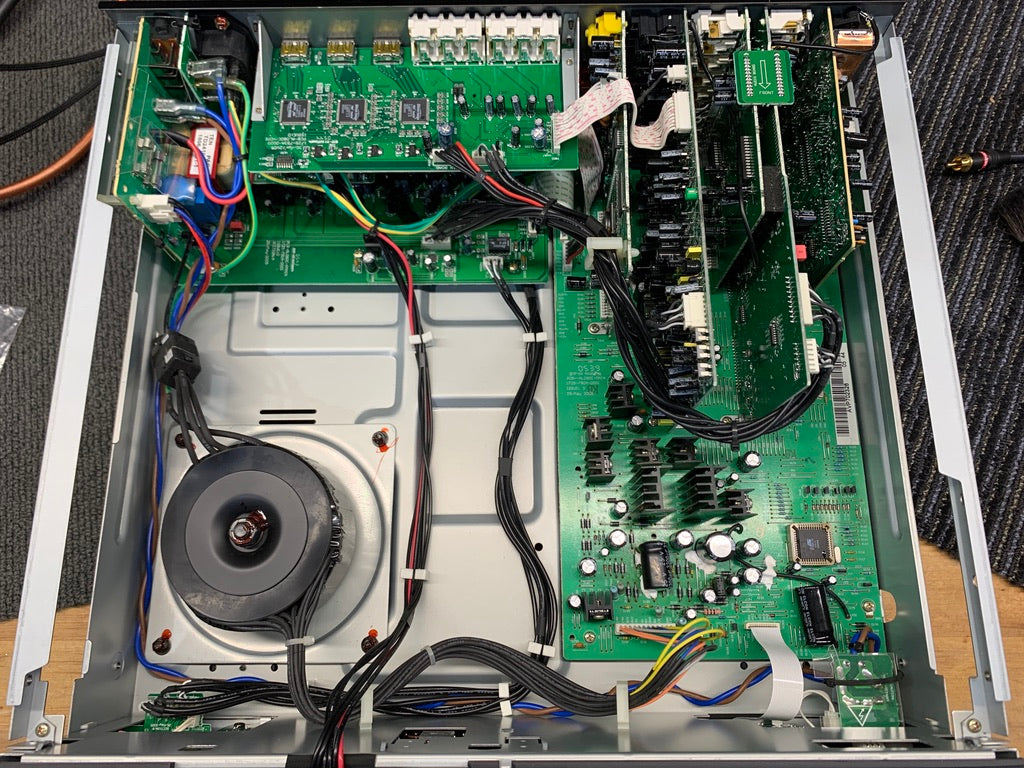

Here we have a superv sounding Arcam AVP 700 7.1 A/V Surround Processor Preamp w/Remote. This unit was acquired by us from the original owner, and is very clean, inside and out. The original protective film is still on the display screen. The Processor has been fully tested and is in perfect working order. The remote has been detailed, and there is no trace of corrosion in the battery compartment. There are a few light scuffs on the top of the cabinet, as well as on the left side of the cabinet.

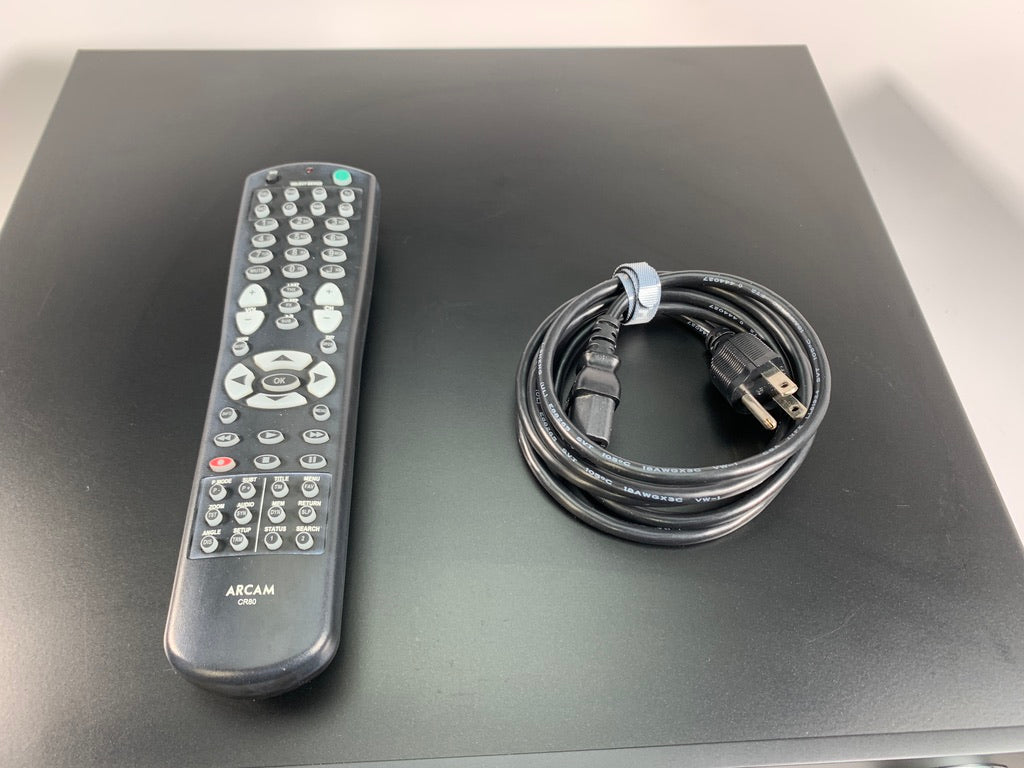

Included with the unit is the Remote, power cord, and a printed copy of the owners manual.
Free shipping to the lower 48 in the United States is included in the purchase price. We take packing what we sell seriously, the Preamp will be packed with great care using plastic wrap, polystyrene and a heavy duty box.
Specifications:
Analogue audio
- Audiophile quality components for best sound quality, including 1% metal film resistors, polypropylene film capacitors, OSCON electrolytic capacitors & double sided, through-plated fiberglass circuit boards

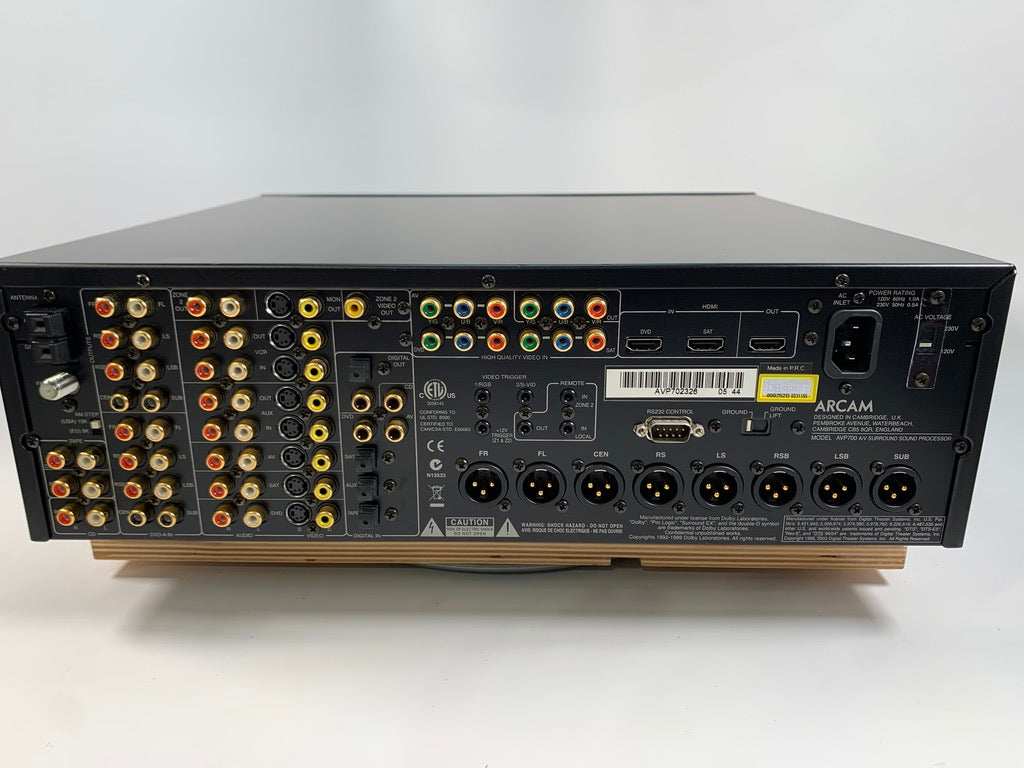

- Balanced & Unbalanced pre amp outputs for all 7 channels and subwoofer
- Multi-channel 7.1 analogue input for DVD-A or SACD sources
- Stereo direct switch bypasses and disables all digital processing for 2 channel analogue sources
- 7 stereo analogue inputs (plus tuner); 3 tape outputs (one a tape loop)
- Zone 2 stereo audio, from stereo analogue inputs or internal tuner. Source and volume control independent from main outputs
- Built in FM/AM RDS stereo tuner with 30 FM and 16 AM presets
Digital audio
- State of the art Crystal Semiconductors CS49400 DSP, with 24-bit fixed point double precision Dolby Digital and DTS decoding and 32-bit fixed point double precision bass management. 4 layer PCBs
- Wolfson Microelectronics 24-bit 192kHz DACs, stereo ADC and precision electronic volume controls
- Decodes Dolby Digital EX, Dolby Pro Logic IIx (including full music mode support), DTS 96/24, DTS-ES Discrete and Matrix 6.1, DTS Neo 6
- 6 Arcam-optimized surround effects modes for 2 channel sources
- Adjustable crossover switching from 40 – 130 Hz in 10 Hz steps
- Separate sub woofer level settings for film and stereo listening
- Bass and treble equalizers, both global and for each of 7 main channels
- 6 fully assignable digital inputs, 3 co-axial, 3 optical; 1 coaxial & 1 optical output
- Assignable global audio delay, adjustable from 0 – 220 milliseconds, to compensate for video processing delays in digital displays or DVD players
Video
- 2-way HDMI switching, HDCP compatible
- 5 composite and 5 S-video inputs; 3 fully buffered outputs of each type
- 3x HDTV compatible component video inputs and 1 monitor output (these may alternatively be configured to support RGB, with sync on composite video, for use in European TV systems
- Video up conversion – composite to S-video and vice versa via the monitor outputs; composite and S-video to interlaced component video
- Video up conversion to RGB with sync on composite (SCART compatible) for European TV displays. 12V triggers support S-video, RGB and widescreen switching for SCART equipped TVs.
- Composite and S-video inputs assignable to “non video” audio inputs
- High quality (component / RGB) inputs each assignable to any audio input
- Zone 2 composite video output, from composite video inputs
Custom install features
- Independent Zone 2 (audio + video), with fixed/variable volume & parental access control to sources
- Duplex RS-232 control; also suitable for system software updates
- RC-5 remote input jacks for both zones
- IR pass through for source components
- Full suite of discrete IR RC-5 codes, including separate on / off etc
- 12 Volt triggers, on/off for zones 1 and 2 and either SCART control (video in RGB mode) or on / off and video signal sensing (component video mode)
General
- Supplied with back-lit CR80 learning remote control with support for up to 7 other components
- Large, clear 12 character dimmable VFD front panel display
- Ground lift switch ; User switchable between 120 and 230 Volt mains supplies
- Size – 430mm wide, 433mm deep, 145mm high
